PCE INSTRUMENTS anemometer details

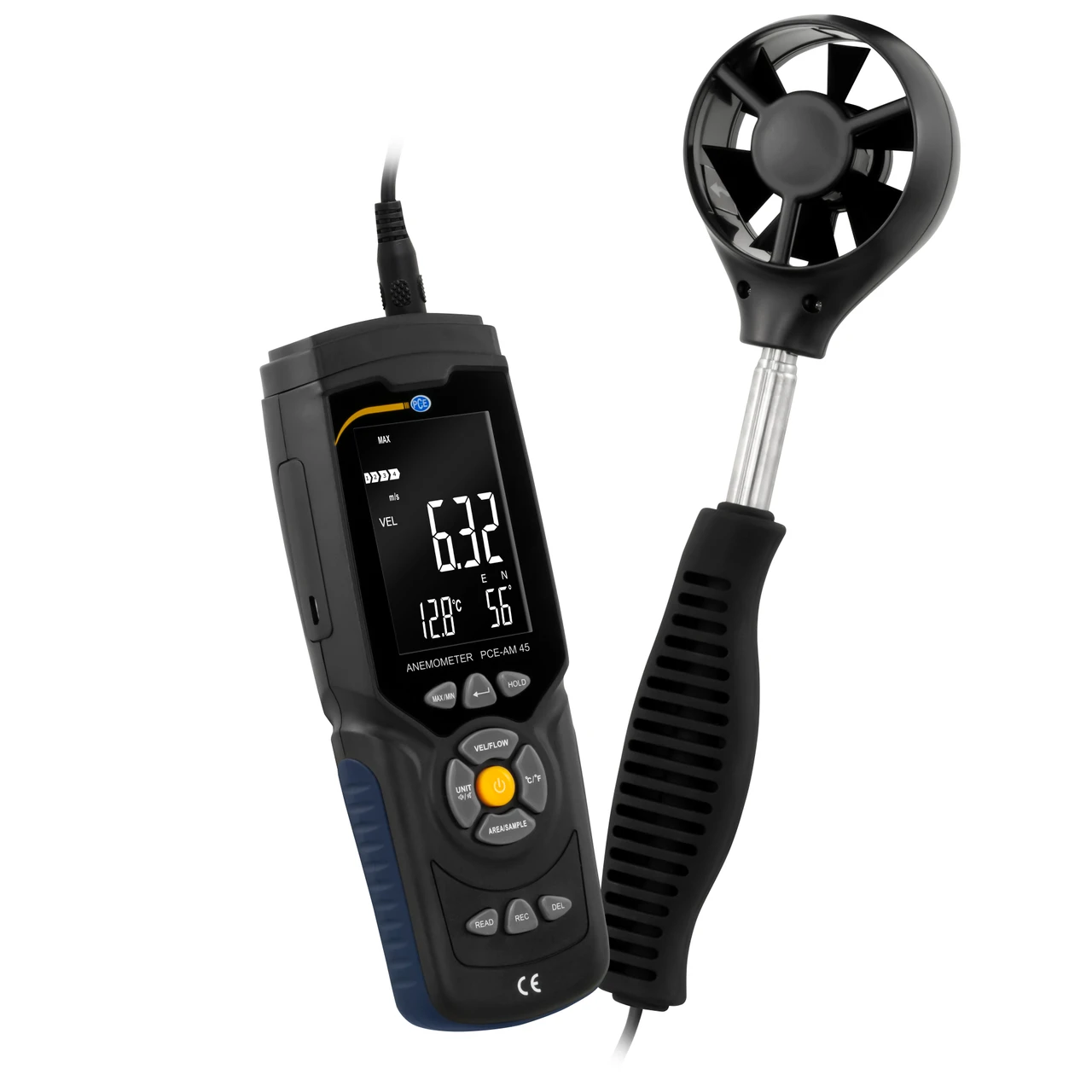

PCE Instruments Multifunction Anemometer (PCE-AM 45)
PCE Instruments Multifunction Anemometer (PCE-AM 45) is a professional-grade device designed for precise measurement of wind speed, volume flow, temperature, and humidity. With an easy-to-read display and multiple measurement units, this anemometer is ideal for use in HVAC, environmental monitoring, and industrial applications.
Featuring a telescopic probe and an integrated gyroscope, this anemometer allows wind speed and direction detection with pinpoint accuracy. The built-in data memory can store up to 960 measured values, which can be transferred to a PC via micro USB.
Specifications and Dimensions
Wind Speed Measurement: 0.3 to 45.0 m/s (60 to 8800 ft/min, 0.6 to 88.0 knots, 1.0 to 140.0 km/h, 0.7 to 100 mph)
Accuracy: ±3% ±0.1 m/s
Temperature Range: 0 to 45 °C (32 to 113 °F)
Humidity Measurement: 10% to 90% r.H.
Volume Flow Measurement: 0 to 999900 m³/min (CMM) / 0 to 999900 ft³/min (CFM)
Wind Direction: 0 to 360°
Telescopic Probe Length: 270 to 540 mm (10.6 to 21.3 inches)
Display: LCD with backlight
Power Supply: 4 x 1.5 V AAA batteries
Data Memory: Stores up to 960 readings
Interface: Micro USB
Protection Class: IP20
Device Dimensions: 70 x 194 x 35 mm (2.7 x 7.6 x 1.3 inches)
Weight: 400 g (14.1 oz)
Key Features and Benefits
Measures wind speed, direction, temperature, humidity, and volume flow
Telescopic probe extends for hard-to-reach areas
Real-time data logging with PC connectivity via micro USB
Adjustable display with multiple unit options
Integrated Beaufort scale for wind strength classification
Backlit LCD screen for visibility in all lighting conditions
Battery-powered for convenient mobile use
1 x Multifunction Anemometer PCE-AM 45
1 x Micro USB Cable
1 x Transport Case
4 x 1.5 V AAA Batteries
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-AM 45
