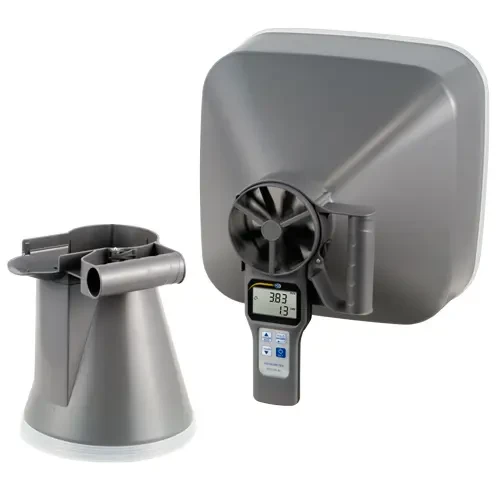

PCE Instruments Multifunction Air Flow Meter with Capture Hoods (PCE-VA 20-SET)
PCE Instruments Multifunction Air Flow Meter with Capture Hoods (PCE-VA 20-SET) is a professional measuring device designed for assessing HVAC systems, air flow velocity, volume flow, temperature, and humidity. It is ideal for heating, ventilation, and air conditioning applications.
Equipped with a 10 cm (3.9") fan impeller and an easy-to-read backlit LCD, this meter provides precise real-time measurements. The included capture hoods allow for direct airflow analysis from ducts and vents, making it a vital tool for air quality monitoring and HVAC system optimization.
Specifications and Dimensions
Air Flow Velocity Range: 0.2 … 30 m/s (39.4 … 5905.5 fpm)
Air Velocity Accuracy: ±(1.5% of reading + 0.3 m/s) for <20 m/s, ±(3% of reading + 0.3 m/s) for >20 m/s
Air Temperature Range: -20 … 60 °C / -4 … 140 °F
Air Temperature Accuracy: ±0.6 °C
Humidity Measurement Range: 0.1 … 99.9% r.H.
Humidity Accuracy: ±3% r.H. (at 25°C / 77°F, 10-90% r.H.), ±5% outside this range
Dew Point Temperature Display: -5 … +59.9°C / 23 … 139.8°F
Wet Bulb Temperature Display: -20 … +59.9°C / -4 … 139.8°F
Volume Flow Measurement: 0 … 99999 m³/min
Display: Backlit LCD (32.5 x 54 mm / 1.28 x 2.13")
Power Supply: 4 x 1.5V AAA batteries
Operating Conditions: 0 … +50°C / 32 … 89.6°F, <80% r.H.
Storage Conditions: -10 … +50°C / 14 … 89.6°F, <90% r.H.
Dimensions: 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0"
Weight: Approx. 200 g / 7 oz
Key Features and Benefits
Measures air velocity, volume flow, temperature, and humidity
Includes two capture hoods for direct air flow measurement
Large backlit LCD for easy readability in dim environments
Auto shutoff, hold function, and max/min value recording
10 cm (3.9") fan impeller for precise airflow analysis
Ideal for HVAC system testing, ventilation monitoring, and industrial applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-VA 20-SET
