Photometer details

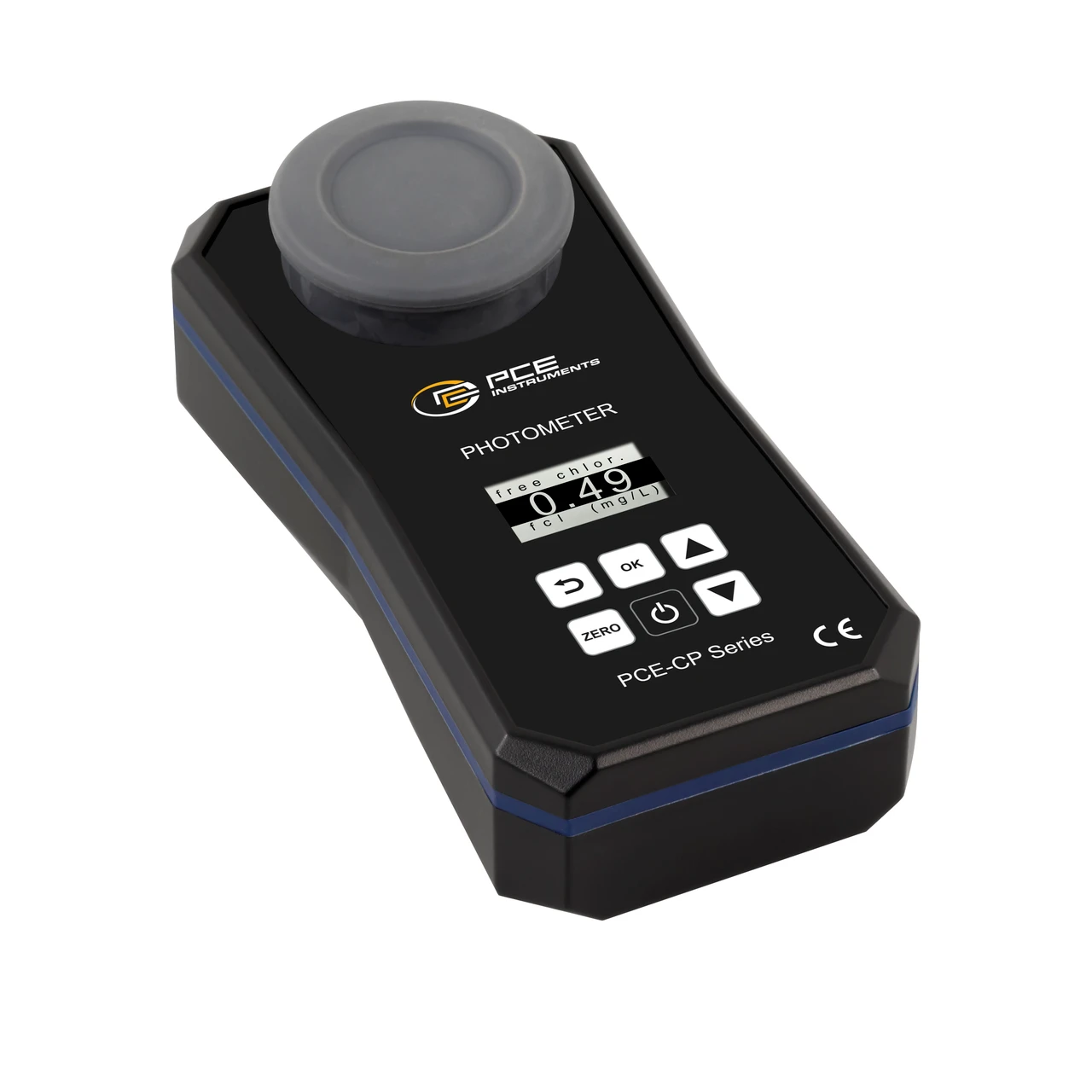

PCE Instruments Multi-Parameter Photometer with Bluetooth Interface (PCE-CP 10)
PCE Instruments Multi-Parameter Photometer with Bluetooth Interface (PCE-CP 10) is a portable, high-precision device designed for liquid analysis. It measures key water quality parameters, including pH, alkalinity, chlorine, and cyanuric acid, using LED-based photometry.
Equipped with Bluetooth connectivity, this photometer allows seamless data transfer to a mobile app or PC software for real-time analysis and cloud synchronization. With automatic data storage and a user-friendly multi-language interface, this device simplifies water quality monitoring.
Specifications and Dimensions
Measurement Parameters: pH, alkalinity, chlorine, cyanuric acid
Light Source: 503 nm / 570 nm / 620 nm LED
Light Detector: Photodiode
Calibration: Zero-point calibration
Data Storage: 256 values
Interface: Bluetooth connection with app and PC software
Automatic Shutdown: After 300 seconds of inactivity
Power Supply: 4 x 1.5V AA batteries
Operating Conditions: 5 – 45°C, 20 – 90% RH non-condensing
Storage Conditions: 5 – 45°C, 20 – 90% RH non-condensing
Dimensions: 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight: 230 g / < 1 lb
Measurement Ranges and Accuracy
Measuring Range: 0 – 200 mg/L
Accuracy: 3 – 18 mg/L
Resolution: 1 mg/L
Measuring Range: 0.00 – 8.00 mg/L
Accuracy: 0.10 – 1.00 mg/L
Resolution: 0.01 mg/L
Measuring Range: 0 – 160 mg/L
Accuracy: 1 – 19 mg/L
Measuring Range: 6.50 – 8.40 pH
Accuracy: 0.11 pH
Resolution: 0.01 pH
Key Features and Benefits
Measures up to five essential water quality parameters
Bluetooth connectivity for wireless data transfer
Automatic measurement storage for easy tracking
Supports cloud-based synchronization for remote access
Multi-language interface for user-friendly operation
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CP 10
