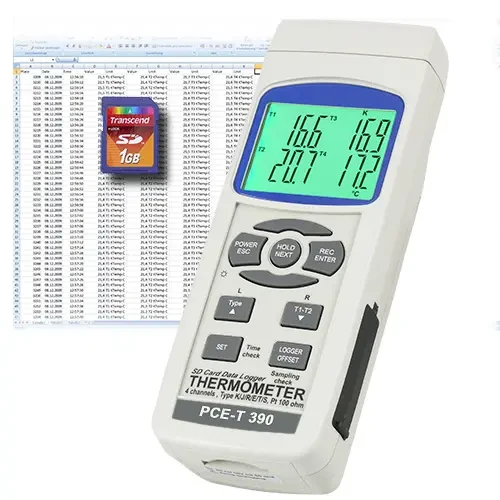

PCE Instruments Multi-Channel Temperature Data Logger with SD Card Storage (PCE-T390)
PCE Instruments Multi-Channel Temperature Data Logger (PCE-T390) is a powerful temperature monitoring device with four input channels for type K and type J thermocouples and two additional channels for PT100 sensors. This temperature data logger features an SD card slot for easy data storage in .xls format, eliminating the need for additional software.
It supports real-time monitoring and data transfer via an optional RS-232 interface. Designed for industrial applications, maintenance, and quality control, it provides accurate temperature readings and logging over extended periods.
Specifications and Dimensions
Measuring Range:
Type K: -100 … 1370°C / -148 … 2498°F
Type J: -100 … 1150°C / -148 … 2102°F
PT100: -200 … 850°C / -328 … 1562°F
Type K & J: 0.1°C (-100 … 1000°C) / 1°C (1000 … 1370°C)
PT100: 0.1°C (-200 … 850°C)
Accuracy: ±(0.4% + 1°C)
Sampling Interval: Adjustable (1 … 3600 seconds)
Data Storage: SD card (1 … 16 GB)
Power Supply: 6 x 1.5V AA batteries or optional 9V AC adapter
Display: 2 x 1.5 in LCD with backlight
Auto Power-Off: After 30 minutes of inactivity
Operating Conditions: 0 … 50°C / 32 … 122°F, <85% RH
Dimensions: 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight: 278 g / <1 lb
Key Features and Benefits
4 input channels for type-K and J thermocouples
2 input channels for PT100 temperature sensors
Data logging capability with SD card storage
Real-time data monitoring via RS-232 (optional)
Large LCD screen displaying up to 4 channels at once
Automatic power-off to conserve battery life
Portable design for field and industrial applications
Supports both battery and AC power operation
1 x Multi-Channel Temperature Data Logger PCE-T390
2 x Type-K Sensors TF-500
6 x 1.5V AA Batteries
1 x SD Memory Card
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-T390
