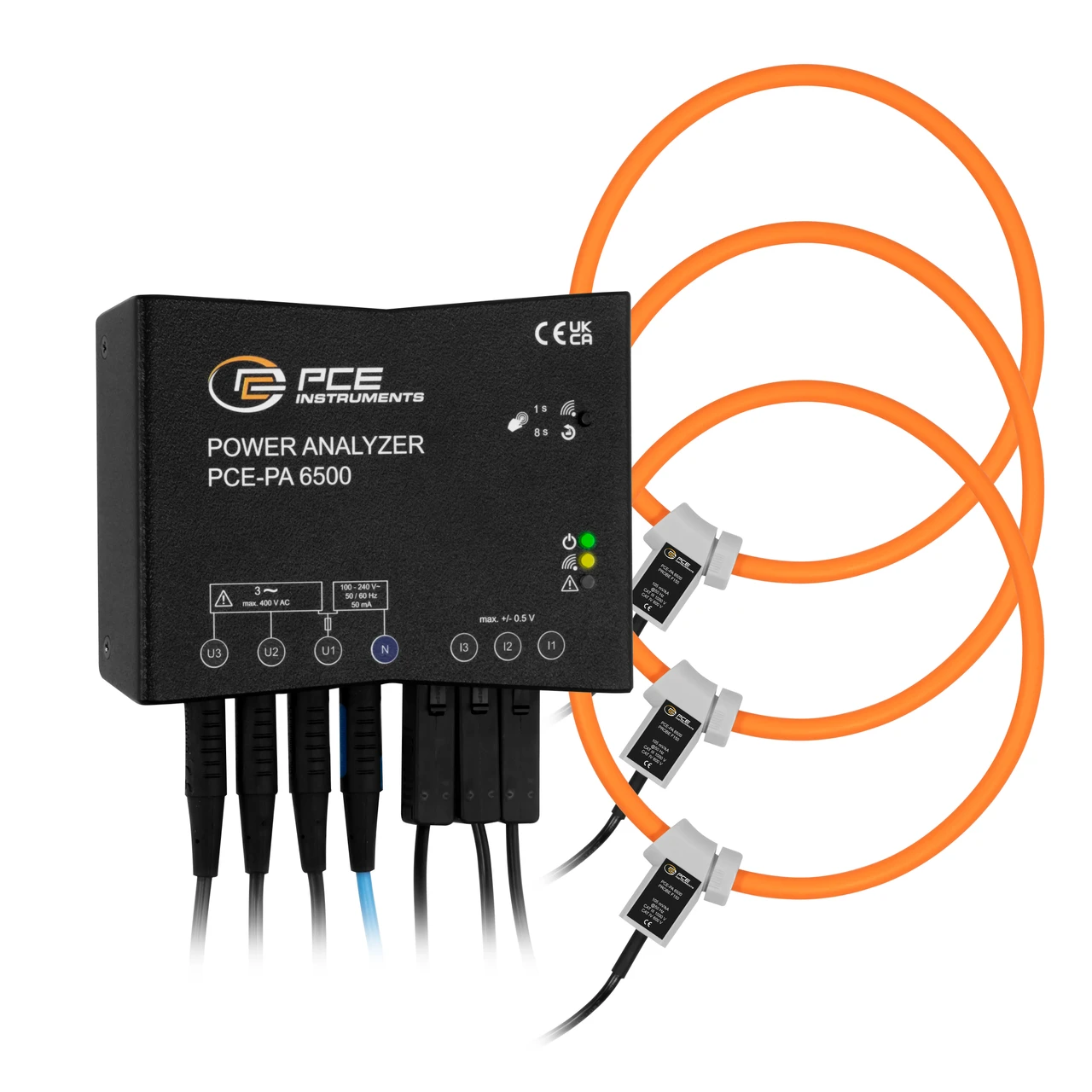

PCE-PA 6500 F150 Power Monitor with Rogowski Coils
The PCE-PA 6500 F150 package uses flexible Rogowski coils for power monitoring around larger conductors. Its 149mm maximum cable diameter differentiates the sensor package from smaller-aperture versions, while electrical range and installation requirements remain separate checks.
Specifications and included details
- AC voltage 40–400V and AC current 3–4800A listed.
- 149mm maximum cable diameter identified.
- Active, reactive and apparent power monitoring with 32GB internal storage.
- Three Rogowski coils, four 2m leads and magnetic adapters listed.
Before ordering
Confirm conductor fit, sensor arrangement and permitted installation category with the manual. Storage intervals from one second to sixty minutes differ from the instrument's internal measuring rate. Follow the required 100–240V supply and connection instructions.
Product questions and answers
Is the 149mm limit an electrical current rating?
No. It describes conductor fit; current range is a separate specification.
Does the internal measuring rate describe CSV logging intervals?
No. The listed logging interval is adjustable from one second to sixty minutes.
Is this a battery-only handheld clamp meter?
No. The monitor package lists an external 100–240V supply specification and separate sensors.
