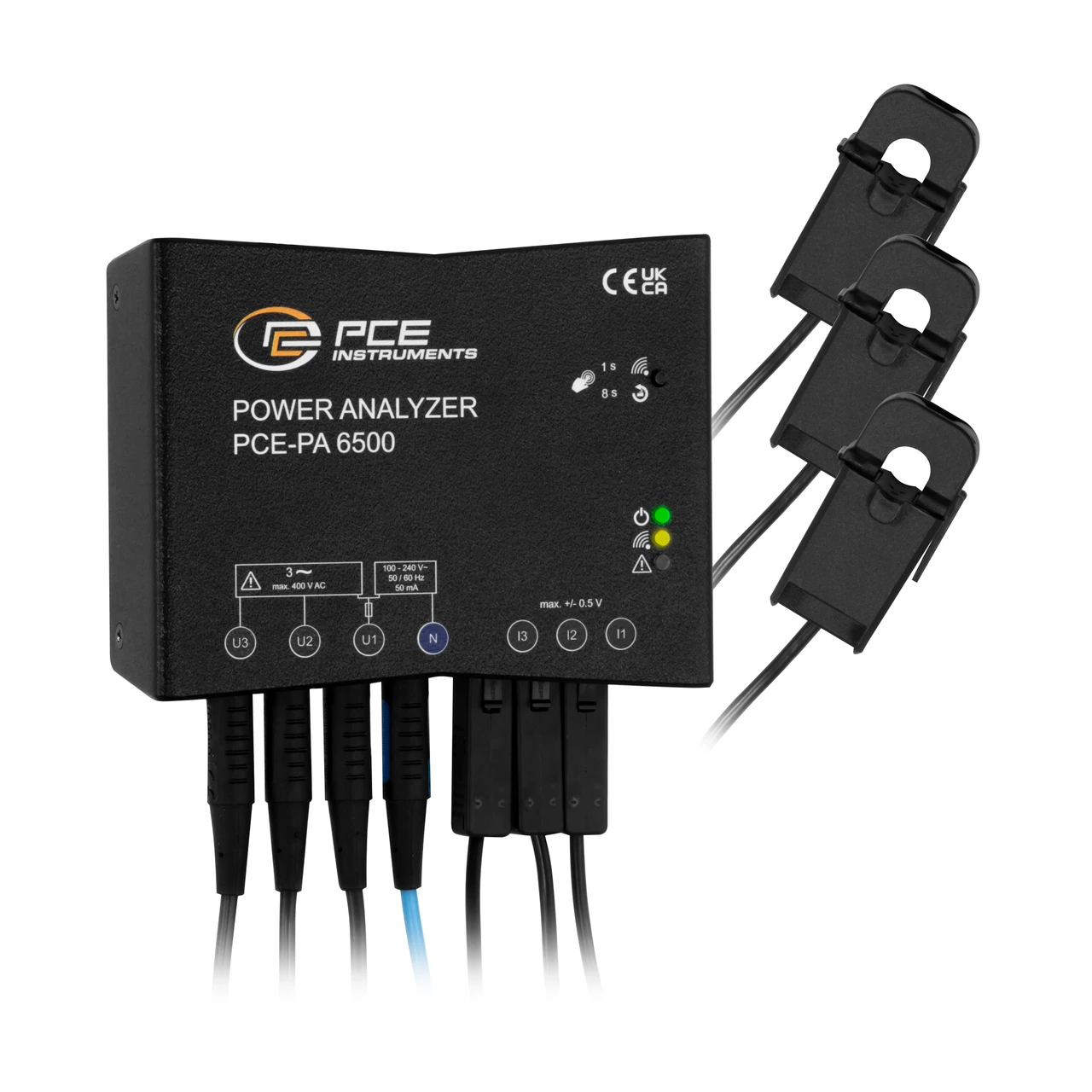

PCE Instruments Monitoring Meter, 10 mm Maximum Cable Diameter (PCE-PA 6500 R11)
PCE Instruments Monitoring Meter, 10 mm Maximum Cable Diameter (PCE-PA 6500 R11) is a precision tool designed to measure and monitor electrical power parameters in real time. This device supports active, apparent, and reactive power calculations, making it ideal for energy monitoring in industrial and commercial environments.
Using Rogowski coils and folding current transformers, the power meter provides accurate readings for voltage, current, and frequency. It offers seamless data transmission and remote access through a web browser or mobile app. This allows for effortless integration into existing monitoring systems.
Specifications and Dimensions
AC Voltage Measurement Range: 40 … 400 V
Resolution: 0.01 V
AC Current Measurement Range: 0 … 80 A
Active Power Measurement Range: 0 W … 32 kW
Reactive Power Measurement Range: 0 VAR … 32 kVAR
Apparent Power Measurement Range: 0 VA … 32 kVA
Power Factor Range: 0 … 1
Data Storage Capacity: 32 GB
Measuring Rate: 26000 Hz
Maximum Cable Diameter: 10 mm
Operating Temperature: -5 … 40 °C
Power Supply: 100 … 240 V 50/60 Hz (+/- 10%)
Device Dimensions (L x W x H): 123 x 96 x 36 mm
Key Features and Benefits
Measures active, apparent, and reactive power
Power factor and energy consumption analysis
Wi-Fi connectivity for remote monitoring
Built-in 32 GB memory for offline data storage
Supports CSV file export for further data analysis
Works with Rogowski coils for flexible measurement
App control available for Android devices
Magnetic measuring tips for secure installation
No additional power source required
1 x PCE-PA 6500 R11 Power Indicator
4 x Test Leads (Blue, Brown, Black, Grey) 2 m
3 x Rogowski Coils
3 x Magnetic Measuring Adaptors 6.6 mm
1 x Blue Crocodile Clip
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PA 6500 R11
