PCE INSTRUMENTS moisture meter details

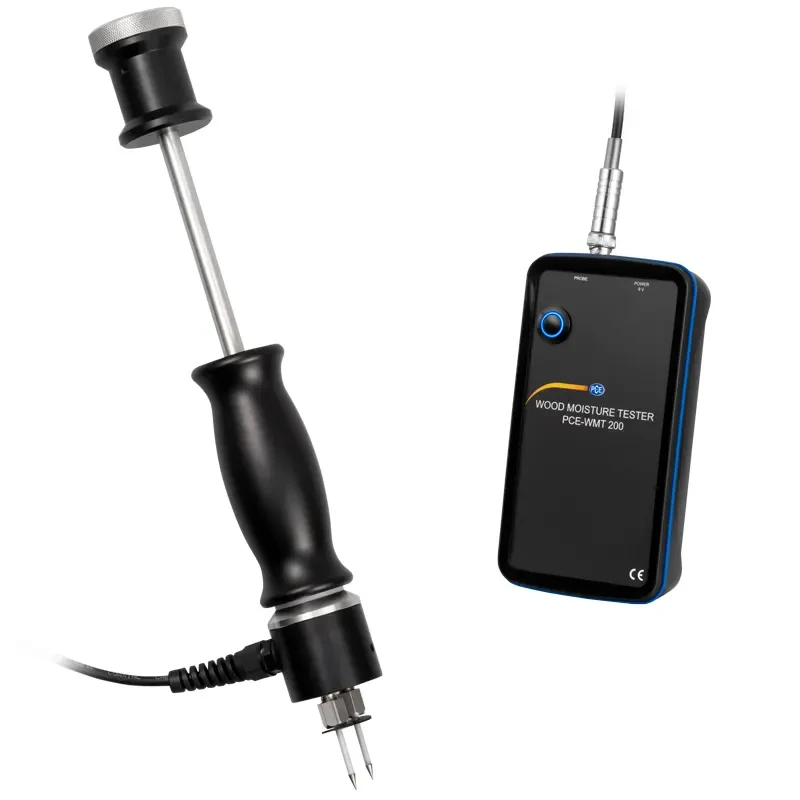

PCE Instruments Moisture Meter with Bluetooth and Temperature Compensation (PCE-WMT 200)
PCE Instruments Moisture Meter (PCE-WMT 200) is a high-precision device designed for measuring moisture levels in various wood types. With Bluetooth 4.0 connectivity and temperature compensation, this meter ensures accurate results for professionals in woodworking, construction, and forestry.
Capable of analyzing 44 different wood types, including hardwoods and softwoods, the PCE Instruments Moisture Meter offers a measuring range of up to 150% moisture content. The device features a ram electrode for easy penetration, along with different pairs of needles to accommodate various wood densities.
Specifications and Dimensions
Moisture Range: 6.1% – 150% (depending on wood type)
Wood Types: 36 hardwoods, 8 softwoods
Temperature Compensation: -20°C to 50°C (-4°F to 122°F)
Measurement Principle: Electrical resistance
Penetration Depth: Up to 150 mm with extended needles
Display: Digital with Bluetooth data transmission
Power Supply: 9V block battery or 9V DC adapter
Protection Class: IP52
Device Dimensions: 175 x 90 x 35 mm / 6.9 x 3.5 x 1.4 in
Ram Electrode Dimensions: 332 x Ø45 mm / 13.1 x Ø1.8 in
Weight: 3.7 lbs (ram electrode), 0.6 lbs (measuring device)
Key Features and Benefits
Measures moisture levels in hardwoods and softwoods with high accuracy
Bluetooth 4.0 connectivity for wireless data transfer
Temperature compensation for improved measurement precision
Ram electrode with interchangeable needle pairs for various applications
Measures moisture up to 150% in relation to dry matter
Data can be exported in CSV and PDF formats
IP52-rated design for durability in various environments
1 x PCE-WMT 200 Moisture Meter
1 x Pair of needles (165 x Ø2.85 mm)
2 x Pair of needles (45 x Ø3.05 mm)
1 x Pair of isolators
1 x Power supply
1 x 9V block battery
1 x Transport case
1 x Quick start guide
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-WMT 200
