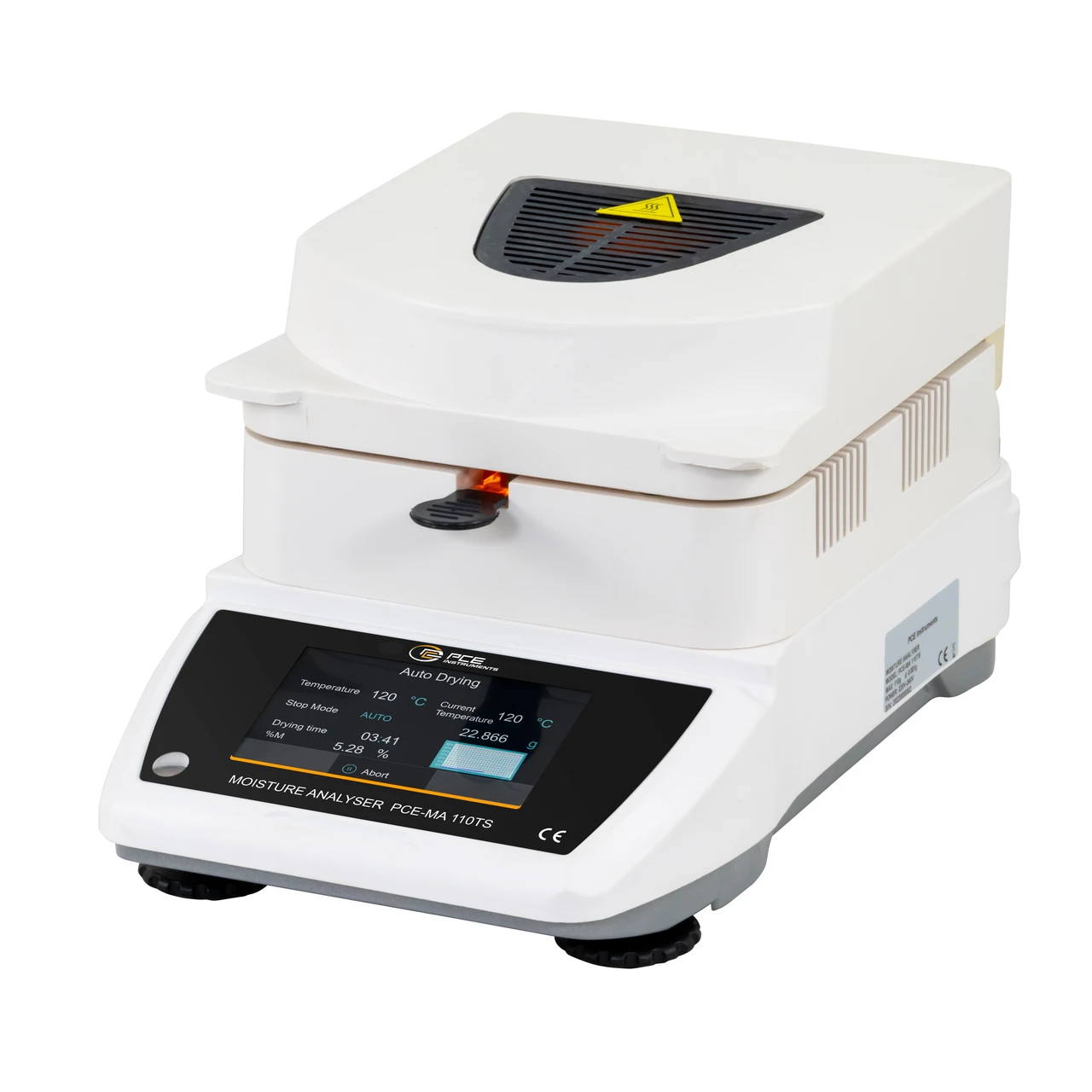

PCE Instruments Moisture Analyzer (PCE-MA 110TS)
PCE Instruments Moisture Analyzer (PCE-MA 110TS) is a precision instrument designed to measure moisture content ranging from 0 to 100%. Operated via a user-friendly 5" touchscreen, it ensures accurate readings with a resolution of 0.001 g. The built-in halogen lamp, measuring 90 mm in diameter, provides efficient heating within a temperature range of 40 to 165 °C.
Equipped with a memory capacity for 32 drying parameters, this analyzer allows for customized settings tailored to specific testing requirements. The RS-232 Modbus interface facilitates seamless data transfer to a PC for further analysis.
Specifications and Dimensions
Measuring Range: 0 … 110 g / 0 … 3.88 oz
Resolution: 0.001 g
Heating Element: Round halogen lamp, Ø 90 mm / 3.5"
Temperature Range: 40 … 165 °C / 104 … 329 °F
Moisture Display: 0 … 100%
Moisture Resolution: 0.01%
Memory: 32 drying parameters
Interface: RS-232
Display: 5" touchscreen
Power Supply: 220 … 240 V AC, 50 / 60 Hz
Power Consumption: 300 W
Dimensions: 370 x 215 x 195 mm / 14.5 x 8.4 x 7.6"
Weight: 4.5 kg / 9.9 lb
Key Features and Benefits
High precision with a resolution of 0.001 g ensures accurate moisture analysis.
Intuitive 5" touchscreen interface simplifies operation and parameter setting.
Halogen heating element provides rapid and uniform drying of samples.
Adjustable temperature range accommodates diverse sample types and testing needs.
Memory storage for 32 drying parameters allows for quick recall of frequently used settings.
RS-232 Modbus interface enables efficient data transfer for comprehensive analysis.
1 x Moisture Analyzer PCE-MA 110TS
1 x Sample Pan Holder
1 x 100 g Test Weight
1 x Sample Pan Handle
1 x Mains Power Cable
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-MA 110TS
