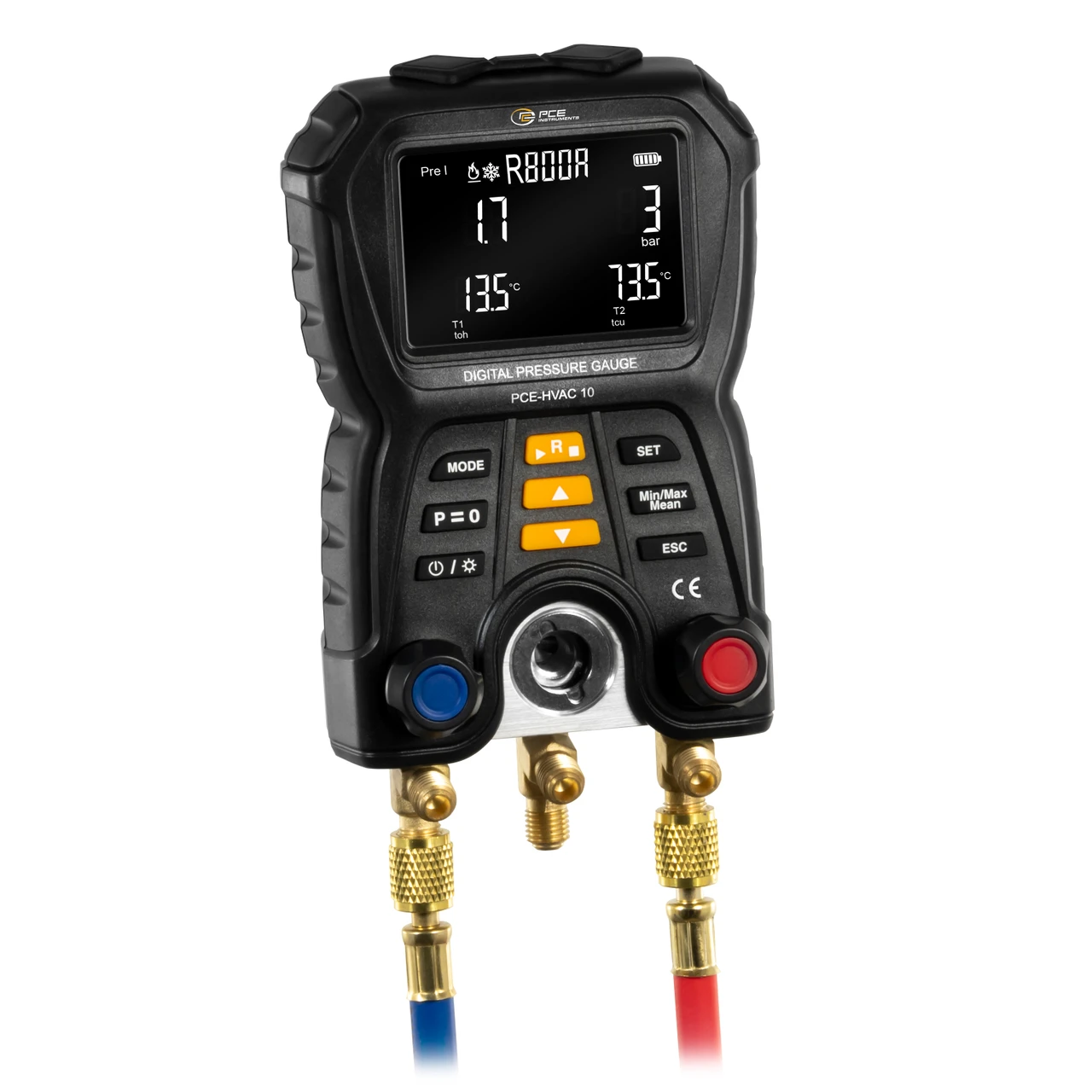

PCE Instruments Manifold Tester (PCE-HVAC 10)
PCE Instruments Manifold Tester (PCE-HVAC 10) is a reliable tool designed for measuring pressure and temperature in refrigeration systems and heat pumps. This robust HVAC meter is equipped with a 2-way valve block and 3 hose connectors, allowing for seamless operation and quick pressure readings.
The HVAC manifold tester supports 83 preloaded refrigerants, making it an ideal instrument for service and maintenance applications. It features an automatic heat pump mode, reducing the need to swap hoses during measurements.
Specifications and Dimensions
Temperature Measurement (NTC): -10°C … +200°C
Temperature Resolution: 0.1°C
Temperature Accuracy: ±(1°C + 1 Digit)
Pressure Measurement Range: -1 bar … +60 bar
Pressure Resolution: 0.01 bar
Pressure Accuracy: ±0.5% FS (Full Scale)
Units: MPa, kPa, psi, bar, °F, °C
Connection Type: 3 x 7/16" – UNF
Display Type: LCD
Automatic Shutdown: 30 min.
Measuring Medium: Refrigerant (see manual)
Battery Type: 4 x AA Battery (1.5V)
Menu Language: English
Protection Class: IP42
Device Weight: 768 g
Device Weight with Accessories: 2185 g
Dimensions: 204 x 116 x 65 mm (L x W x H)
Package Dimensions: 345 x 275 x 105 mm (L x W x H)
Refrigerant Hose Length: 0.8 m
Temperature Sensor Length: 0.8 m
Operating Conditions: 0°C … +45°C, +10% … 95% RH
Storage Conditions: -20°C … +60°C, +10% … 95% RH
Key Features and Benefits
Measures pressure from -1 to +60 bar with 0.01 bar resolution
Integrated 2-way valve block with 3 connection ports (7/16" – UNF)
Preloaded with 83 refrigerants for instant selection
Automatic heat pump mode reduces the need to switch hoses
LCD display for clear visibility of readings
Includes a hanging fixture for secure placement during use
1 x HVAC Meter PCE-HVAC 10
3 x Refrigerant Hoses (Red, Blue, Yellow)
2 x Clamp-On NTC Temperature Sensors
4 x 1.5V AA Batteries
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HVAC 10
