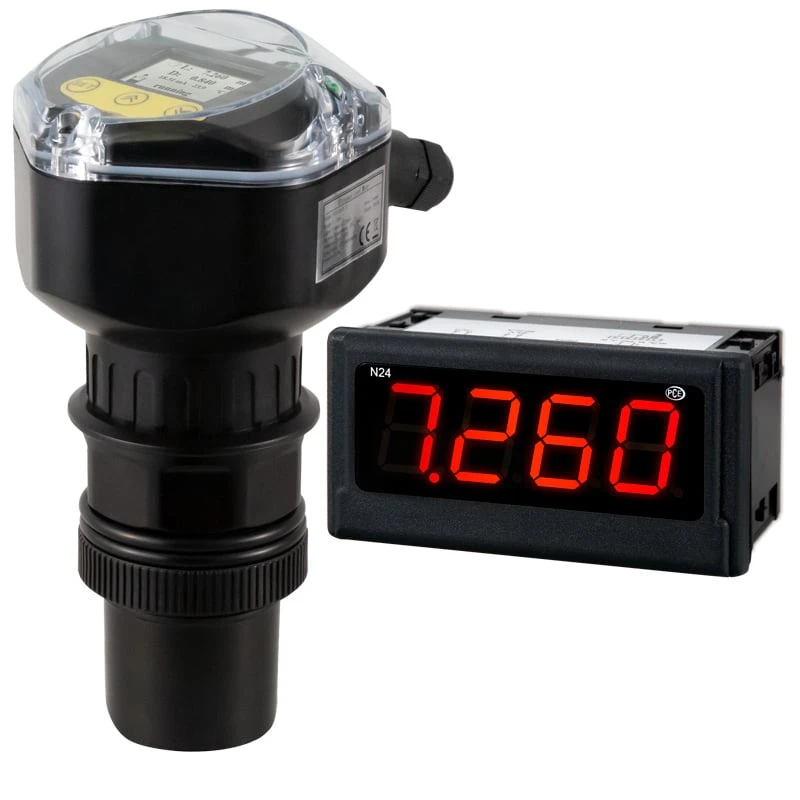

PCE Instruments Level Indicator with 10m Range (PCE-ULM-10-N24S)
PCE Instruments Level Indicator (PCE-ULM-10-N24S) is a high-precision device designed for monitoring fill levels in silos and tanks. Equipped with a 4-20mA output signal, it seamlessly integrates into process control systems, allowing for automated monitoring and data collection.
With a measuring range of up to 10 meters (32.8 ft), it is ideal for monitoring large storage systems. The included external digital display (PCE-N24S) allows process signal evaluation and configuration via software, making it a versatile tool for industrial applications.
Specifications and Dimensions
Measuring Range: 0 to 10 m / 0 to 32.8 ft
Resolution: 0.001 m
Minimum Distance to Wall: 1 m / 3.3 ft
Temperature Display Resolution: 0.1°C
Output Signal: 4-20mA
Output Signal Resolution: 0.01mA
Power Supply: 24V DC
Protection Class: IP66
Thread Type: M60 (connection), M18 x 1.5 (cable glands)
Environmental Conditions: -20 to 60°C / -4 to 140°F
Dimensions (L x W x H): 110 x 140 x 215 mm / 4.3 x 5.5 x 8.5 in
Weight: Approx. 825 g / 1.8 lbs
Key Features and Benefits
Accurate level measurement with a 10m range
Real-time monitoring with built-in display
4-20mA output for process control integration
External digital display (PCE-N24S) for enhanced readability
Configurable via software with PD14 programming adapter
High IP66 protection against harsh environmental conditions
Suitable for industrial applications and storage monitoring
1 x Level Indicator (PCE-ULM-10-N24S)
1 x Built-in Display (PCE-N24S)
4 x Mounting Hardware
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-ULM-10-N24S
