PCE INSTRUMENTS sound level meter details

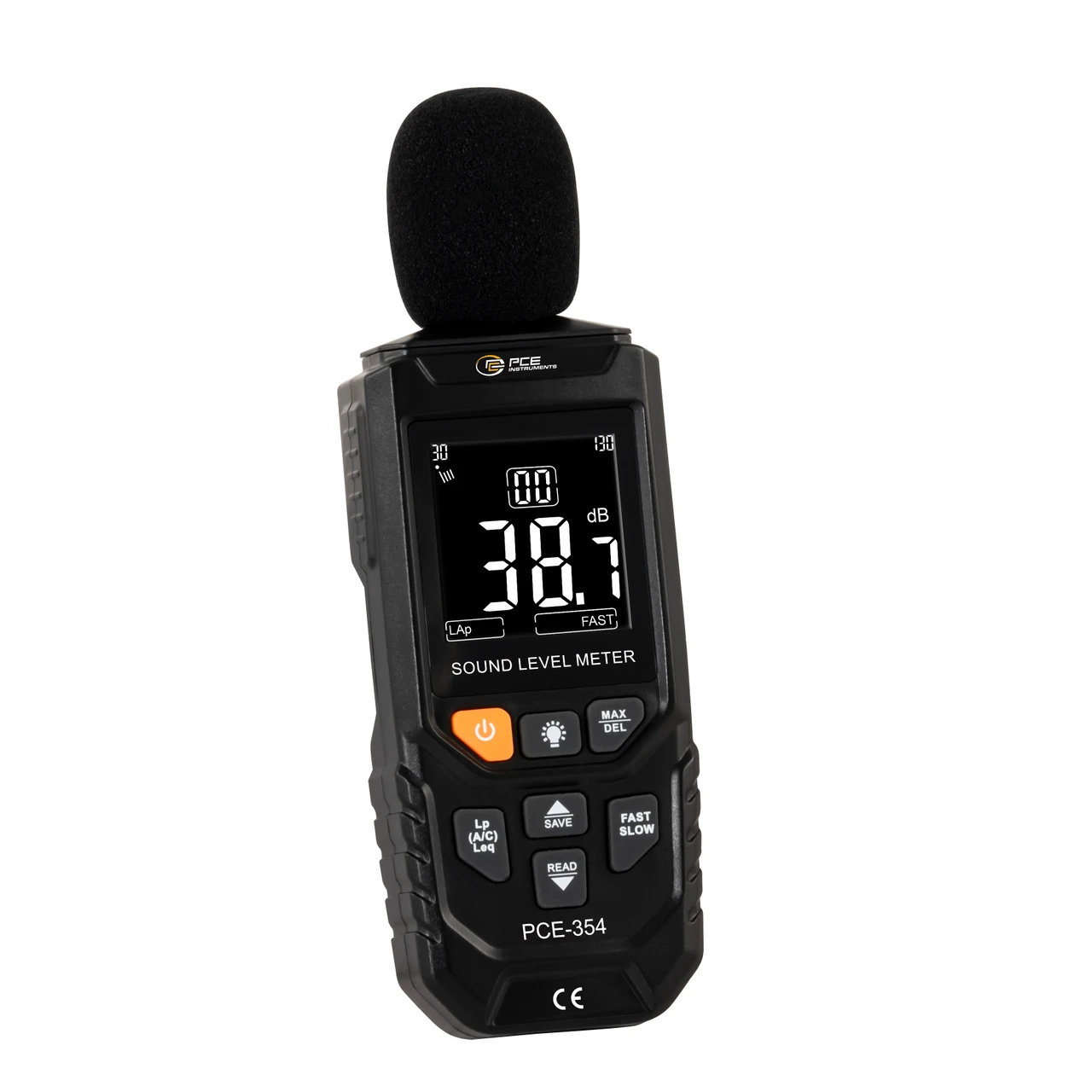

PCE Instruments LEQ Sound Level Meter (PCE-354)
PCE Instruments LEQ Sound Level Meter (PCE-354) is a compact yet powerful device designed for accurate noise level measurements in industrial, workplace, and environmental applications. It features Leq value calculation, peak measurement, and adjustable measuring ranges, making it ideal for monitoring noise exposure and ensuring compliance with safety regulations.
This class 2 sound level meter offers a memory function for 99 measured values, a backlit display for easy readability, and an automatic shutdown function to conserve battery life.
Specifications and Dimensions
Measuring Range: 30 dB … 130 dB
Resolution: 0.1 dB
Accuracy: ±1.5 dB
Frequency Range: 20 Hz … 12,500 Hz
Measurement Functions: Lpeak, Leq
Time Evaluation: Slow (1 sec.), Fast (125 ms)
Frequency Weighting: A, C
Display Type: LCD with backlight
Display Refresh Rate: 3 times per second
Memory Capacity: 99 measured values (manual storage)
Microphone Type: Electric condenser
Automatic Shutdown: 10 minutes of inactivity
Standards: Class 2
Power Supply: 3 x AAA batteries (1.5V)
Menu Language: English
Protection Class: IP20
Operating Conditions: 0 … 50°C, 10 … 95% RH
Dimensions: 177 x 60 x 35 mm
Key Features and Benefits
Accurate noise level measurement from 30 to 130 dB
Leq function calculates the equivalent continuous noise level
Peak measurement and MAX hold function for monitoring high noise levels
Adjustable measuring ranges with slow and fast time weighting
Backlit LCD display for easy readability in low-light conditions
Memory function for storing up to 99 measured values
Automatic shutdown after 10 minutes to preserve battery life
Compact and lightweight design for easy portability
1 x Sound Level Meter PCE-354
3 x AAA Batteries
1 x Instruction Manual
1 x Instrument Bag
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-354
