Stroboscope details

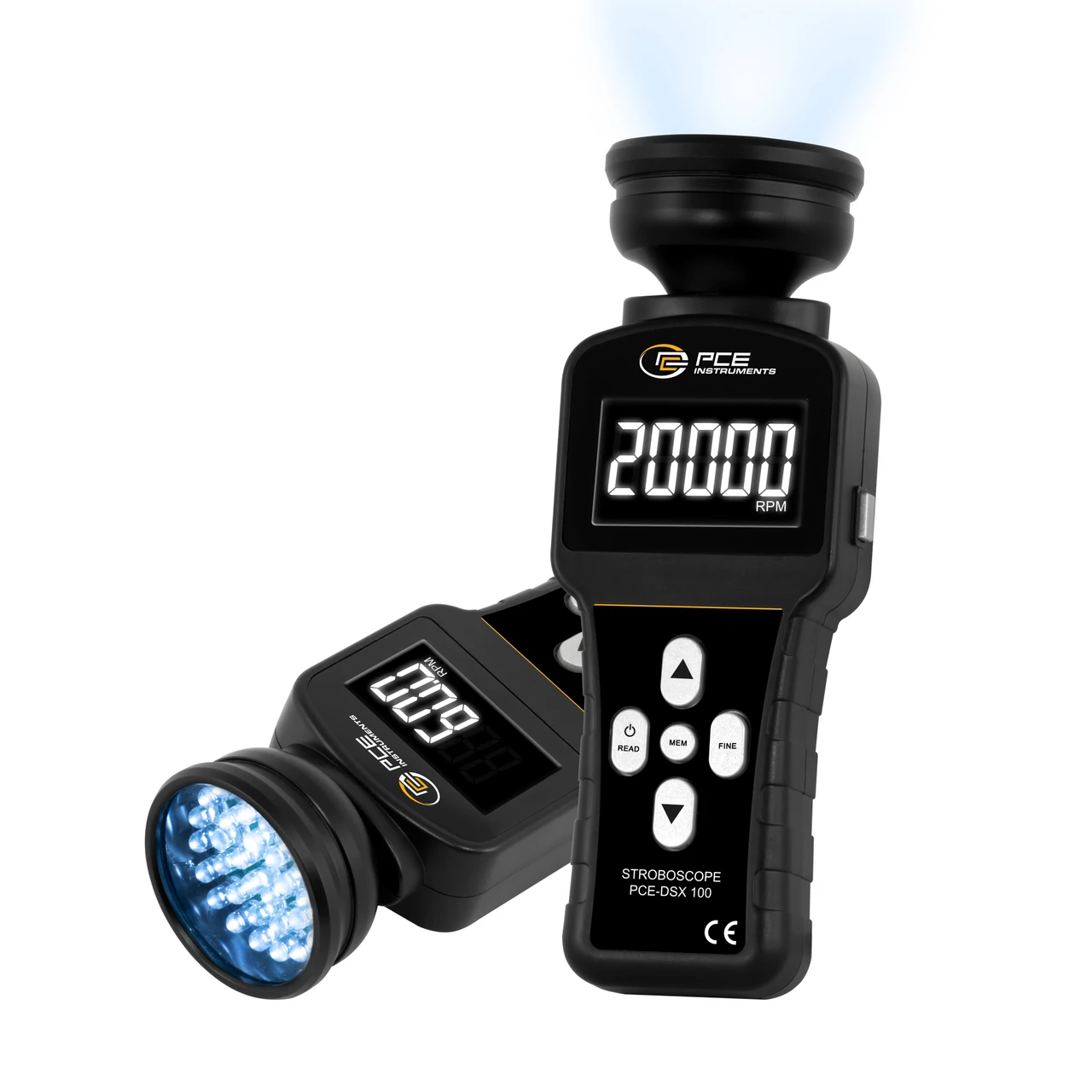

PCE Instruments LED-Stroboscope (PCE-DSX 100)
PCE Instruments LED-Stroboscope (PCE-DSX 100) is a precise tool for measuring rotational speed in moving objects. With a broad range from 60 to 20,000 RPM, it enables accurate speed detection and fault identification. The device is ideal for inspecting periodic movements in mechanical and industrial settings.
Featuring 36 bright LEDs, the stroboscope delivers clear illumination for optimal measurements. The fine and coarse adjustment settings allow precise speed control, while the internal memory stores up to 10 preset flash frequencies.
Specifications and Dimensions
Measuring Range: 60 … 999.9 RPM (Resolution: 0.1 RPM, Accuracy: 0.05%)
Measuring Range: 1000 … 20000 RPM (Resolution: 1 RPM, Accuracy: 0.05%)
Display Type: 2.1-inch LCD with illumination
Memory Capacity: Stores up to 10 values
Light Intensity: Approx. 1400 lx @20cm @10000 RPM
Light Source: 36 LEDs
Automatic Switch-Off: After 5 minutes of inactivity
Protection Class: IP20
Power Supply: 4 x 1.5V AA batteries
Dimensions: 180 x 68 x 56 mm
Operating Conditions: 0 … 50 °C, 10 … 85 % RH
Storage Conditions: 0 … 50 °C, 10 … 85 % RH
Key Features and Benefits
Accurate speed measurement with a wide range from 60 to 20,000 RPM
Fine and coarse adjustment for precise control (+0.1, +1, +10, +100 RPM)
Internal memory stores up to 10 preset flash frequencies
36 high-intensity LEDs provide clear and consistent illumination
1 x Stroboscope (PCE-DSX 100)
4 x 1.5V AA Batteries
1 x Operating Instructions
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DSX 100
