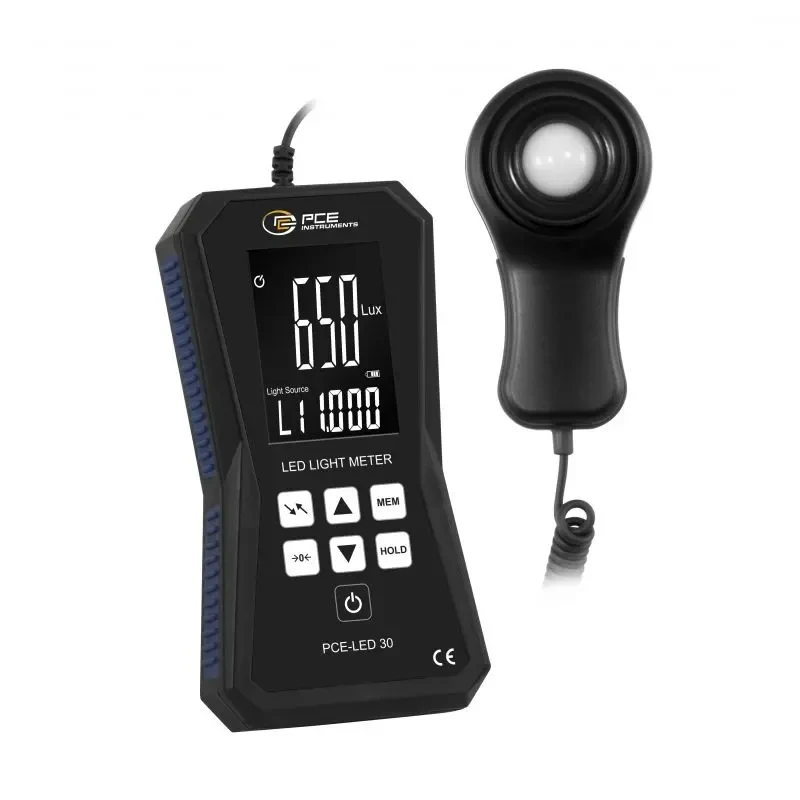

PCE Instruments LED Light Meter with External Sensor (PCE-LED 30)
PCE Instruments LED Light Meter (PCE-LED 30) is a highly accurate device designed for measuring light intensity in lux or footcandle. It features an external sensor with a 1.5-meter cable, allowing for flexible positioning in various environments such as offices, schools, and industrial spaces.
With automatic range selection, the PCE Instruments LED Light Meter provides reliable readings without manual adjustments. The device also includes a data hold function, zero adjustment, and memory storage for up to 99 values. This meter ensures compliance with industry standards.
Specifications and Dimensions
Measurement Units: Lux and footcandle
Measuring Range: 0 lx to 400,000 lx
Sensor Type: Silicone photodiode with built-in filter
Sensor Cable Length: 1.5 m / 4.9 ft
Measurement Rate: 2.5 readings per second
Memory Capacity: Stores up to 99 readings
Functions: MIN, MAX, AVG, HOLD
Zero Adjustment: Yes
Automatic Power Off: After 5 minutes (can be disabled)
Display: 2.8-inch LCD
Power Supply: 3 x 1.5V AA batteries
Device Dimensions: 166 x 90 x 36 mm
Weight: 311.5 g / 0.7 lbs
Key Features and Benefits
Measures LED and other visible light sources
Displays readings in lux or footcandle
Ergonomically shaped external sensor for easy positioning
Auto-ranging for quick and efficient readings
MIN, MAX, and AVG functions for comprehensive analysis
Protective cap extends sensor life
Battery-powered handheld device for portability
Compliance with JIS C1609:1993 and CNS 5519 standards
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LED 30
