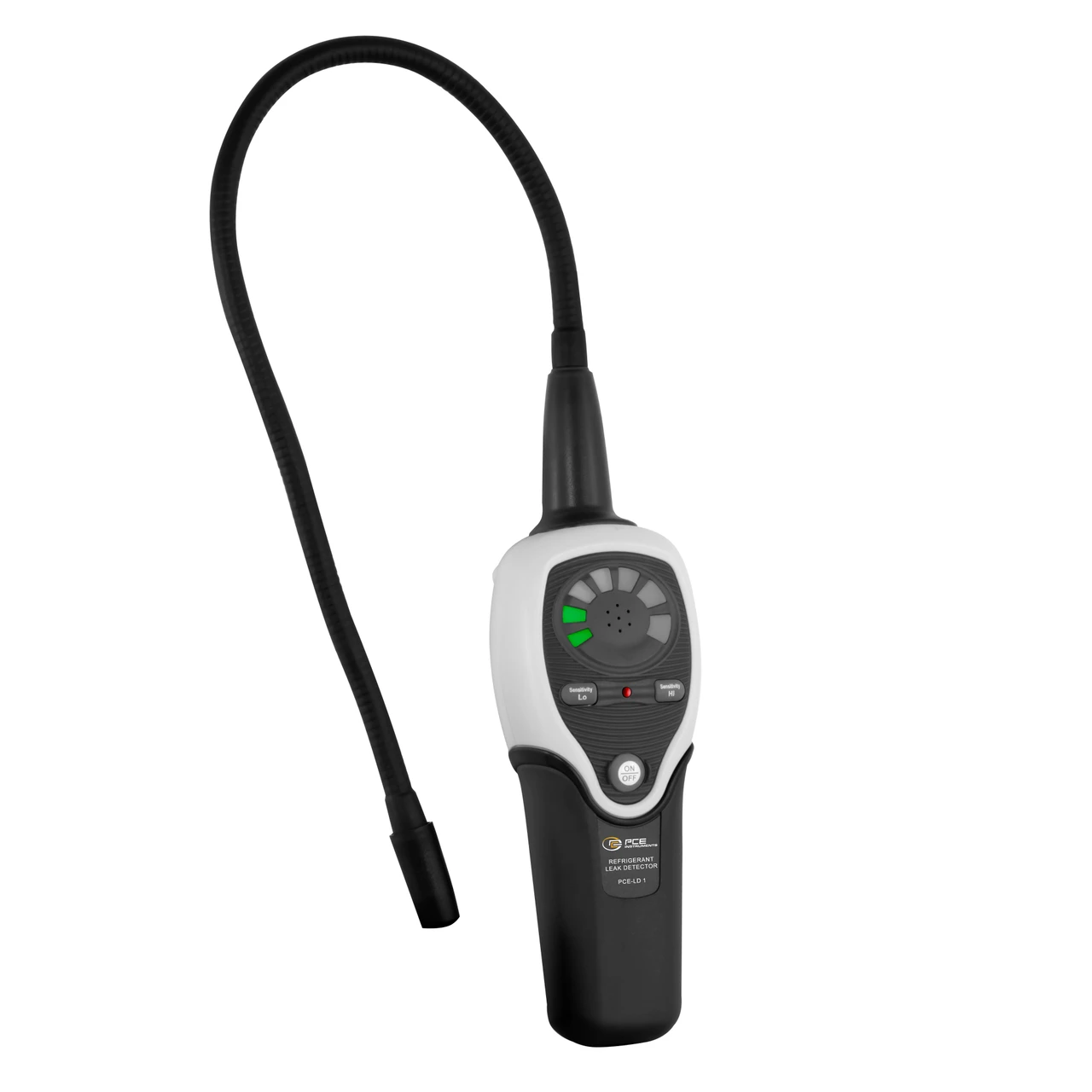

PCE Instruments Leak Detector (PCE-LD 1)
PCE Instruments Leak Detector (PCE-LD 1) is a portable handheld device designed to detect refrigerant gas leaks in HVACR and refrigeration systems. With its high sensitivity, this leak detector can pinpoint leaks in CFC and HFC gases, including R-134a, R-404A, Freon R-407C, R-410A, and R-22.
The flexible 390 mm probe allows easy access to hard-to-reach areas, making it ideal for technicians and service professionals. This leak detector features adjustable high and low sensitivity settings to ensure precise leak detection in various environments.
Specifications and Dimensions
Sensitivity: Adjustable high/low (per SAE J1627 rating criteria)
Detection sensitivity:
6 g/yr or 30 g/yr for R-22 and R-134a
8 g/yr or 40 g/yr for R-404A, R-407C, and R-410A
Warm-up Time: Approx. 90 seconds
Detected Gases: CFC / HFC refrigerants including R-134a, R-404A, Freon R-407C, R-410A, and R-22
Compliance: EN 14624
Test Cycle: Continuous
Sensor Tube Length: Approx. 390 mm / 15.35 in
Power Supply: 4 x AA batteries
Battery Life: Approx. 40 hours of normal use
Auto Shut-Off: After 10 minutes of inactivity
Dimensions: 173 x 66 x 56 mm / 6.8 x 2.6 x 2.2 in
Weight: < 1 lb / 400 g
Key Features and Benefits
Detects refrigerant gas leaks in HVAC and refrigeration systems
Adjustable high and low sensitivity for precise detection
Flexible 390 mm probe reaches difficult areas
Audible and visual alarms indicate gas concentration
Tricolor LED indicator for easy leak detection
Automatic shut-off after 10 minutes to conserve battery life
Lightweight and portable for field service applications
Includes leak check bottle for accurate testing
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LD 1
