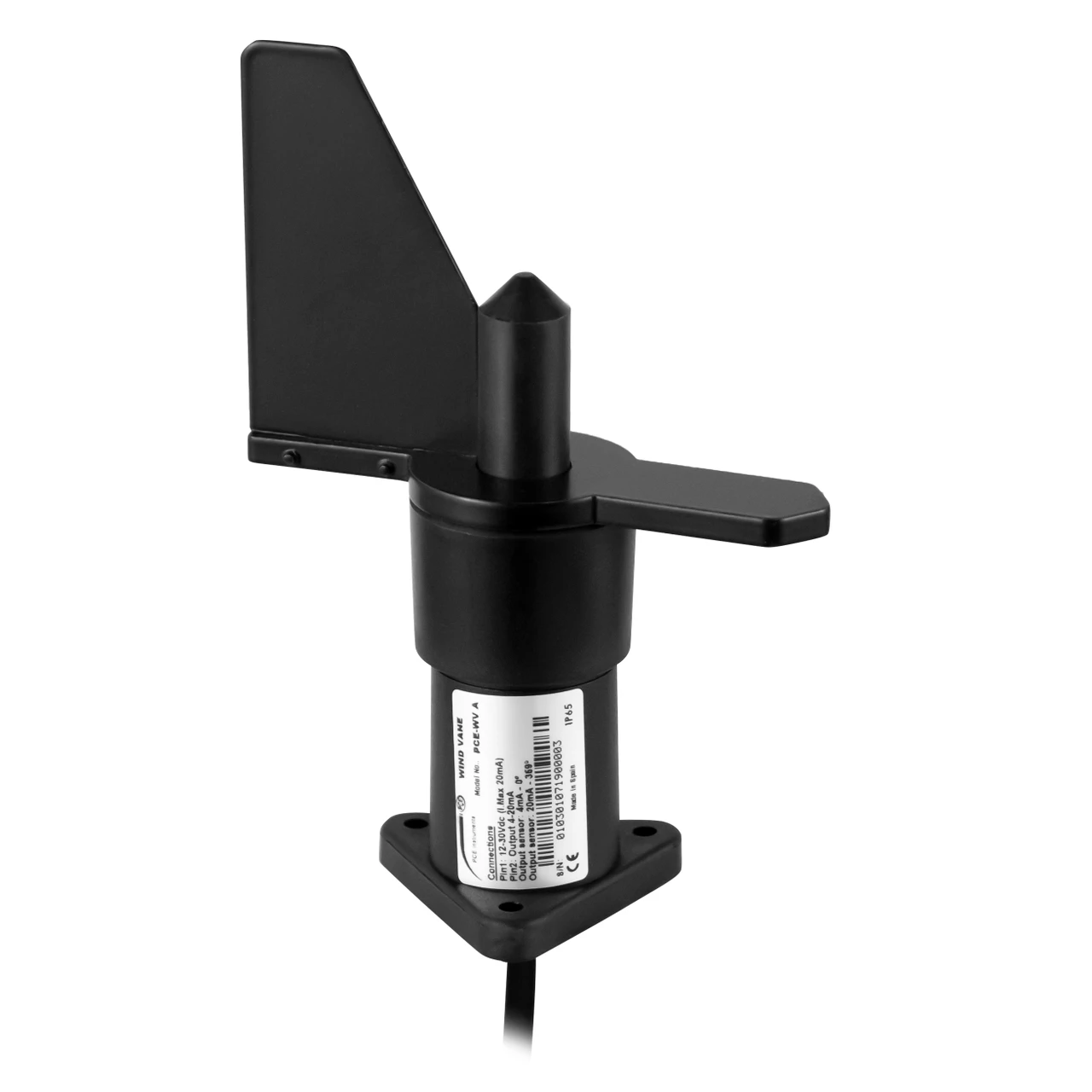

PCE Instruments Industrial Wind Direction Sensor (PCE-WV A)
PCE Instruments Industrial Wind Direction Sensor (PCE-WV A) is designed for precise wind direction measurement in industrial settings. Built with a robust PA plastic housing and IP65 protection, it ensures durability and reliable performance in harsh environments.
This weather station provides a 4 … 20 mA output, making it compatible with data loggers, process control systems, and displays. It measures wind direction across a 0 … 360° range without a dead center, starting from wind speeds as low as 2.62 ft/s (0.8 m/s). The sensor comes with a 65.6 ft (20 m) connection cable for flexible installation.
Specifications and Dimensions
Measuring Range: 0 … 360°
Measurement Starting From: ≤2.62 ft/s (0.8 m/s)
Output: 4 … 20 mA
Resolution: ±25.5°
Maximum Wind Speed: 123 mph (180 ft/s, 55 m/s)
Operating Temperature Range: -4 … +176°F (-20 … +80°C) at ≤95% relative humidity
Electrical Connection: 65.6 ft (20 m) connection cable
Operating Voltage: 12 … 30 V DC
Protection Class: IP65
Key Features and Benefits
Robust PA plastic housing for industrial applications
IP65-rated protection for resistance against weather conditions
Measures wind direction from 0 … 360° with no dead center
Compatible with data loggers and process control systems
Long lifespan and reliable performance
Measures wind speeds starting at 2.62 ft/s (0.8 m/s)
Includes a 65.6 ft (20 m) connection cable for easy installation
1 x PCE-WV A Weather Station
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-WV A
