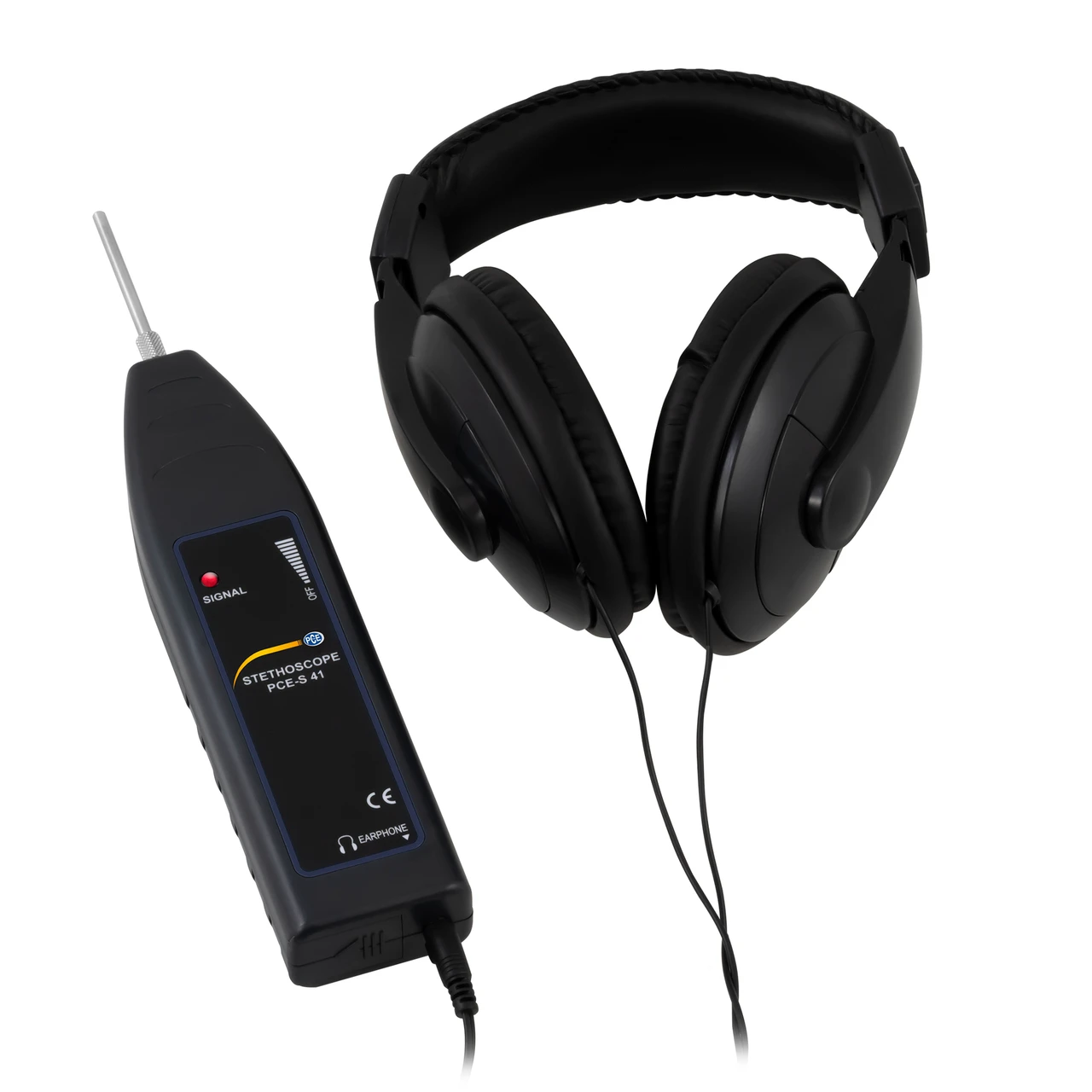

PCE Instruments Industrial Vibration Analyser (PCE-S 41)
PCE Instruments Industrial Vibration Analyser (PCE-S 41) is a handheld device designed for detecting mechanical noise and vibrations in industrial equipment. It is an essential tool for maintenance teams to locate early signs of wear and failure in machine components such as gears, pumps, valves, and vents.
The adjustable headset with a 2-meter cable ensures accurate sound transmission, while the durable ABS enclosure offers a comfortable grip for extended use.
Specifications and Dimensions
Frequency Range: 100 Hz to 10 kHz
Volume: Adjustable
Power Supply: 9V battery
Enclosure Material: ABS plastic
Operating Temperature: -10 … 55 °C / 14 … 131 °F
Device Dimensions: 206 x 50 x 32 mm / 8.11 x 1.9 x 1.2 in
Attachable Sensors: 1 mm x 290 mm; 1 mm x 70 mm
Sensor Material: Steel
Weight: 240 g / 0.53 lbs (with battery)
Key Features and Benefits
Quickly identifies noise and vibrations in machine components
Ideal for HVAC, industrial machinery, and rotating equipment
Piezoelectric transducer for high-precision noise detection
Includes adjustable headset with a 2-meter cable for convenience
Durable ABS plastic housing for a comfortable and secure grip
Lightweight and portable design for field or workshop use
1 x PCE-S 41 Vibration Analyser
1 x 70 mm sensor
1 x 290 mm sensor
1 x Carrying case
1 x User's manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-S 41
