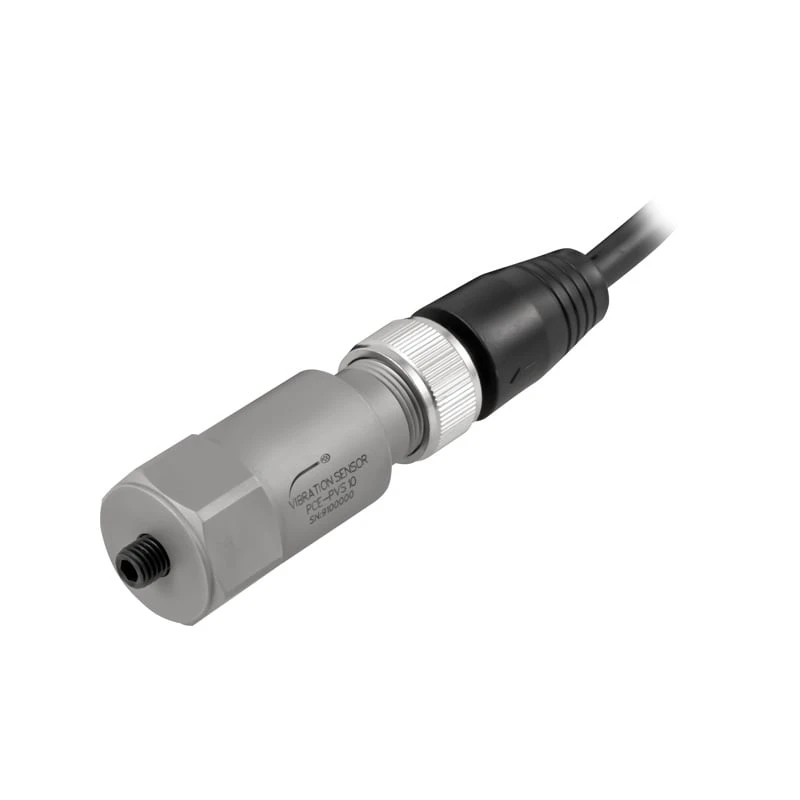

PCE Instruments Industrial Acceleration Sensor (PCE-PVS 10)
PCE Instruments Industrial Acceleration Sensor (PCE-PVS 10) is designed for continuous monitoring of vibration speed in industrial applications. This sensor provides a reliable 4-20 mA process signal output, ensuring seamless integration with process control systems.
Constructed with robust housing, the acceleration sensor offers vertical or horizontal installation options, making it suitable for various industrial environments. The MIL-C-5015 connector ensures secure and stable connections, while its M6 process connection allows easy installation.
Specifications and Dimensions
Measuring Range: ±12.7 mm/s
Frequency Range: 3 – 1500 Hz
Process Signal Output: 4 – 20 mA
Power Supply: 12 – 24 V DC in current loop
Shock Limit: ±1000 g
Output Impedance: <100 ohms
Electrical Isolation from Ground: > 108 ohms
Connection Type: 2-pin MIL-C-5015
Operating Temperature: -40 to 85°C (-40 to 185°F)
Mounting Thread: M6
Dimensions: Ø22 x 51 mm
Key Features and Benefits
Continuous monitoring of vibration speed for industrial applications
4 – 20 mA process signal output for seamless system integration
Vertical or horizontal installation options
Robust design for harsh operating conditions
MIL-C-5015 connector for secure and stable connections
Shock-resistant construction with a high tolerance of ±1000 g
Easy installation with M6 process connection
1 x Acceleration Sensor PCE-PVS 10
1 x MIL-C 5015 Plug to 5 m Cable
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PVS 10
