PCE INSTRUMENTS hygrometer details

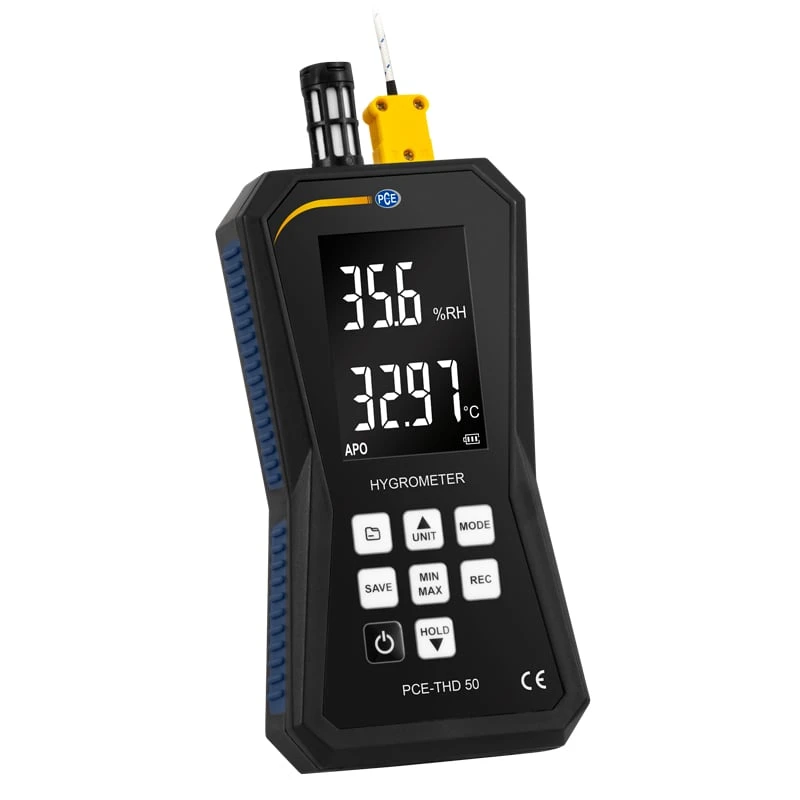

PCE Instruments Hygrometer with Data Logging (PCE-THD 50)
PCE Instruments Hygrometer (PCE-THD 50) is a professional measuring device designed for monitoring ambient conditions, including temperature, humidity, and dew point. With its built-in data logger and micro USB interface, it allows for easy recording and transfer of measured values for further analysis.
This hygrometer features a high-precision Type K thermocouple input, enabling temperature measurements from -100 to 1372 °C (-148 to 2501 °F). It also calculates wet bulb temperature and has a large internal memory capable of storing 32,000 data points. Ideal for warehouses, greenhouses, HVAC systems, and industrial monitoring.
Specifications and Dimensions
Temperature Measurement Range: -20 … 60 °C (-4 … 140 °F)
Temperature Resolution: 0.01 °C/°F
Temperature Accuracy: ±0.5 °C @ 0 … 45 °C, ±1.0 °C in remaining range
Humidity Measurement Range: 0 … 100 % RH
Humidity Resolution: 0.1 % RH
Humidity Accuracy: ±2.2 % RH (10 … 90 % RH) @ 23 °C
Type K Thermocouple Measurement Range: -100 … 1372 °C (-148 … 2501 °F)
Thermocouple Accuracy: ±(1 % ±1 °C)
Dew Point Temperature Range: -50 … 60 °C (-58 … 140 °F)
Wet Bulb Temperature Range: -20 … 60 °C (-4 … 140 °F)
Data Storage: 32,000 measuring points (retrievable via PC)
Power Supply: 3.7 V Li-ion rechargeable battery
Operating Temperature: 0 … 40 °C (32 … 104 °F), <80 % RH
Dimensions: 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2 inches
Weight: 248 g / 8.74 oz
Key Features and Benefits
Measures temperature, humidity, dew point, and wet bulb temperature
Large internal memory for long-term data recording (32,000 measuring points)
Micro USB interface for easy data transfer and analysis
High-precision Type K thermocouple compatibility for extended temperature range
Backlit LCD screen for clear visibility in all conditions
Rechargeable lithium-ion battery for portable use
Perfect for HVAC, industrial, and environmental monitoring applications
1 x Hygrometer PCE-THD 50
1 x Type K thermocouple
1 x Instruction manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-THD 50
