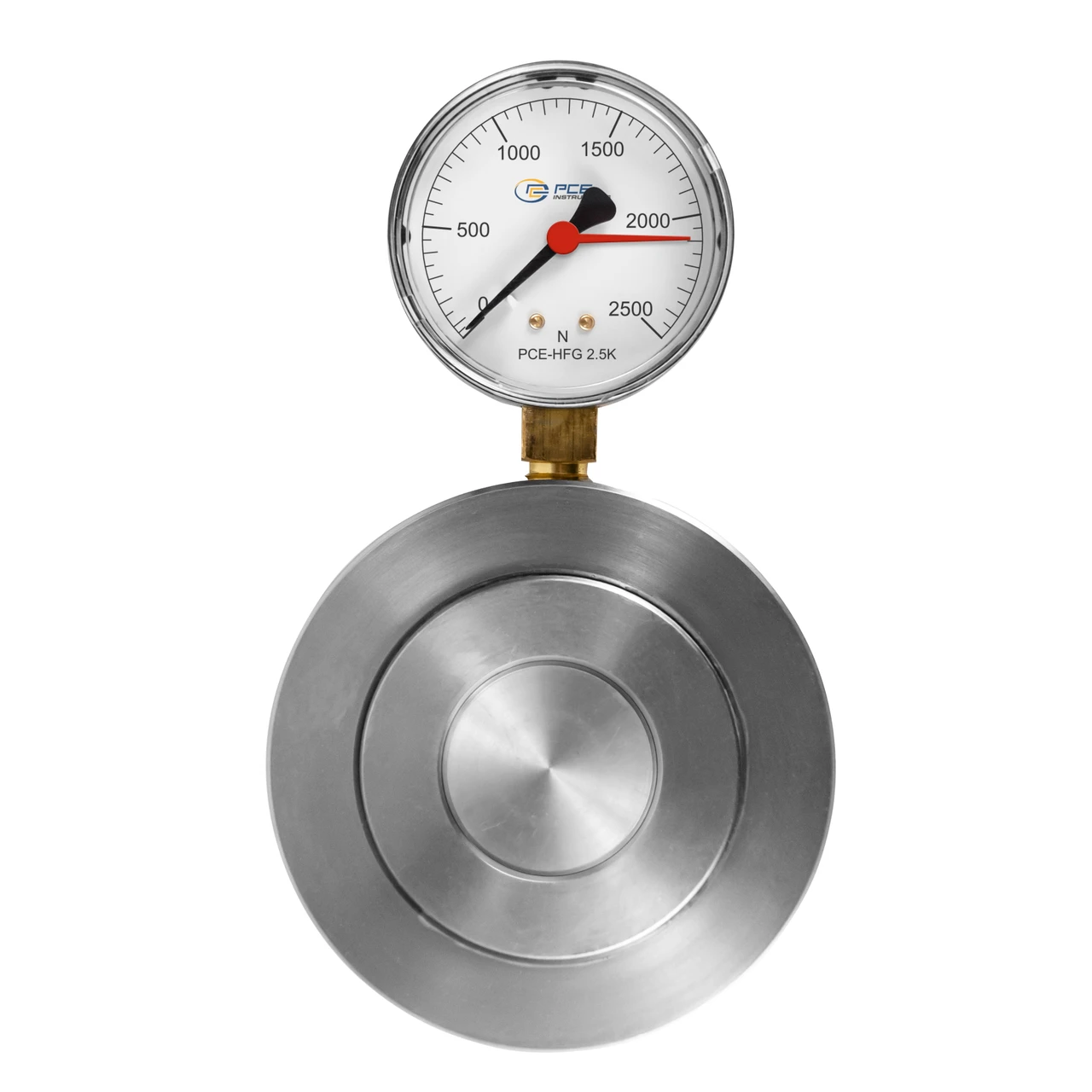

PCE Instruments Hydraulic Force Gauge with 2,500 N Capacity (PCE-HFG 2.5K)
PCE Instruments Hydraulic Force Gauge with 2,500 N Capacity (PCE-HFG 2.5K) is designed for precise measurement of static compressive forces in industrial settings. Featuring a high-accuracy analog scale, this force gauge displays pressure in Newtons and includes an integrated drag pointer for peak force measurement.
Its compact design ensures ease of installation, making it ideal for maintenance and quality control applications. This hydraulic force gauge is equipped with a 27 mm ring opening, allowing measurements on guide rails, shafts, and bolts.
Specifications and Dimensions
Measuring range: 0 … 2,500 N / 562 lbs
Resolution: 100 N / 22.5 lbs
Measuring accuracy: ±1.95% f. R.
Display diameter: Ø 55 mm
Mounting holes: 2 x M6
Operating temperature: 0 … 50°C / 32 … 122°F
Key Features and Benefits
Hydraulic force gauge with analog scale
Measures static compressive forces up to 2,500 N
Ring force transducer with a 27 mm opening
Integrated drag pointer for peak force measurements
Durable stainless steel construction for industrial use
Compact design ideal for small installation spaces
Includes a pressure adapter for added measurement versatility
Perfect for maintenance and adjustment tasks on industrial machinery
1 x Force Gauge PCE-HFG 2.5K
1 x Instrument case
1 x Compression adapter
1 x Instruction manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HFG 2.5K
Hydraulic force gauge: see the listed specifications for this model.
