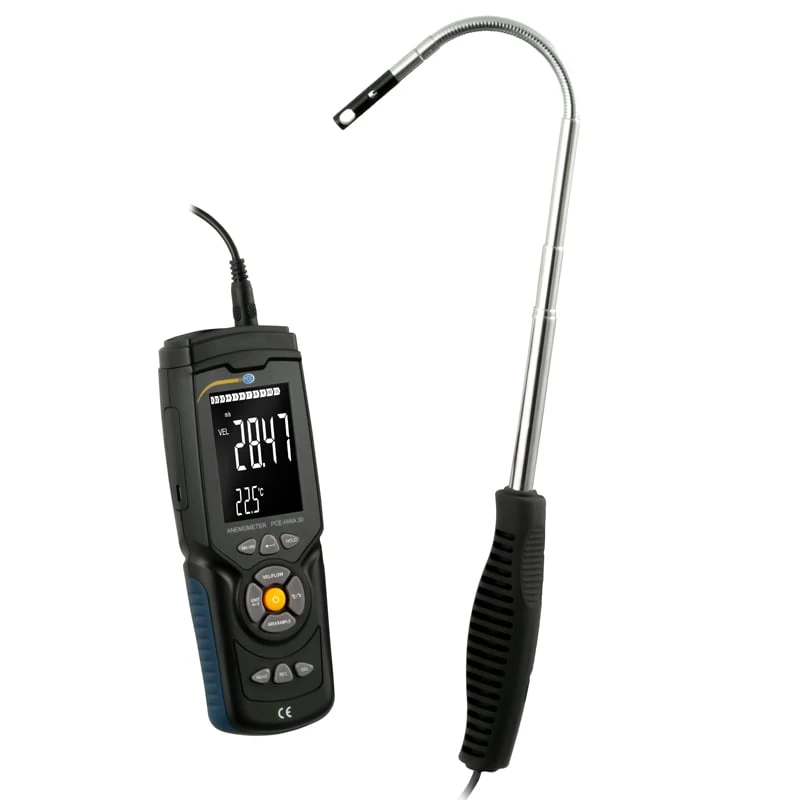

PCE Instruments Hot Wire Anemometer (PCE-HWA 30)
PCE Instruments Hot Wire Anemometer with Data Logger (PCE-HWA 30) is a professional air velocity measuring device that records wind speed, temperature, and volume flow. With its extendable telescopic probe and swiveling head, this anemometer is ideal for HVAC, environmental monitoring, and industrial air measurement applications.
The hot wire anemometer features a measurement range of 0.3 … 30.0 m/s and a built-in data logger capable of storing up to 960 measured values. The device also includes a micro-USB interface for easy data transfer to a PC.
Specifications and Dimensions
Wind Speed Measurement Range: 0.3 … 30.0 m/s (0.98 … 98.4 ft/s)
Wind Speed Resolution: 0.01 m/s
Wind Speed Accuracy: ±3% ±0.1 m/s of measured value
Temperature Measurement Range: 0 … 45°C (32 … 113°F)
Temperature Resolution: 0.1°C / 0.18°F
Temperature Accuracy: ±1.0°C / ±1.8°F
Volume Flow (CMM): 0 … 999900 m³/min
Volume Flow (CFM): 0 … 999900 ft³/min
Data Memory: 960 measured values
Interface: Micro USB
Telescopic Probe Length: 270 … 990 mm (10.63 … 38.98")
Probe Diameter: Ø0.8 … 1.2 mm (0.031 x 0.047")
Power Supply: 3.7V, 1000 mAh battery, rechargeable via 5V DC micro-USB
Battery Life: 15 … 100 mA consumption, varies with backlight usage
Operating Conditions: 0 … 50°C (32 … 122°F), 40 … 80% RH, non-condensing
Storage Conditions: -20 … 60°C (-4 … 140°F), < 80% RH, non-condensing
Key Features and Benefits
Measures wind speed, temperature, and volume flow
Built-in data logger with 960 memory slots
Micro-USB interface for easy data transfer
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HWA 30
