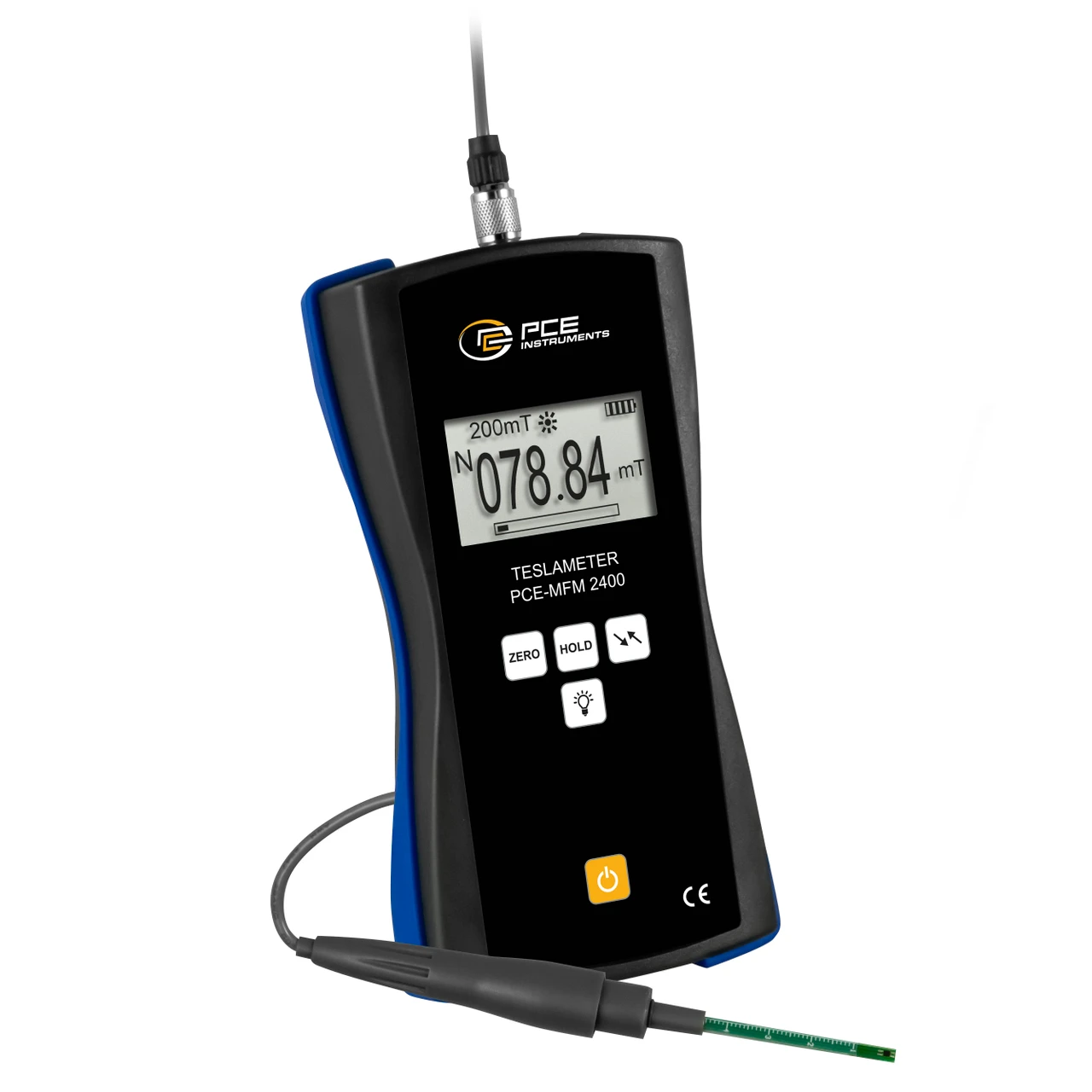

PCE Instruments High Precision Gauss Meter (PCE-MFM 2400, PCE-MFM 2400+)
PCE Instruments PCE-MFM 2400 Series Gauss Meter is a high-precision instrument designed for measuring static magnetic fields with accuracy up to ±1%. With a measurement range of up to 2,400 mT (24,000 G), this device is ideal for testing permanent magnets, relays, and various industrial applications.
The Gauss meter features an intuitive backlit display that provides clear visibility in different lighting conditions. The device includes automatic range switching, allowing seamless transitions between low and high measurement ranges. The hold function captures maximum field strength values, ensuring precise data collection.
Specifications and Dimensions
Measuring Range: 0… 200 mT / 200… 2,400 mT
Gauss Measurement Range: 0 … 2,000 G / 2,000 … 24,000 G
Accuracy: ± 1% of reading
Resolution: 0.01 mT / 0.1 G
Measuring Direction: Hall sensor
Magnetic Field Type: Static (DC)
Display: Backlit digital 4-digit value display
Power Supply: 1 x 9V block battery
Automatic Shutdown: After 5 minutes of inactivity
Measurement Modes: Hold mode, measurement mode
Operating Temperature: 0… 50°C / 32 … 122°F
Storage Temperature: -20… 50°C / -4 … 122°F
Device Dimensions: 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 inch
Weight: 310 g / < 1 lb
Sensor Cable Length: Varies by model
Key Features and Benefits
High-precision measurement with an accuracy of ±1%
Wide measurement range up to 2,400 mT (24,000 G)
Automatic range switching for seamless data collection
Hold function captures maximum field strength values
Backlit display for clear visibility in different lighting conditions
Automatic power-off function extends battery life
Compact, lightweight, and portable design
Ideal for quality control, research, and industrial applications
1 x PCE-MFM 2400 Series Gauss Meter
1 x 9V Block Battery
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
