PCE INSTRUMENTS anemometer details

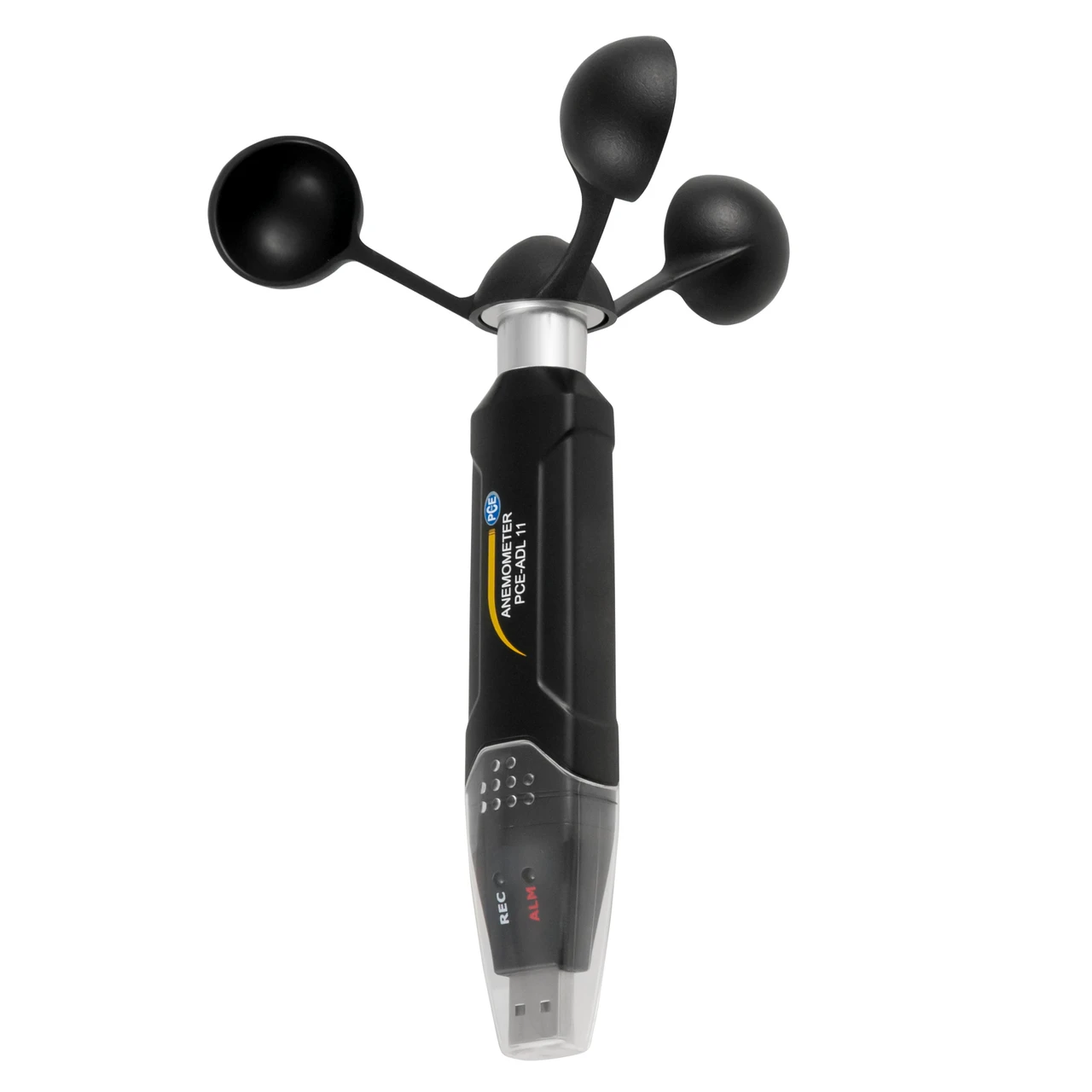

PCE Instruments High-Precision Anemometer with Data Logger and USB Interface (PCE-ADL 11)
PCE Instruments High-Precision Anemometer with Data Logger and USB Interface (PCE-ADL 11) is designed for precise wind speed measurement and data logging in various environments. With a wide measuring range and multiple selectable units, this anemometer is ideal for industrial applications, environmental monitoring, and HVAC system analysis.
The smooth-running impeller provides real-time wind speed readings, ensuring quick and accurate results. Equipped with a large data storage capacity of up to 60,000 readings, the device allows long-term data recording.
Specifications and Dimensions
Measuring Ranges:
1.2 … 30.0 m/s
4.3 … 108.0 km/h
2.33 … 58.32 knots
2.69 … 67.2 mph
236 … 5906 ft/min
0.01 m/s, 0.1 km/h, 0.1 knot, 0.1 mph, 1 ft/min
Measurement Accuracy:
m/s: ± (3% + 0.20 m/s)
km/h: ± (3% + 1.0 km/h)
Knots: ± (3% + 0.4 knots)
mph: ± (3% + 0.4 mph)
ft/min: ± (3% + 40 ft/min)
Storage Capacity: 60,000 readings
Data Interface: USB for easy data transfer
Recording Intervals: 3s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1h, 2h, 3h, 6h, 12h
Power Supply: 3.6V Lithium Thionyl Chloride Battery
Alarm Function: Alerts when limit values are exceeded
Operating Conditions: 0 … 50°C (32 … 122°F), <80% RH
Protection Class: IP42
Max. Altitude: 2000 m (6561 ft)
Dimensions: 145 x 35 x 30 mm (5.7 x 1.4 x 1.2 in)
Weight: 49 g (< 1 lb)
Key Features and Benefits
Accurate wind speed measurement in various units
Data logger with storage for up to 60,000 readings
USB connectivity for easy data transfer and analysis
Configurable measurement intervals for precise monitoring
Visual alarm when wind speed exceeds set limits
Durable and compact design with an easy-mounting option
Perfect for industrial, environmental, and HVAC applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-ADL 11
