Hardness tester details

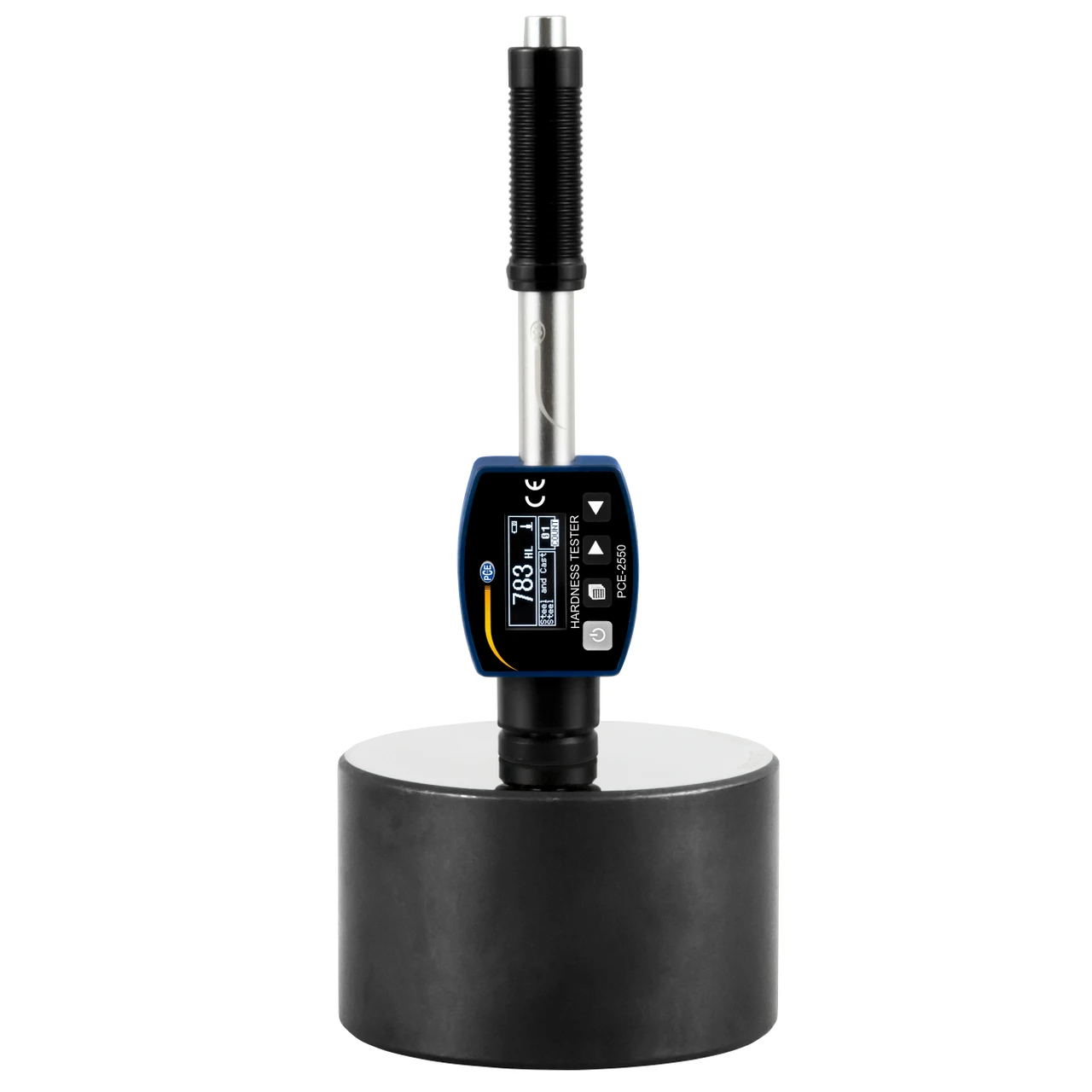

PCE Instruments Hardness Tester (PCE-2550)
PCE Instruments Hardness Tester (PCE-2550) is a portable and versatile tool designed for precise hardness measurement of metal surfaces. This compact device is ideal for quality control, material testing, and industrial inspections in manufacturing and metalworking environments.
With its integrated impact mechanism and OLED display, the PCE Instruments Hardness Tester offers accurate readings across multiple hardness scales, including Rockwell, Brinell, and Vickers. The built-in memory can store up to 360,000 measurement points, and results can be transferred via USB for easy data analysis.
Specifications and Dimensions
Measuring range: 170 … 960 HLD
Measurement directions: 360°
Impact device: Type D
Hardness scales: HL, HB, HRB, HRC, HRA, HV, HS
Selectable materials: 10
Calibration: On enclosed hardness test block
Minimum workpiece weight: 2 kg (50 g with coupling gel)
Minimum thickness: 5 mm with coupling paste
Display: OLED screen
Internal memory: 350 data groups
Alarm settings: Maximum and minimum value
Auto power-off function
Power supply: 2 x CR2016 button cells
USB data transfer capability
Operating temperature: 0 … 40°C / 32 …104°F
Dimensions: 145.5 x 32 x 26 mm
Weight: 160 g / < 1 lb
Key Features and Benefits
Portable and lightweight for field and laboratory use
Measures hardness on steel, stainless steel, cast iron, aluminum, and more
360° measurement capability for accurate readings in any position
Large OLED display ensures clear visibility in all conditions
Integrated USB interface for fast data transfer and analysis
Rechargeable battery ensures extended use
Includes test block for calibration and verification
Suitable for incoming and outgoing quality inspections
1 x PCE Instruments Hardness Tester (PCE-2550)
1 x USB connection cable
1 x Software for data analysis
1 x Hardness test block
1 x Cleaning brush
1 x Support ring with Ø14 mm
1 x Transport case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-2550
