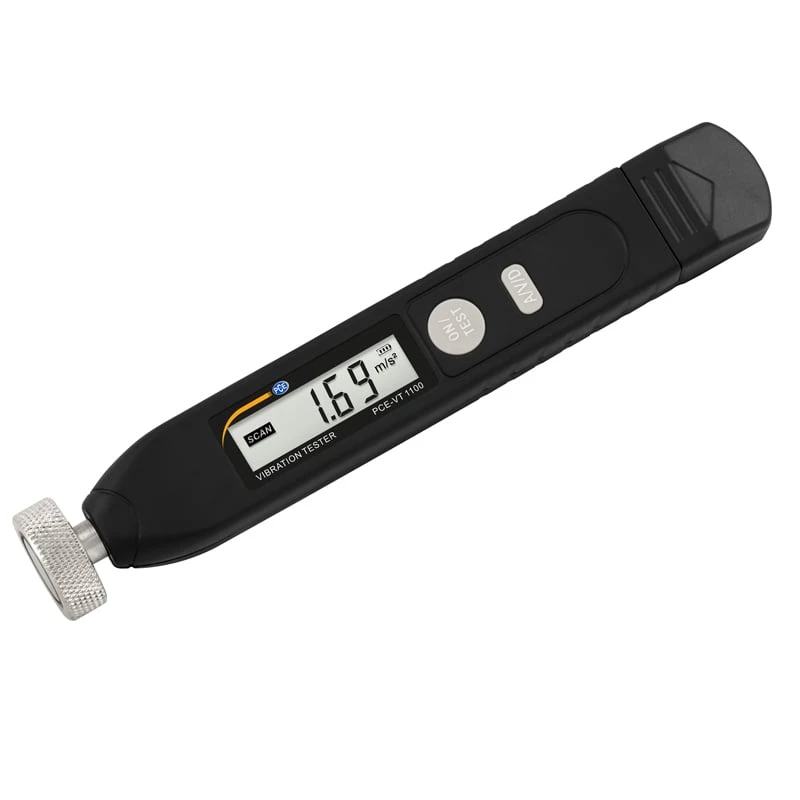

PCE Instruments Handheld Vibration Meter with Data Memory (PCE-VT 1100M)
PCE Instruments Vibration Meter (PCE-VT 1100M) is a compact handheld device designed for quick and precise vibration measurement. It measures acceleration, vibration speed, and displacement, making it an essential tool for monitoring machine conditions and ensuring optimal performance.
With a wide frequency range and built-in measurement memory, this vibration meter allows users to compare previous readings for better diagnostics. The device is battery-operated for portability and features an automatic shutdown function to extend battery life.
Specifications and Dimensions
Acceleration: 0.01 … 199.9 m/s² peak (10 Hz … 1 kHz)
Vibration Speed: 0.01 … 199.9 mm/s RMS (10 Hz … 1 kHz)
Displacement: 0.001 … 1.999 mm p-p (10 … 500 Hz)
Measurement Accuracy:
Acceleration: ≤ 3%
Vibration Speed: ±5%, ±2 Digits
Displacement: +10/-20% (10 … 20 Hz), ±5% (20 … 1000 Hz)
Display: LCD with fast response time (~1 second)
Power Supply: 2 x 6V CR2032 button cells
Battery Life: ~5 hours (continuous operation)
Environmental Conditions: 0 … +40°C (32 … 104°F), 0 … 84% RH
Dimensions: 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7 in
Weight: ~40 g / 1.4 oz (including batteries)
Key Features and Benefits
Measures acceleration, vibration speed, and displacement
Retains measured values for easy comparison
Battery-operated and portable for on-site assessments
Wide frequency range for versatile applications
Automatic shut-down after 20 seconds of inactivity to save power
Compact, lightweight, and easy to operate
Low battery indicator ensures uninterrupted operation
1 x Vibration Meter PCE-VT 1100M
1 x Magnetic Sensor
1 x PCE-VT-NF-10 Standard Probe (length 10 mm)
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-VT 1100M
