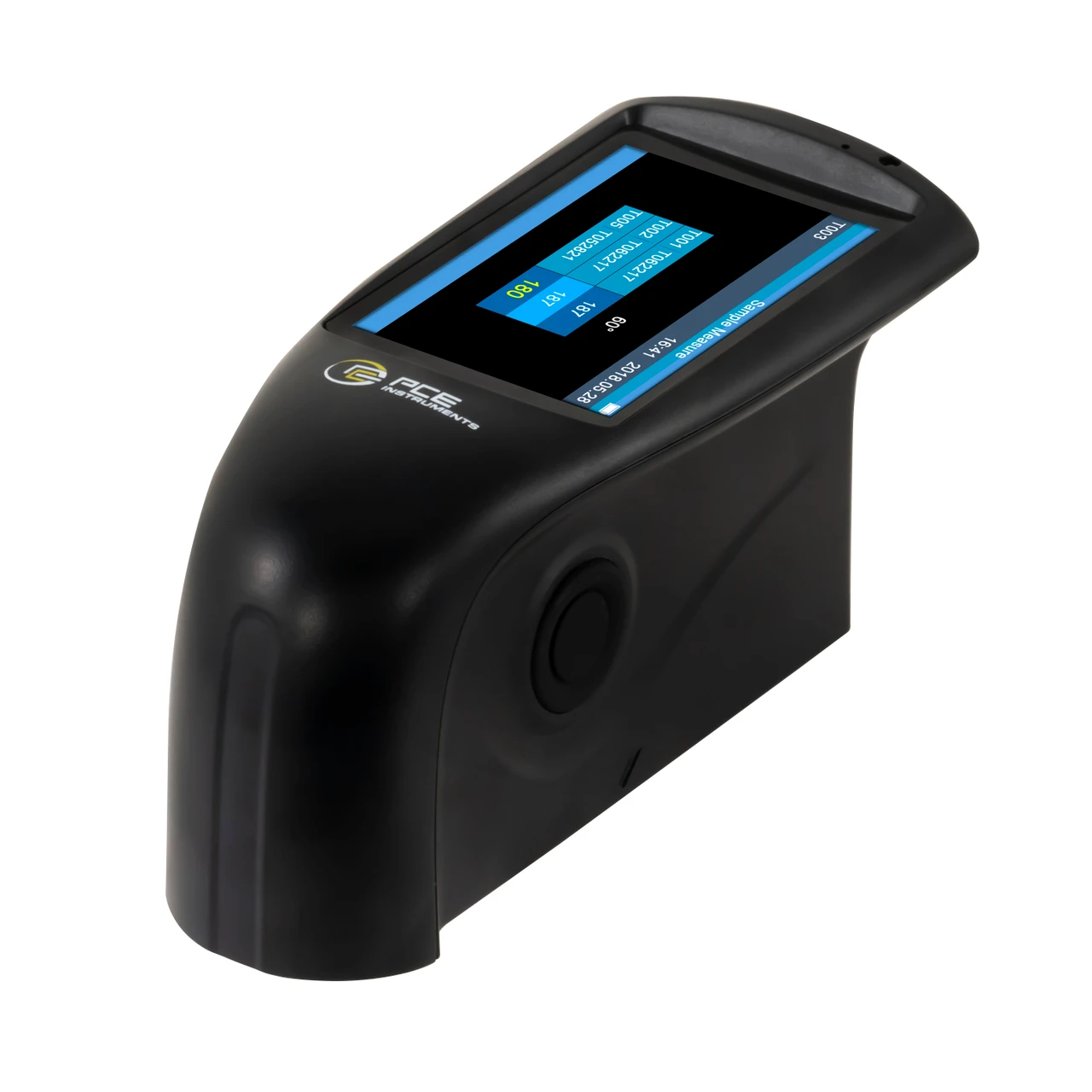

PCE Instruments Gloss Meter with 60° Measurement Angle and TFT Display (PCE-GM 60Plus)
PCE Instruments Gloss Meter with 60° Measurement Angle (PCE-GM 60Plus) is a high-precision device designed to measure surface gloss across various materials. With a 60° measuring geometry and a wide measurement range of 0 to 200 gloss units, it ensures accurate and repeatable results for industrial and quality control applications.
The PCE-GM 60Plus gloss meter features a 3.5" TFT touchscreen display for easy operation and quick measurements in just 0.5 seconds. With an internal rechargeable battery and self-calibration capability, this device provides consistent gloss readings while meeting industry standards.
Specifications and Dimensions
Measuring Geometry: 60°
Display: 3.5" TFT touchscreen
Measuring Range: 0 … 200 GU
Readability: 1 GU
Repeatability: ±1 GU
Reproducibility: ±1 GU
Measuring Accuracy: ±1.5 / ±1.5%
Measuring Aperture: 10 x 25 mm / 0.4 x 1.0 in
Measuring Time: 0.5 second
Chromaticity: CIE 1931 2° under a CIE illuminant C
Light Source: D65
Wave Length: 400-700 nm
Data Interface: USB / RS-232
Power Supply: 3200-mAh Li-ion rechargeable battery
Operating Temperature: 0 … 40°C / 32 … 104°F
Storage Temperature: -20 … 50°C / -4 … 122°F
Relative Humidity: < 85% RH (non-condensing)
Dimensions: 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in
Weight: 350 g / 0.78 lb
Menu Languages: English, Chinese
Key Features and Benefits
60° measurement angle for precise gloss assessment
3.5" TFT touchscreen display for easy operation
Measuring range of 0 to 200 gloss units
Fast measurement time of just 0.5 seconds
Self-calibration feature using the included calibration plate
Rechargeable battery for convenient portable use
Meets international gloss measurement standards
USB and RS-232 data interface for seamless data transfer
1 x PCE-GM 60Plus Gloss Meter
1 x Mains Power Adapter
1 x Calibration Plate
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-GM 60Plus
