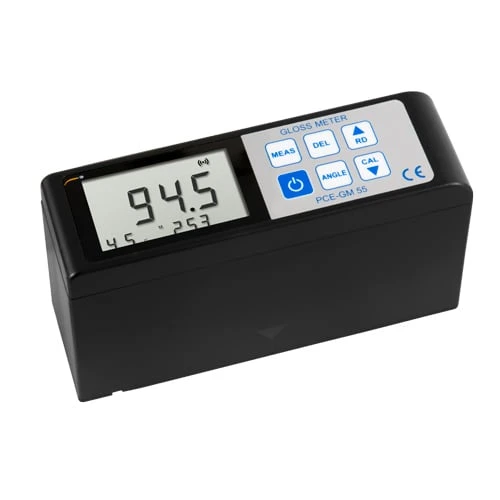

PCE Instruments Gloss Meter with 20° 45° and 75° Measurement Angles (PCE-GM 55)
PCE Instruments Gloss Meter with 20° 45° and 75° Measurement Angles (PCE-GM 55) is a precision tool designed for evaluating surface gloss levels in various materials. It features 20°, 45°, and 75° measurement angles, making it ideal for assessing both medium and high-gloss surfaces, including paper and textiles.
With an integrated serial interface, data can be transferred to a PC for further analysis. The device is powered by a rechargeable Li-ion battery and supports easy charging via a 5V power supply.
Specifications and Dimensions
Measurement Angles: 20°, 45°, 75°
Measuring Range: 0 … 200 gloss units
Resolution: 0.1 gloss units
Accuracy: ±1 gloss unit (on reference standard)
Repeatability: ±0.5 gloss units (0 … 99.9 GE)
Measuring Surface: 7 x 14 mm (elliptical)
Data Storage: 254 measuring points
Interface: Serial
Operating Conditions: 0 … 40°C / 32 … 104°F, max. 85% RH
Power Supply: Rechargeable Li-ion battery
Dimensions: 140 x 45 x 75 mm / 5.5 x 1.8 x 3 in
Weight: 305 g / < 1 lb
Key Features and Benefits
Three measurement angles for versatile gloss analysis
Wide measuring range up to 200 gloss units
High precision with ±1 gloss unit accuracy
Ideal for assessing medium and high-gloss surfaces
Suitable for measuring gloss on textiles and paper
Data storage for up to 254 measurements
Integrated serial interface for data transfer
Rechargeable battery for portable use
1 x Gloss Meter PCE-GM 55
1 x Reference Standard
1 x Cleaning Cloth
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-GM 55
