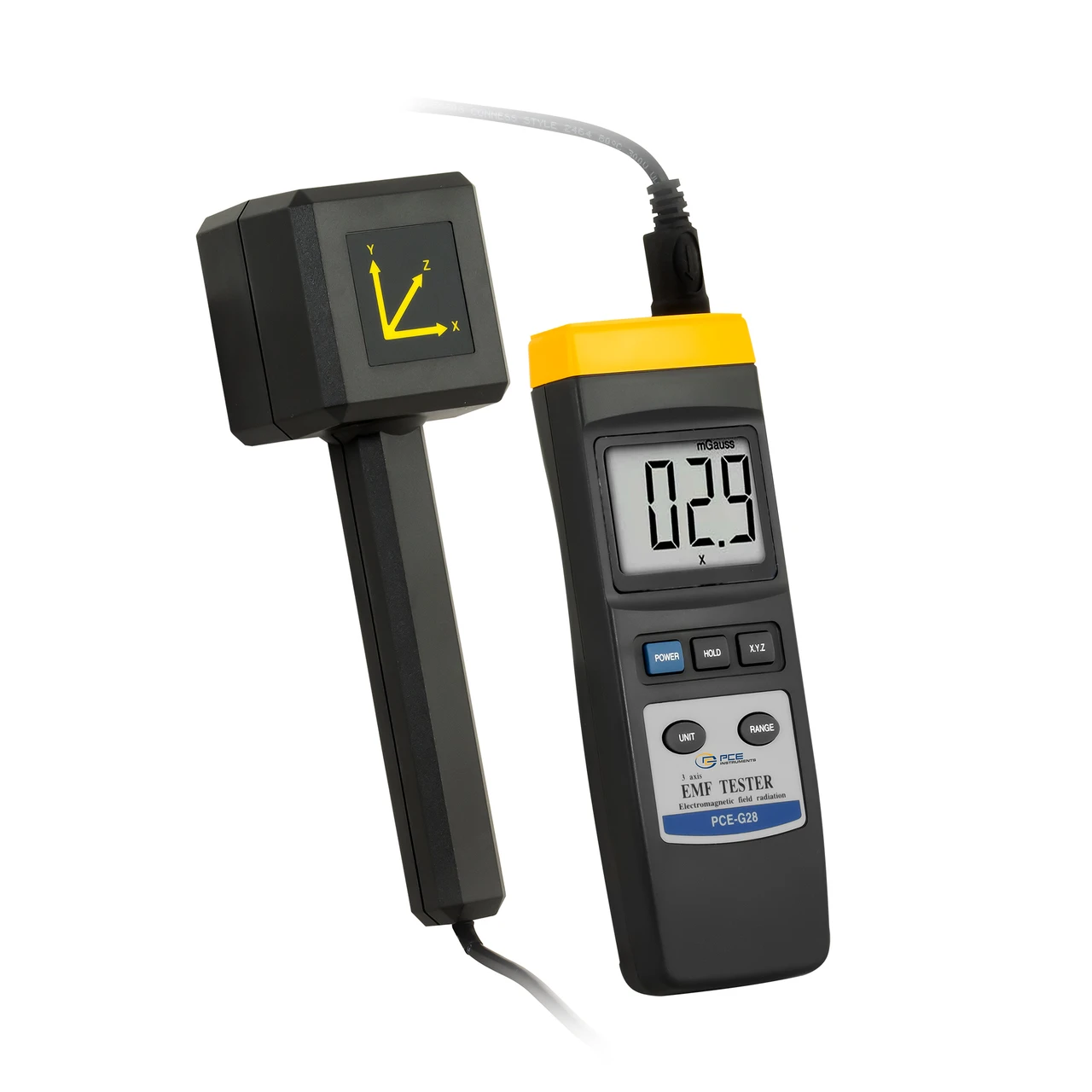

PCE Instruments Gauss Meter with 3-Axis EMF Sensor (PCE-G28)
PCE Instruments Gauss Meter with 3-Axis EMF Sensor (PCE-G28) is a handheld device designed to detect electromagnetic fields (EMFs) and measure their intensity in milliGauss (mG) or microTesla (µT). It features an external 3-axis sensor for precise readings, making it an essential tool for monitoring power lines, transformers, electric motors, and other electrical installations.
The PCE-G28 Gauss meter offers a wide measurement range and high accuracy, ensuring reliable detection of EMF radiation. With a data hold function and a clear LCD display, it provides fast and easy readings.
Specifications and Dimensions
Measurement Range (microTesla): 0 to 20 µT / 0 to 200 µT / 0 to 2000 µT
Measurement Range (milliGauss): 0 to 200 mG / 0 to 2000 mG / 0 to 20000 mG
Resolution (per range): 0.01 µT / 0.1 µT / 1 µT and 0.1 mG / 1 mG / 10 mG
±4 % + 3 digits (20 µT and 200 mG range)
±5 % + 3 digits (200 µT and 2000 mG range)
±10 % + 5 digits (2000 µT and 20000 mG range)
Sampling Rate: Approx. 0.4 seconds
Frequency Range: 30 … 300 Hz
Display: LCD, 3.5 digits
Power Supply: 1 x 9V battery
Dimensions (Meter): 200 x 68 x 30 mm / 7.88 x 2.68 x 1.18 in
Dimensions (Sensor): 225 x 75 x 55 mm / 8.86 x 2.95 x 2.17 in
Weight: 470 g / 1.04 lbs (including battery)
Key Features and Benefits
Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)
Measures and displays results in milliGauss (mG) or microTesla (µT)
High accuracy readings with a fast sampling rate
External 3-axis electromagnetic sensor for precise measurements
Data hold function for easy reading and recording of values
Ideal for monitoring transformers, power lines, electric motors, and installations
Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards
Compact and lightweight design for portability and ease of use
1 x PCE-G28 Gauss Meter
1 x 3-Axis Electromagnetic Sensor
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-G28
