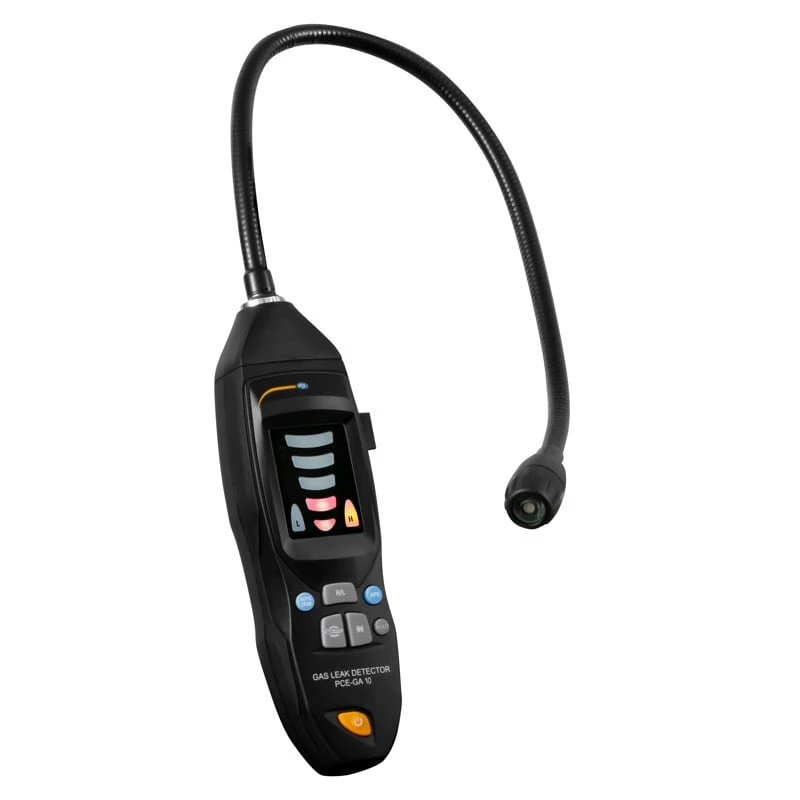

PCE-GA 10 Gas Leak Detector with Three Alarm Types
PCE-GA 10 is a handheld leak-search instrument with a flexible 500 mm probe for reaching gas pipes and connections. It indicates concentration levels on LEDs and provides optical, acoustic and haptic alerts. Its published concentration and sensitivity specifications are stated for methane; they should not be applied unchanged to every other detectable gas.
Specifications and included details
- Methane measurement range listed as 0–10,000 ppm; methane sensitivity below 50 ppm.
- Flexible probe length: 500 mm, with multi-stage LED concentration indication.
- Optical, acoustic and haptic alarms; approximate warm-up time 50 seconds.
- 3.7V Li-ion battery; package lists detector and 5V/1A power adapter with 100–240V AC input.
Before ordering
Confirm that the target gas is supported and use the manufacturer's inspection and calibration instructions. The listed methane thresholds are not gas-independent alarm limits. This listing does not establish suitability as a personal exposure monitor, oxygen monitor or certified protective alarm for confined-space entry.
Product questions and answers
Does it display a continuous numerical ppm reading?
The described display uses LED concentration levels. A continuous numeric ppm display is not established by the available details.
Do the methane specifications apply equally to propane or other gases?
No such equivalence is stated. Range and sensitivity are specifically labeled for methane; check gas-specific response information for other applications.
Is a power adapter included?
Yes. The package list includes the PCE-GA 10 detector and a 5V/1A adapter accepting 100–240V AC. No plug style is specified.
