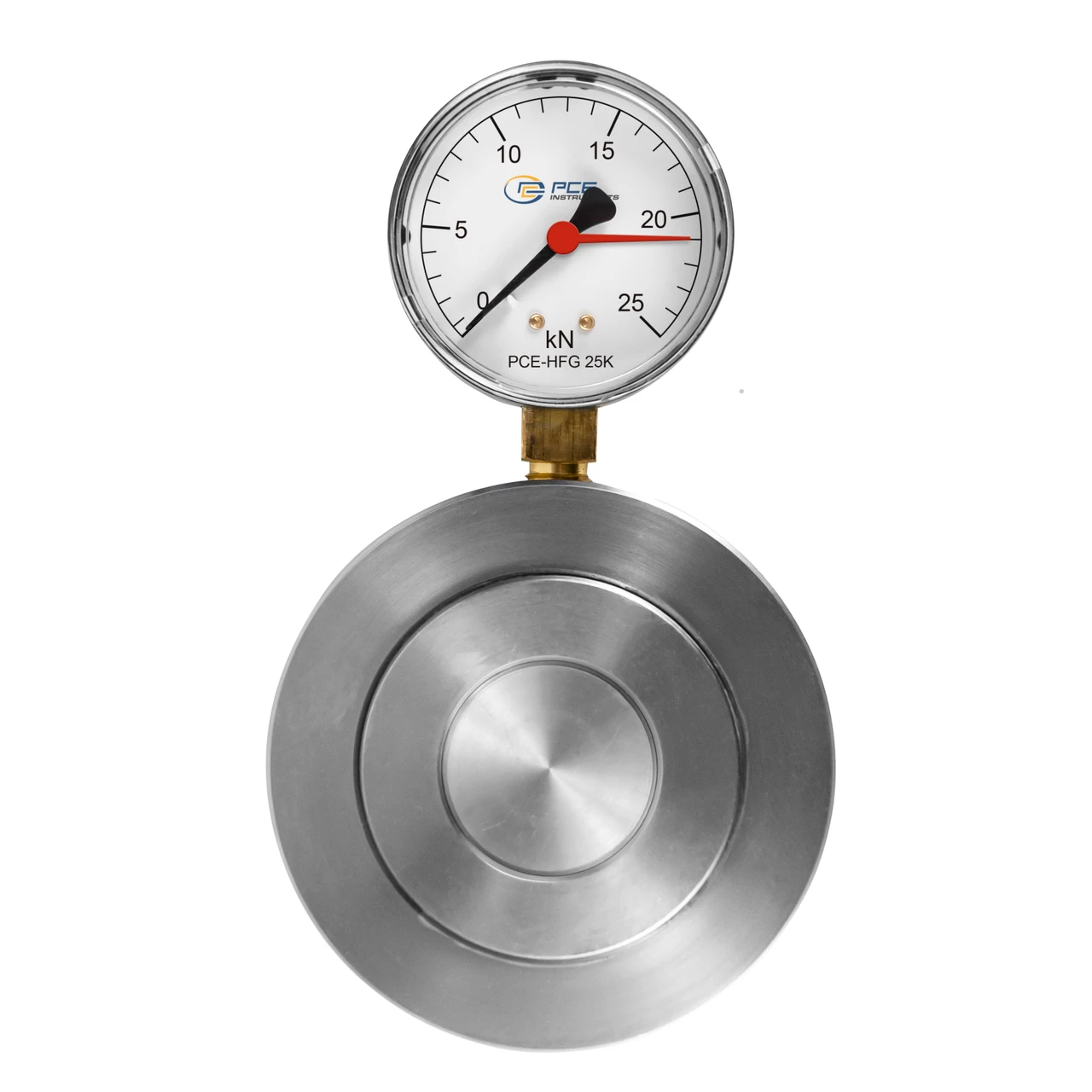

PCE Instruments Force Gauge with 25,000 N Capacity (PCE-HFG 25K)
PCE Instruments Force Gauge with 25,000 N Capacity (PCE-HFG 25K) is designed for precise force measurement in demanding industrial applications. This high-capacity gauge operates on hydraulic principles, displaying force values in Newtons on an analog scale. Its integrated drag pointer records peak force readings, ensuring accurate measurements.
The included pressure adapter quickly converts it from a ring force transducer to a pressure punch measuring device. Built with stainless steel, it ensures durability in industrial settings while offering easy installation.
Specifications and Dimensions
Measuring range: 0 … 25,000 N / 5,620 lbs
Resolution: 1000 N / 224.8 lbs
Measuring accuracy: ±1.95% f. R.
Display diameter: Ø 55 mm
Mounting holes: 2 x M6
Operating temperature: 0 … 50°C / 32 … 122°F
Key Features and Benefits
Measures static compressive forces up to 25,000 N
Durable stainless steel construction
27 mm ring opening for versatile applications
Integrated drag pointer for capturing peak force readings
Compact design fits small installation spaces
Mounting holes allow for easy and secure attachment
Quick conversion between ring force and pressure punch measurement
1 x Force Gauge PCE-HFG 25K
1 x Instrument case
1 x Compression adapter
1 x Instruction manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HFG 25K
