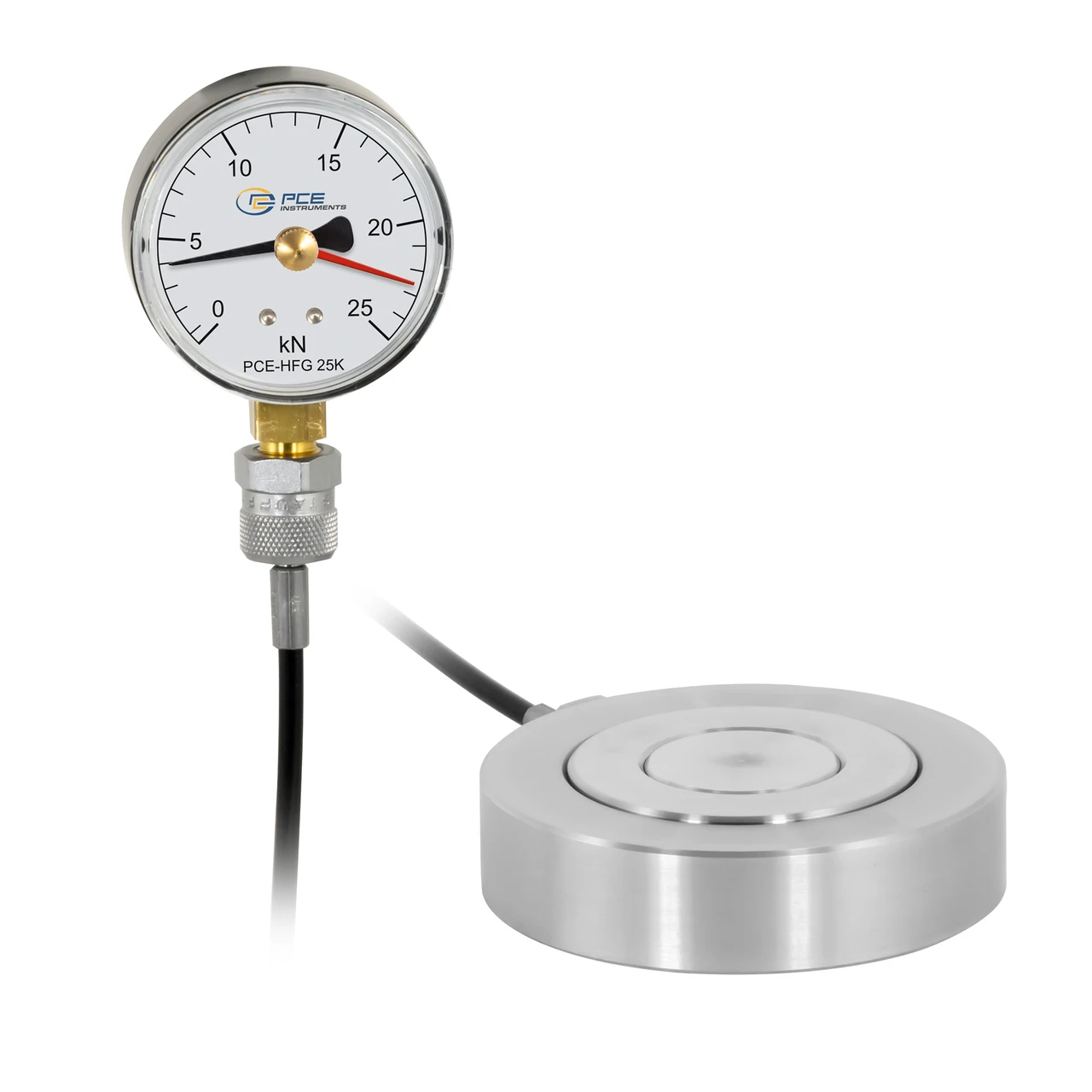

PCE Instruments Force Gauge 25,000 N with Hydraulic Measurement (PCE-HFG 25K-E100)
PCE Instruments Force Gauge 25,000 N with Hydraulic Measurement (PCE-HFG 25K-E100) provides precise force measurement for industrial applications. This hydraulic gauge displays forces in Newtons on an analog scale, ensuring accurate readings. The built-in drag pointer records peak measurements, making it ideal for monitoring applied loads.
Equipped with a 27 mm ring opening, this force gauge enables measurements on guide rails, shafts, and bolts. Its durable stainless steel construction ensures long-term use in demanding environments.
Specifications and Dimensions
Measuring range: 0 … 25,000 N / 5,620 lbs
Resolution: 1000 N / 224.8 lbs
Measuring accuracy: ±1.95% f. R.
Hydraulic hose length: 100 cm
Display diameter: Ø 55 mm
Mounting holes: 2 x M6
Operating temperature: 0 … 50°C / 32 … 122°F
Key Features and Benefits
Hydraulic force gauge for static compressive force measurement
Integrated drag pointer records peak force values
Compact design ideal for small installation spaces
Ring force transducer with 27 mm opening for versatile applications
Quickly converts to a pressure punch force gauge
Durable stainless steel construction ensures long-term reliability
Mounting holes allow for secure and stable installation
1 x Force Gauge PCE-HFG 25K-E100
1 x Instrument case
1 x Compression adapter
1 x Instruction manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HFG 25K-E100
Hydraulic force gauge: see the listed specifications for this model.
