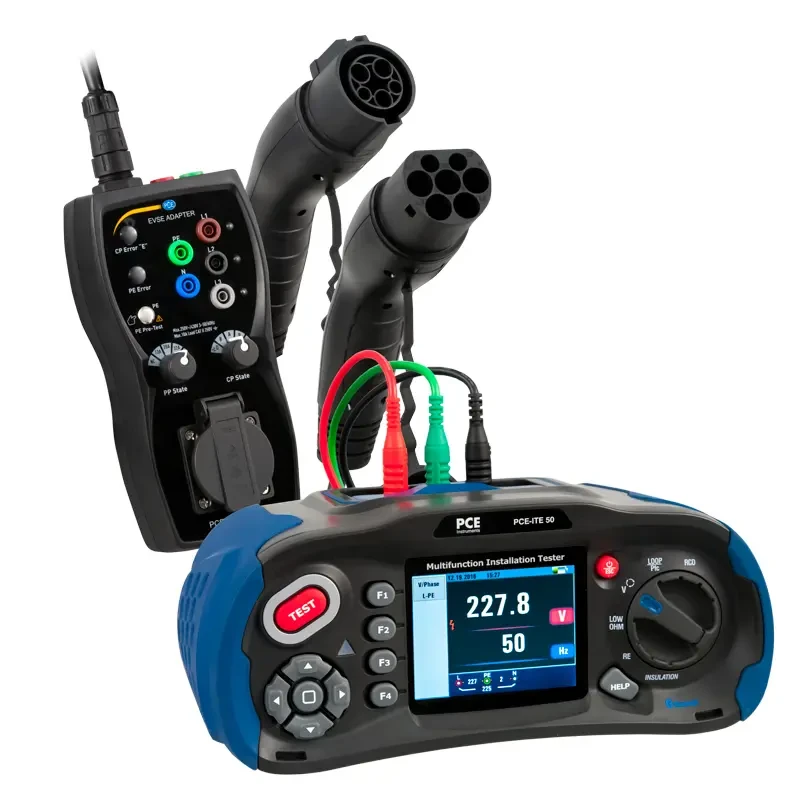

PCE Instruments EVSE Tester Kit with Installation Tester (PCE-EVSE-KIT2)
PCE Instruments EVSE Tester Kit with Installation Tester (PCE-EVSE-KIT2) is a comprehensive solution for testing and diagnosing electric vehicle supply equipment (EVSE). Designed for professional use, this kit includes an EVSE adapter, installation tester, and charging cable simulation tools.
The EVSE tester allows users to simulate vehicle states and cable conditions for accurate diagnostics of wall-mounted charging stations. It supports multiple test modes, including PE pre-test, CP and PP simulation, and loop impedance testing.
Specifications and Dimensions
Test Functions: PE pre-test, CP/PP state simulation, PE fault simulation
PP Simulation: Open, 13 A, 20 A, 32 A, 63 A
CP Status: A, B, C, D
Loop Resistance: L-N, L-PE, N-PE testing
Voltage Measurement: 80 … 500 V AC/DC
Insulation Resistance: Up to 1000 MΩ
RCD Test: 10mA – 1A, types A & B
Display: 3.5" TFT LCD
Power Supply: 8 x 1.2 – 1.5V AA batteries
Protection Class: IP54
Operating Conditions: 0 … 45°C, 95% RH
Storage Conditions: -10 … 50°C, 60% RH
Weight: 1.56 kg / 3.4 lbs
Dimensions: 24.2 x 10.5 x 14.5 cm
Key Features and Benefits
Tests EVSE charging stations for proper functionality
Simulates vehicle and charging cable states for in-depth diagnostics
Built-in loop resistance and insulation resistance testing
Supports both Type 1 and Type 2 charging cables
1 x EVSE Measuring Device PCE-EVSE-KIT2
1 x EVSE Adapter PCE-EVSE 300
1 x Installation Tester PCE-ITE 50
1 x Charging Cable Plug Type 1
1 x Charging Cable Plug Type 2
1 x Transport Bag
1 x Transport Case
1 x Instruction Manual
1 x Set of Test Leads
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-EVSE-KIT2
