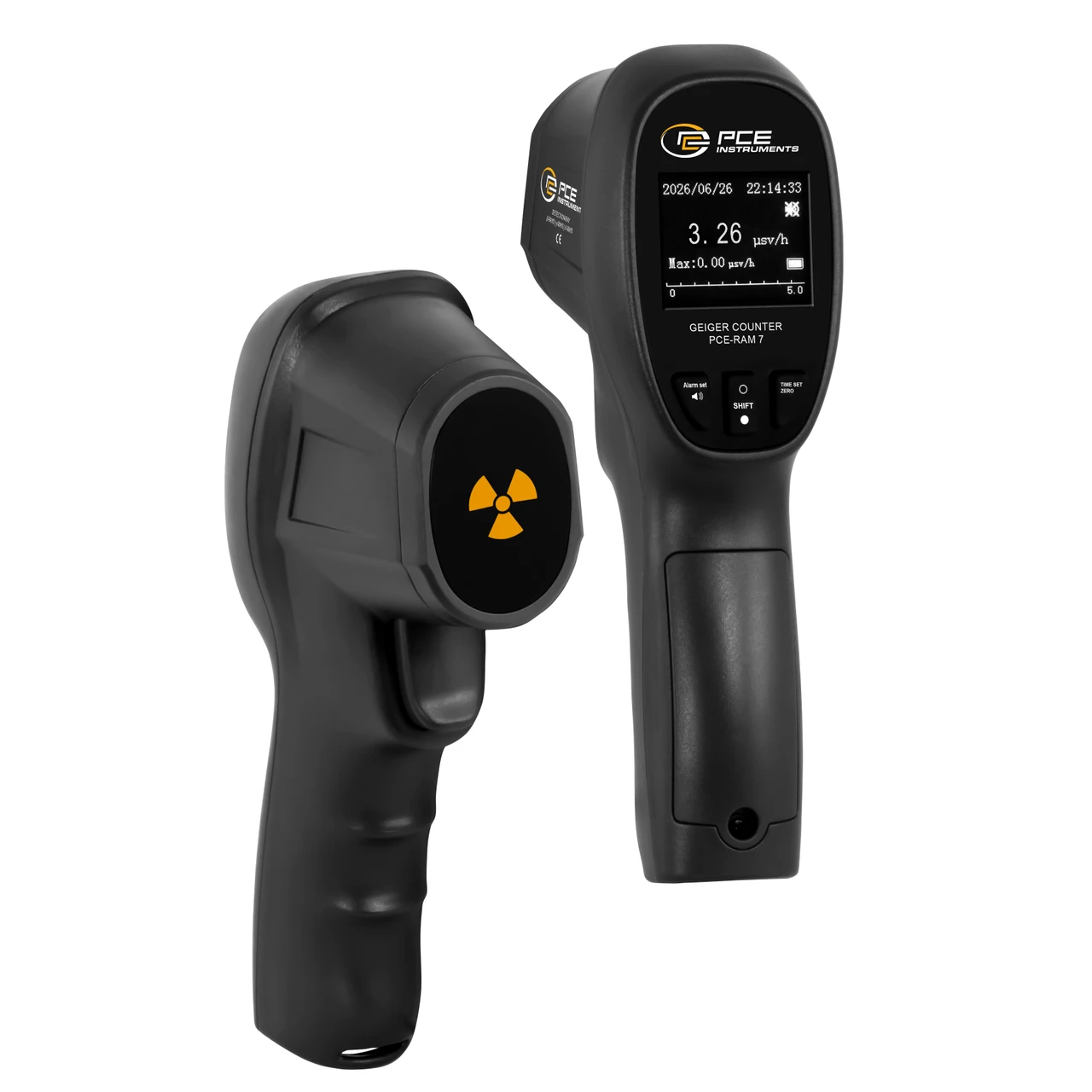

PCE Instruments Environmental Meter with Radiation Detection (PCE-RAM 7)
PCE Instruments Environmental Meter (PCE-RAM 7) is a highly sensitive radiation monitoring device designed for detecting beta, gamma, and X-ray radiation. With a measuring range of 0 to 9999 µSv/h and a resolution of 0.01 µSv/h, this environmental meter provides precise and real-time radiation monitoring.
It offers flexible display options in µSv/h, CPM, and CPS, with an easy-to-read TFT color screen. The built-in audible alarm alerts users when radiation levels exceed pre-set thresholds, making it an essential tool for environmental monitoring, radiation safety, and workplace compliance.
Specifications and Dimensions
Radiation Detection: Gamma, beta, and X-ray radiation
Measuring Range: 0 … 9999 µSv/h
Resolution: 0.01 µSv/h
Accuracy: ≤3 % of Rd
Energy Range: 20 … 3000 keV
Display: 1.8-inch TFT color screen
Alarm: Adjustable audible alarm
Interface: Micro-USB
Sensor: Geiger-Müller counter tube
Protection Class: IP54
Power Supply: 5V
Battery Capacity: 1100 mAh
Operating Conditions: 0 … 50 °C, 10 … 90% RH
Storage Conditions: -10 … 60 °C, 10 … 90% RH
Dimensions: 180 x 55 x 80 mm
Key Features and Benefits
Accurate detection of gamma, beta, and X-ray radiation
Adjustable alarm system for radiation level alerts
High-sensitivity Geiger-Müller counter tube for reliable measurements
Compact and portable design for convenient use in various settings
Ergonomic handle for comfortable operation
USB rechargeable battery with a fast 1-2 hour charging time
Graphical measurement curve display for real-time monitoring
Ideal for environmental monitoring, medical applications, and safety inspections
1 x PCE-RAM 7 Environmental Meter
1 x Micro USB Cable
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-RAM 7
