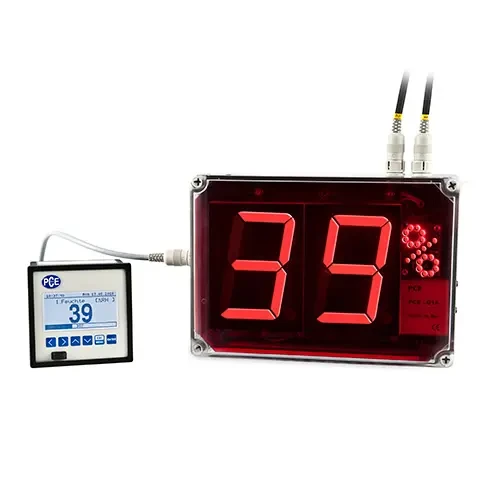

PCE Instruments Environmental Meter with Large Display and Analog Output (PCE-G1, PCE-G1A)
PCE Instruments Environmental Meter with Large LED Display is a stationary measuring device designed to monitor temperature and humidity in real-time. The large LED display features 100 mm tall digits, ensuring excellent visibility from up to 50 meters away. With an IP54-rated enclosure, this environmental meter is ideal for industrial settings, warehouses, laboratories, and public buildings.
The PCE-G1 environmental meter provides continuous monitoring with readings alternating every five seconds. Equipped with a capacitive humidity sensor and a Pt1000 temperature sensor, it ensures highly accurate measurements.
Specifications and Dimensions
Measurement Range (Humidity): 10 … 95 % RH
Measurement Range (Temperature): 0 … +60 °C
Resolution (Humidity): 1 % RH
Resolution (Temperature): 1 °C
Accuracy (Humidity): ±2 % RH
Accuracy (Temperature): ±1 °C
Visibility: Readable from approximately 50 m
Sensor Type: HC1000 (Humidity) / Pt1000 (Temperature)
Response Time (T90): Approximately 4 seconds
Sensor Cable Length: 1 m
Display: 100 mm high LED (alternating display every 5 seconds)
Analog Output: Two-channel 4-20 mA (passive)
Analog Output Scaling: Temperature (0 … 100 °C), Humidity (0 … 100 %)
Power Supply: 110V to 230V & 230 V / 50 … 60 Hz
Power Consumption: Approximately 20 mA
Dimensions (Sensor): 50 x 70 x 20 mm
Dimensions (Large Display): 175 x 175 x 75 mm
Ingress Protection: IP 54
Weight: 1.3 kg (including sensor and cable)
Key Features and Benefits
Large 100 mm LED display ensures visibility from up to 50 meters
Alternating display shows temperature and humidity every five seconds
IP54-rated enclosure protects against dust and moisture
Capacitive humidity sensor and Pt1000 temperature sensor for precise readings
Wall-mounted design for permanent installation
Two-channel analog output (4-20 mA) for data logging and integration
Reliable power supply through 230V AC connection
1 x Environmental Meter PCE-G1
1 x Sensor for temperature and humidity with connection cable
1 x Mains power cable
1 x 4-pin DIN connector
1 x Instruction manual
