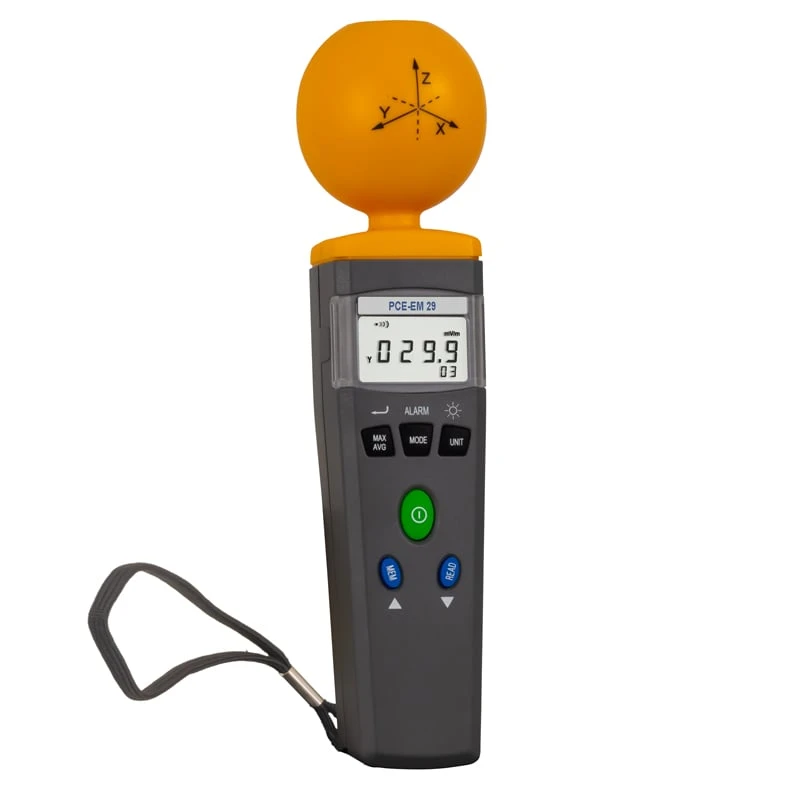

PCE Instruments Electromagnetic Radiation Detector (PCE-EM 29)
PCE Instruments Electromagnetic Radiation Detector (PCE-EM 29) is a portable, high-precision device designed to measure electromagnetic fields (EMFs) and radio frequencies (RFs). Equipped with a triaxial 3D isotropic sensor, this radiation detector provides accurate readings in a frequency range of 50 MHz to 3.5 GHz.
Ideal for monitoring power lines, wireless communication systems, and electronic devices, this EMF meter calculates average values and stores up to 99 readings for later reference.
Specifications and Dimensions
Frequency Range: 50 MHz to 3.5 GHz
Measurement Type: 3D isotropic, triaxial sensor
Measurement Range: 38 mV/m to 11 V/m
Accuracy: ±1.0 dB (50 MHz to 1.9 GHz), ±2.4 dB (1.9 GHz to 3.5 GHz)
Resolution: 0.1 mV/m, 0.1 µgA/m, 0.01 µgW/m²
Over Range Max Value: 4.2 W/m² (40 V/m)
Display: 4-digit LCD
Refresh Rate: Every 400ms
Units of Measurement: mV/m, V/m, µgA/m, mA/m, µgW/m², mW/m²
Response Time: 1s (up to 90% of value)
Deviation Due to Temperature: ±1.5 dB
Memory Storage: 99 readings
Power Supply: 9V battery
Weight: 350 g / 0.78 lb (with battery)
Key Features and Benefits
Triaxial isotropic sensor for accurate 3D EMF detection
Measures electromagnetic fields in the range of 50 MHz to 3.5 GHz
Adjustable alarm signals when EMF levels exceed set limits
1 x PCE-EM 29 Electromagnetic Radiation Detector
1 x Spherical Triaxial Sensor
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-EM 29
