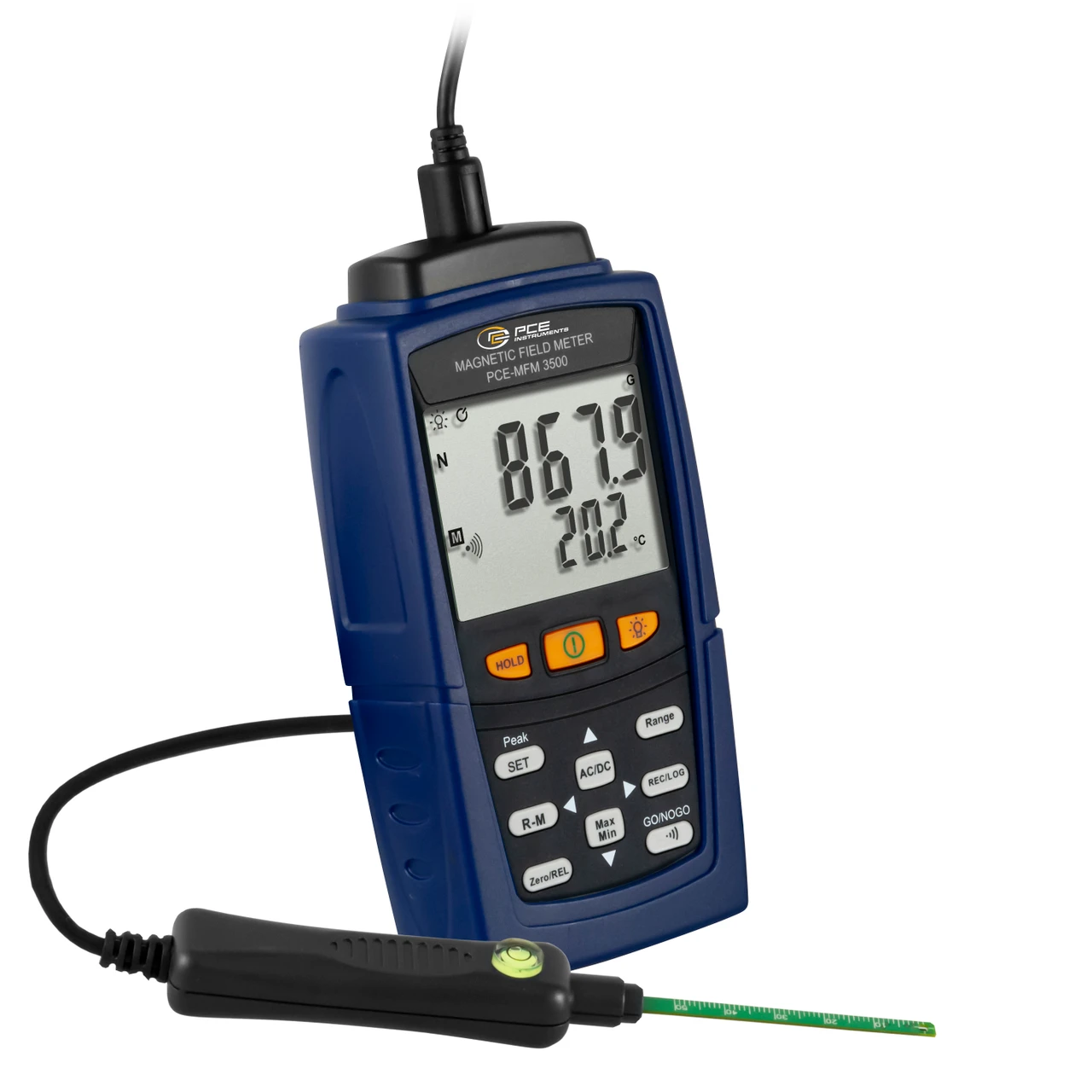

PCE Instruments Electromagnetic Field Meter (PCE-MFM 3500)
PCE Instruments Electromagnetic Field Meter (PCE-MFM 3500) is a high-precision measuring device for detecting both static (DC) and alternating (AC) magnetic fields. With a measuring range of up to 30,000 Gauss (G) or 3,000 milliTesla (mT), this EMF meter is suitable for testing permanent magnets, industrial machinery, and quality control applications.
The gauss meter features an integrated data storage function, capable of saving up to 7,000 readings automatically or 200 values manually. With the included USB interface and software, users can download, analyze, and monitor real-time data directly on a PC.
Specifications and Dimensions
DC Measurement Range: Up to 3,000 mT / 30,000 G
AC Measurement Range: Up to 1,500 mT / 15,000 G
Resolution: 0.01 mT / 0.1 G (low range), 0.1 mT / 1 G (high range)
Accuracy: ±4% + 10 digits (DC), ±5% + 20 digits (AC)
Frequency Range: 40 Hz – 500 Hz
Temperature Measurement Range: -20 … 50°C / -4 … 122°F
Display: 5-digit LCD screen, maximum display value 30,000
Storage Capacity: Manual (200 values) / Automatic (7,000 values)
Interface: Mini USB for PC connection
Sensor: Removable probe, cable length approx. 1 m / 3.3 ft
Battery Life: Approx. 100 hours
Power Supply: 6 x 1.5V AAA batteries or 100-240V AC power adapter
Operating Temperature: 5 … 40°C / 41 … 104°F
Device Dimensions: 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in
Weight: 320 g / < 1 lb (with batteries)
Key Features and Benefits
Detects both static (DC) and alternating (AC) magnetic fields
Large measuring range up to 30,000 Gauss (3,000 mT)
Adjustable alarm function warns of excessive field strength
Data storage for manual or automatic recording
USB interface allows for live monitoring and data transfer
Temperature measurement function for added versatility
Removable external probe for measurements in tight spaces
Battery or mains operation for portable and stationary use
1 x PCE-MFM 3500 Electromagnetic Field Meter
1 x External Probe
1 x Mini USB Cable
6 x AAA 1.5V Batteries
1 x Power Supply
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-MFM 3500
