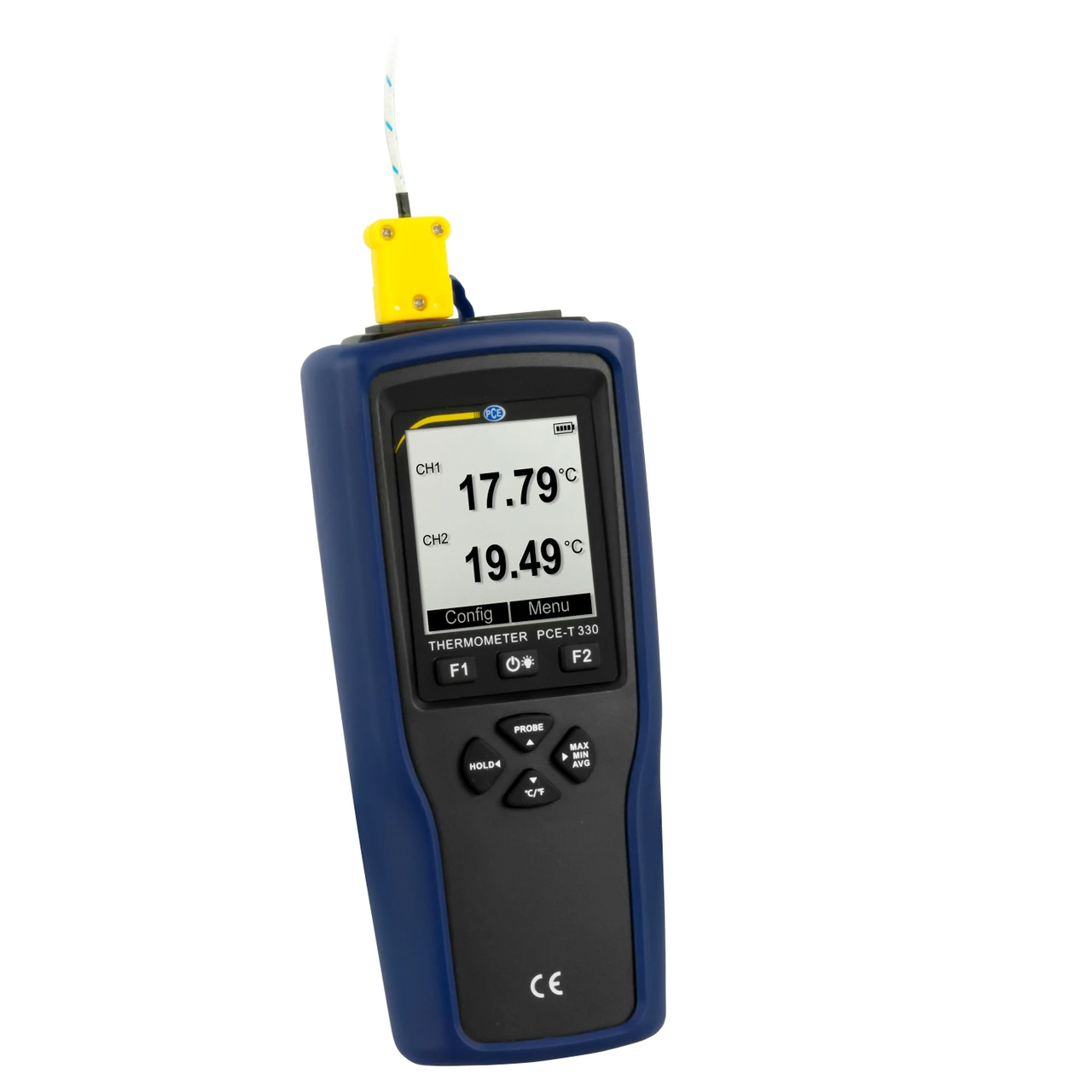

PCE Instruments Dual-Channel Thermometer with Data Logging (PCE-T 330)
PCE Instruments Thermometer (PCE-T 330) is a high-precision dual-channel data logging device designed for accurate temperature measurement using Type K, T, and J thermocouples. With a measuring rate of 2 Hz, it detects rapid temperature fluctuations, making it ideal for industrial applications, food processing, and scientific research.
This digital thermometer features a built-in data logger with a capacity of 20,000 measurements, allowing long-term monitoring without frequent data transfers. The stored data can be easily accessed through a USB connection and saved in multiple formats including TXT, CSV, and XLS.
Specifications and Dimensions
Temperature Range:
Type K: -200 … 1370 °C / -328 … +2498 °F
Type T: -200 … 400 °C / -328 … 752 °F
Type J: -200 … 1200 °C / -328 … 2192 °F
Resolution: 0.01 °C
Accuracy: ±0.3% of reading + 0.4 °C
Number of Channels: 2
Measuring Rate: 2 Hz
Data Storage: 20,000 data points (15,328 kB)
File Formats: TXT, CSV, XLS, DLG
Storage Interval: 1 … 86,399 seconds
Interface: Micro-USB
Battery Life: Approx. 190 hours
Power Supply: 3 x 1.2 V AAA rechargeable batteries or 3 x 1.5 V AAA batteries
Operating Conditions: -10 … 50 °C / 14 … 122 °F
Storage Conditions: -20 … 60 °C / -4 … +140 °F (without batteries)
Dimensions: 173 x 71 x 38 mm / 6.8 x 2.8 x 1.5 inches
Weight: 226 g / 7.9 oz
Key Features and Benefits
Dual-channel thermometer with data logging
Compatible with Type K, T, and J thermocouples
Real-time measurement with 2 Hz sampling rate
USB connectivity for easy data transfer
Stores up to 20,000 temperature readings
Long-lasting battery life (up to 190 hours)
Multi-format data storage: TXT, CSV, XLS, and DLG
Durable rubberized protective cover for rugged environments
1 x Thermometer PCE-T 330
1 x Type K Thermocouple
1 x Micro-USB Cable
3 x 1.5 V AAA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-T 330
