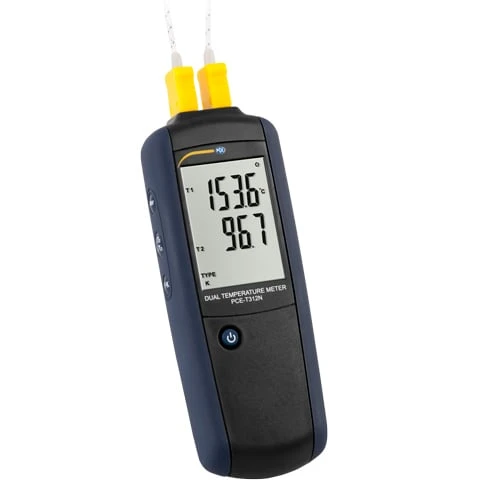

PCE Instruments Dual-Channel Digital Thermometer with Large LCD Display (PCE-T312N)
PCE Instruments Dual-Channel Digital Thermometer with Large LCD Display (PCE-T312N) is a versatile digital temperature measuring device with dual input capabilities. Designed for use with Type K and Type J thermocouples, it delivers precise temperature readings across a wide measurement range.
This digital thermometer is ideal for applications such as air conditioning, food production, chemical processing, and industrial monitoring. It features a large LCD display with backlighting, multiple display modes, and an automatic power-off function.
Specifications and Dimensions
Thermocouple Types: Type K and Type J
Temperature Range (Type K): -200 … 1372°C / -328 … 2501°F
Temperature Range (Type J): -210 … 1100°C / -346 … 2012°F
Measurement Units: °C, °F, K
Display: Large dual LCD with backlight
Display Functions: T1, T2, T1-T2, MAX, MIN, AVG
Power Supply: 3 x 1.5V AAA batteries
Automatic Shutdown: After 20 minutes of inactivity
Temperature Accuracy (> -100°C): ± [0.15% of reading +1°C (1.8°F)]
Temperature Accuracy (< -100°C): ± [0.5% of reading +2°C (3.6°F)]
Temperature Accuracy (T1-T2): ± [0.5% of reading +1°C (1.8°F)]
Operating Temperature: 0 … 50°C (4 … 122°F)
Storage Temperature: 10 … 50°C (14 … 122°F)
Key Features and Benefits
Dual-channel thermometer with simultaneous readings
Compatible with Type K and Type J thermocouples
Wide temperature range for various industrial applications
Backlit LCD for easy viewing in different lighting conditions
Electronic zero offset for accurate measurements
Compact design for easy one-handed operation
Stores maximum, minimum, and average temperature values
Automatic shut-off function to conserve battery life
1 x Thermometer PCE-T312N
2 x TF-500 Thermo-Wire Sensor
3 x 1.5V AAA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-T312N
