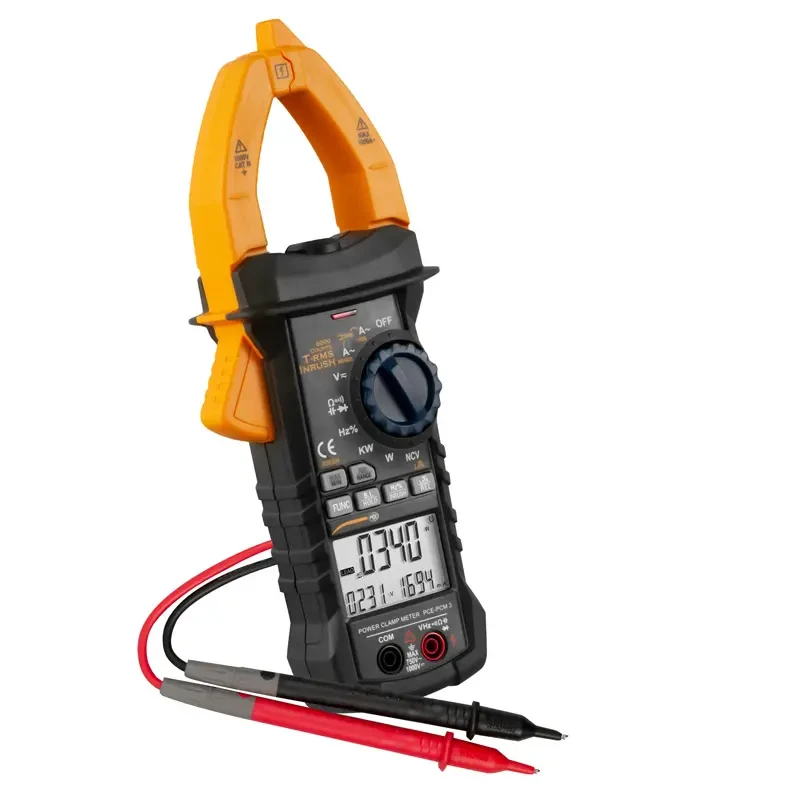

PCE Instruments Digital Voltmeter with True RMS and Bluetooth Interface (PCE-PCM 3)
PCE Instruments Digital Voltmeter with True RMS and Bluetooth Interface (PCE-PCM 3) is a high-performance digital meter designed for precise voltage and current measurements. It features True RMS measurement, Bluetooth connectivity, and inrush current detection, making it a versatile tool for electrical professionals.
This voltmeter allows for detailed analysis of single-phase electrical systems. The integrated NCV function enables non-contact voltage detection for added safety. Bluetooth connectivity ensures seamless data transfer for real-time monitoring and documentation.
Specifications and Dimensions
AC Current Measurement: 60 A / 600 A / 1000 A ±2% + 8 digits
Inrush Current: 60 A / 600 A / 1000 A ±5% + 60 digits
Voltage Measurement DC: 6V / 60V / 600V / 1000V ±0.5% + 5 digits
Voltage Measurement AC: 6V / 60V / 600V / 1000V ±0.6% + 4 digits
Frequency Measurement: 10 Hz – 10 kHz ±1.5% + 5 digits
Power Factor Measurement: 0.1 – 1 ±5% + 5 digits
Harmonic Measurement: Up to the 20th harmonic ±3% + 10 digits
Capacitance Measurement: 9.999 nF – 99.99 mF ±3% + 5 digits
Resistance Measurement: 600 Ω – 60 MΩ ±0.8% + 3 digits
Continuity Test: Acoustic signal below 50 Ω
Duty Cycle: 0.1 – 99.9% ±0.3% + 5 digits
Display: LCD screen with backlight
Power Supply: 9V block battery
Operating Conditions: 0 … 40°C (32 … 104°F)
Dimensions: 238 x 92 x 50 mm / 9.4 x 3.6 x 2 in
Weight: 420 g / <1 lb (with batteries)
Key Features and Benefits
True RMS measurement for accurate voltage and current readings
Measures inrush current for detecting high startup currents
Bluetooth interface for real-time data transfer and logging
NCV function for non-contact voltage detection
Measures apparent, active, and reactive power
Captures voltage and current harmonics up to the 20th order
Includes frequency, capacitance, and resistance measurement
Backlit LCD screen for clear readings in any environment
Compact and lightweight design for portability
1 x PCE-PCM 3 Voltmeter
1 x Transport Bag
1 x Test Lead Set
1 x 9V Block Battery
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PCM 3
