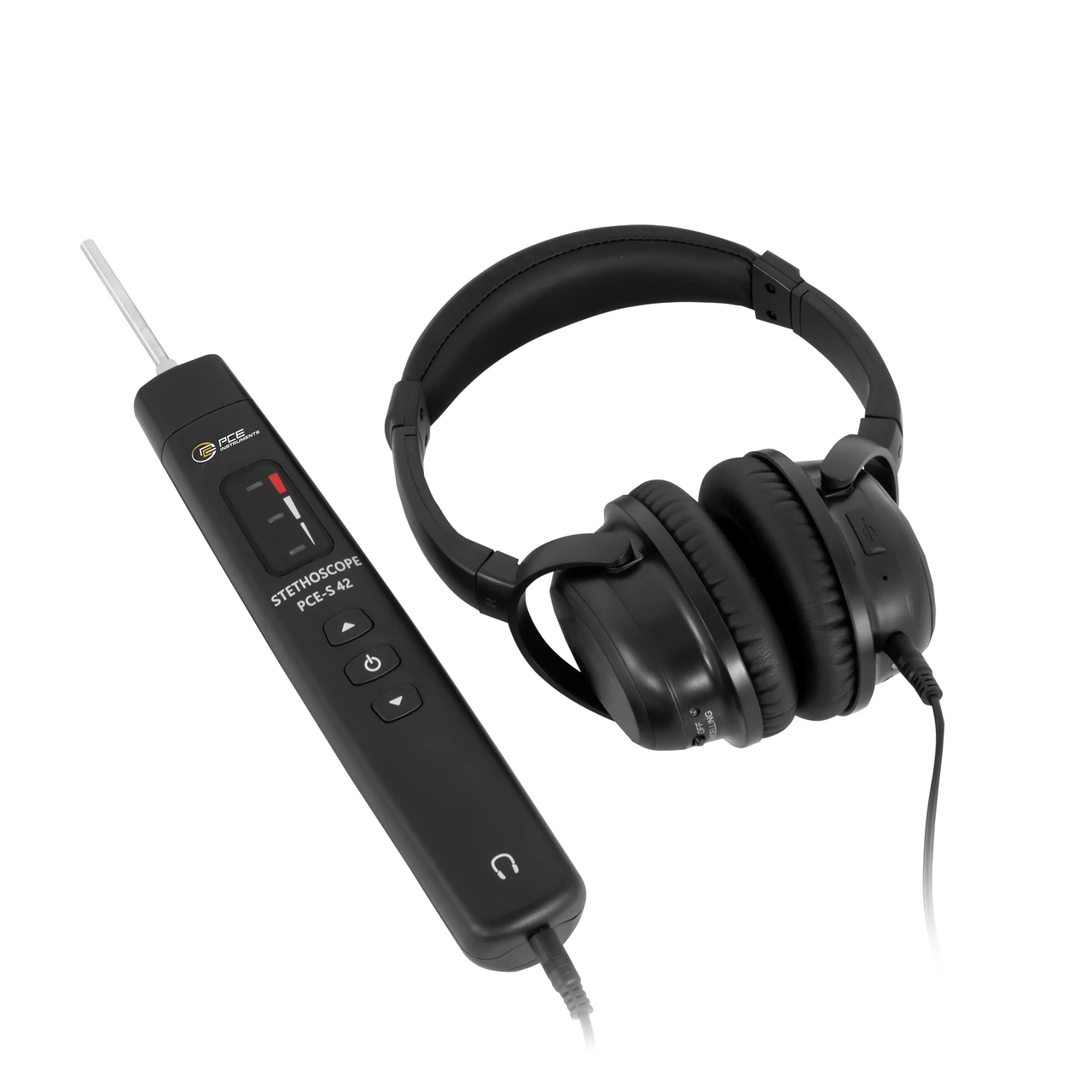

PCE Instruments Digital Vibration Analyzer with Noise-Suppressing Headphones (PCE-S 42)
PCE Instruments Digital Vibration Analyzer (PCE-S 42) is an essential tool for detecting abnormal sounds in machine components. This handheld stethoscope-style device helps maintenance teams identify early signs of wear or damage in motors, bearings, and other mechanical parts.
With 32 adjustable volume levels and highly sensitive measuring tips, this vibration analyzer effectively amplifies grinding and knocking noises that may indicate mechanical issues. The noise-suppressing headphones provide clear audio feedback, even in loud industrial environments, ensuring precise diagnostics during machine monitoring.
Specifications and Dimensions
Frequency Range: 30 Hz … 15 kHz
Operating Temperature: -10 … +40 °C
Output Volume: Digitally adjustable (32 levels)
Headphones: 32 Ω impedance
Power Supply: 4 x AAA batteries
Battery Life: 30 hours
Device Dimensions: 220 x 35 x 35 mm
Sensor Lengths: 70 mm / 280 mm
Key Features and Benefits
Detects abnormal sounds in machine components for preventive maintenance
Ideal for monitoring motors, gears, pumps, and other moving parts
Amplifies mechanical noises such as grinding, knocking, or vibrations
32 adjustable volume levels for enhanced precision
Includes noise-suppressing headphones for use in loud environments
Lightweight, ergonomic design for comfortable use during inspections
1 x Vibration Analyzer PCE-S 42
1 x Long Measuring Tip (280 mm)
1 x Short Measuring Tip (70 mm)
6 x AAA Batteries
1 x Carrying Case with Shoulder Strap
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-S 42
