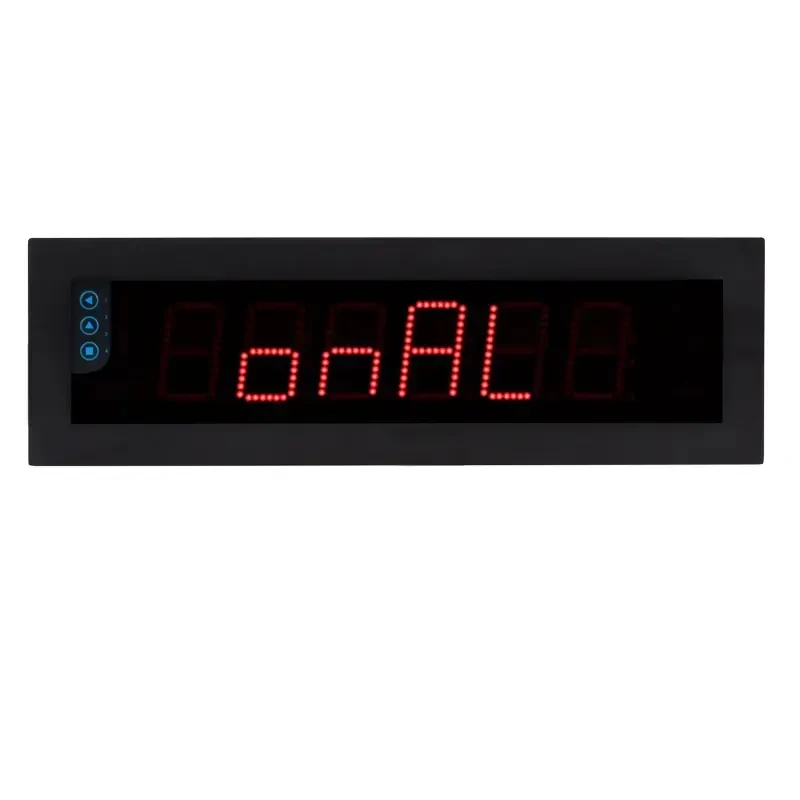

PCE Instruments Digital Universal Indicator (PCE-BPD-P-66A, PCE-BPD-P-66D)
PCE Instruments Digital Universal Indicator is designed for high-precision measurements and clear visibility in industrial environments. With a large LED display and IP65-rated metal housing, this universal indicator ensures durability and reliable performance in demanding conditions.
The PCE Instruments Digital Universal Indicator supports various input signals, including NPN and PNP, allowing flexible applications in process monitoring. The bright red LED display is easily readable from up to 25 meters, making it ideal for control panels, automation systems, and manufacturing facilities.
Specifications and Dimensions
Function: Converts frequency to a usable value
Input Signal: NPN, PNP
Input Voltage: ±30 V DC
Input Impedance: 2.4 kΩ with pull-up/down resistor, 470 kΩ without
Display: 7-segment LED with 6 digits
Digit Height: 60 mm / 2.3"
Maximum Reading Distance: 25 m / 82 ft
Accuracy: ±0.03% of measuring range
Measuring Rate: 3.5 Hz or 15 Hz
Response Time: 300 ms
Display Range: -199,999 to 999,999
Power Supply: 85 – 265 V AC / 120 – 370 V DC or 11 – 36 V DC
Power Consumption: 3.5 W (without accessories), 5.5 W (with accessories)
Sensor Voltage Supply: 18, 15, 9, 5 V DC
Maximum Sensor Current Supply: 70 mA (short-circuit protected)
Viewing Angle: 120°
Operating Conditions: 0 – 50 °C / 32 – 122 °F, <90% RH
Storage Conditions: -20 – 70 °C / -4 – 158 °F, <90% RH
Weight: 3500 g / 123.4 oz
Dimensions: 436 mm x 135 mm x 55 mm / 17.1" x 5.3" x 2.1"
Key Features and Benefits
High-visibility LED display for clear readings in bright environments
Durable metal housing with IP65 protection for harsh conditions
Supports multiple input signals for versatile applications
Configurable via keypad for customized settings
Wall or control cabinet mounting options for flexible installation
Fast response time for accurate and real-time data display
Ideal for industrial process monitoring and automation systems
Product identification
- Brand: PCE INSTRUMENTS
