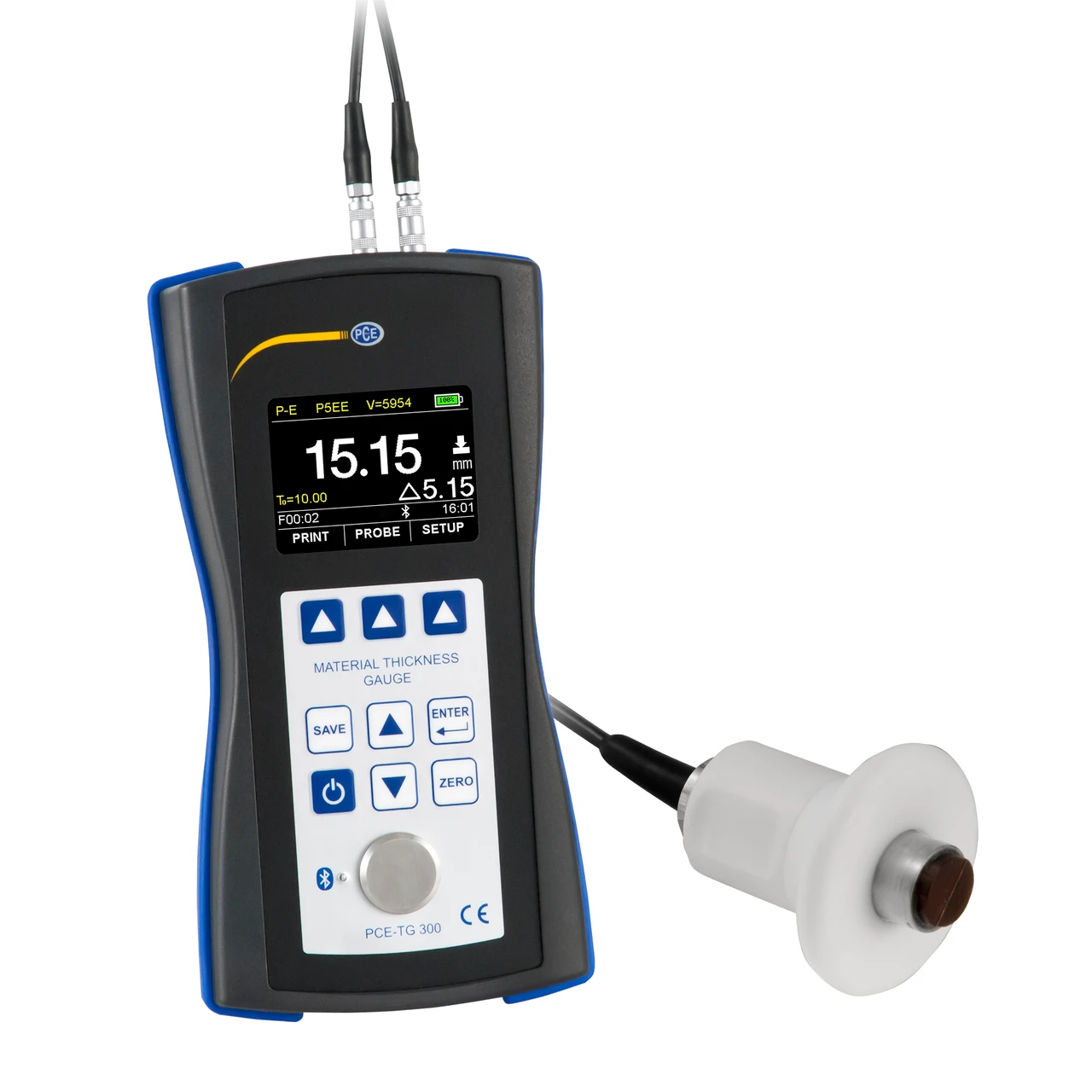

PCE Instruments Digital Thickness Meter with Large Measuring Range (PCE-TG 300-HT5)
PCE Instruments Digital Thickness Meter with Large Measuring Range (PCE-TG 300-HT5) is designed for measuring the thickness of various homogeneous materials with precision. Its pulse-echo and echo-echo modes provide accurate readings on metals, plastics, ceramics, and glass.
This digital thickness meter features an easy-to-read TFT color display, multiple calibration modes, and Bluetooth printing for quick data transfer. The device also has a non-volatile memory storing up to 100 data groups, making it ideal for industrial inspections and quality control applications.
Specifications and Dimensions
Measuring Range (P-E Mode): 0.65 – 600mm (Steel)
Measuring Range (E-E Mode): 2.50 – 100mm (Only with PCE-TG 300-P5EE Sensor)
Accuracy: ±0.04mm (<10mm), ±0.4% H (>10mm)
Resolution: 0.1mm / 0.01mm / 0.001mm (Adjustable)
Memory: Stores 100 data groups with 100 sets each
Power Supply: 4 x AA batteries (1.5V)
Display: 320 x 240 pixels TFT LCD color display
Operating Conditions: 0°C – 50°C (≤80% RH non-condensing)
Dimensions: 185 x 97 x 40mm
Key Features and Benefits
Measures thickness of metals, plastics, ceramics, and glass
Pulse-echo and echo-echo modes for versatile applications
Calibration options: sound velocity, zero, and two-point
Bluetooth printing and USB data transfer for easy documentation
Detects voids and defects in materials using ultrasonic technology
Battery-powered with up to 100 hours of continuous operation
High-temperature sensor (max 300°C / 572°F) for industrial use
1 x Thickness Meter PCE-TG 300-HT5
1 x High-Temperature Sensor PCE-TG-HT5
1 x 100ml Coupling Gel
1 x Transport Case
4 x AA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-TG 300-HT5
