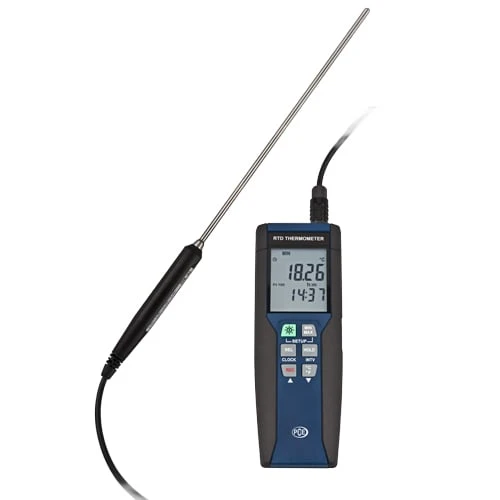

PCE Instruments Digital Thermometer with Data Logger and Pt100 Sensor (PCE-HPT 1)
PCE Instruments Digital Thermometer with Data Logger and Pt100 Sensor (PCE-HPT 1) is a high-precision 1-channel temperature measuring device designed for industrial and laboratory applications. It supports a 4-wire Class A Pt100 sensor, ensuring fast response times and superior accuracy. The thermometer measures temperatures ranging from -100 to 400 ºC.
Equipped with an internal data logger, USB connectivity, and software for real-time data transmission, this thermometer allows seamless data recording and analysis. Its backlit LCD display enhances readability, while the automatic shutdown and data-hold functions improve efficiency.
Specifications and Dimensions
Measurement range: -100 … 400 °C / -148 … 752 °F
Accuracy: ±0.05% + 0.1 °C / 0.18 °F (between 18 … 28 °C / 64.4 … 82.4 °F)
Resolution: 0.01 °C / 0.018 °F
Sensor: Class A, 4-wire Pt100 sensor
Display: 5-digit LCD
Data transmission: USB
Data memory: Up to 5000 measuring points
Reproducibility: One measurement every 0.5 seconds
Power supply: 1 x 9V battery or optional network adapter
Device dimensions: 185 x 65 x 36 mm / 7.3 x 2.6 x 1.4 in
Sensor dimensions: 235 x 5 mm / 9.25 x 0.19 in
Handle length: 123 mm / 4.84 in
Connection cable: 1.5 m / 4.9 ft
Weight: 360 g / < 1 lb
Operating conditions: 0 … 50 °C / 32 … 122 °F, 80% R.H.
Storage conditions: -10 … 60 °C / 14 … 140 °F, 80% R.H.
Key Features and Benefits
High-precision Pt100 sensor for accurate temperature readings
Internal data logger stores up to 5000 measurement points
USB connectivity for real-time data transfer and analysis
Large backlit LCD display for easy readability
Automatic shutdown and data-hold function for energy efficiency
Selectable temperature units (°C / °F) for flexible measurement
Durable construction suitable for industrial and laboratory applications
1 x Thermometer PCE-HPT 1
1 x Pt100 sensor
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HPT 1
