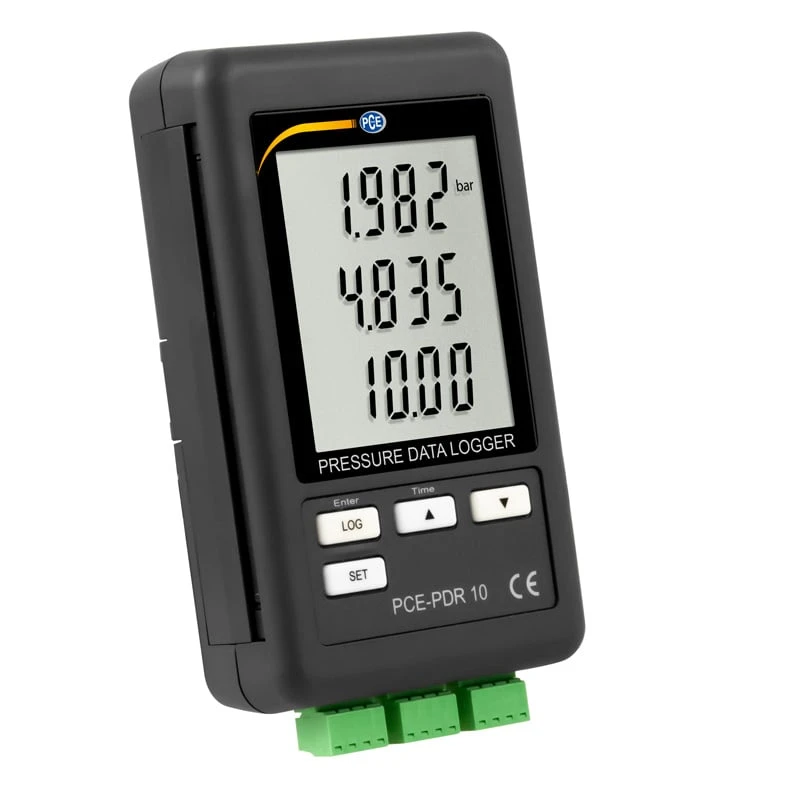

PCE Instruments Digital Pressure Data Logger with Multi-Sensor Support (PCE-PDR 10)
PCE Instruments Digital Pressure Data Logger with Multi-Sensor Support (PCE-PDR 10) is a professional device designed for precise pressure monitoring and data logging. Capable of connecting up to three pressure sensors simultaneously, this device ensures accurate pressure readings and efficient data collection for various applications.
The advanced storage system records only significant pressure changes, optimizing memory usage. With an SD card slot supporting up to 16GB and RS232 connectivity, data transfer and analysis are seamless. This pressure data logger provides reliable and accurate performance.
Specifications and Dimensions
Measuring Range: 4 … 20-mA, linear
Measurement Accuracy: ± (0.5% + 2d)
Measuring Rate: 1 second
LC Display: 60 x 50 mm
Save Interval: 5, 10, 30, 60, 120, 300, 600 seconds, auto
Storage System: Auto mode records only significant changes (±10 digits)
Memory Capacity: Supports SD cards from 1GB to 16GB
Data Outputs: RS232
Power Supply (Adapter): 9V DC
Power Supply (Battery): 6 x AAA batteries (for clock display)
Operating Conditions: 0 … 50°C / 32 … 122°F, <85% RH
Device Dimensions: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in
Weight: 199 g / <1 lb
Key Features and Benefits
Supports up to three pressure sensors for simultaneous measurement
Advanced memory system filters out redundant data, optimizing storage
Connects to a PC via RS232 for easy data analysis
SD card slot supports up to 16GB for extended logging
Wall-mountable for fixed installations or use with the included stand
Battery or mains operation for flexible usage
Clear LCD display for easy reading of pressure values
Ideal for industrial, agricultural, and environmental monitoring applications
1 x PCE-PDR 10 Pressure Data Logger
1 x 9V 1.0A Power Supply
6 x AAA Batteries
1 x Wall Mounting Bracket
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PDR 10
