Ph meter pce instruments details

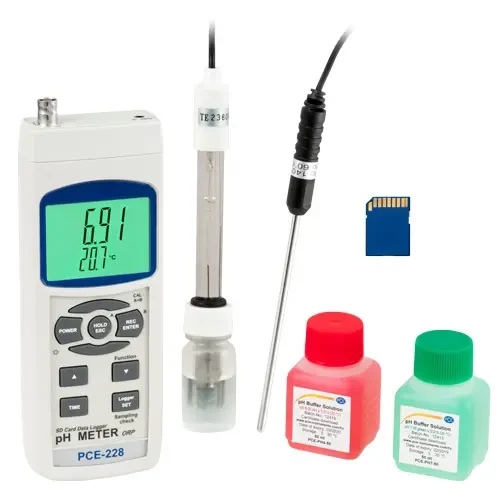

PCE Instruments Digital pH Meter Kit (PCE-228-Kit)
PCE Instruments Digital pH Meter Kit (PCE-228-Kit) is a complete solution for measuring pH, redox potential (ORP), and temperature in both laboratory and field settings. This kit includes a high-precision digital pH meter, a PE-03 electrode, a temperature sensor, an SD memory card, and a calibration solution, ensuring accurate and reliable results.
It features automatic three-point calibration, allowing users to maintain high measurement accuracy. With an integrated SD card slot, data is stored directly in Excel format for easy analysis.
Specifications and Dimensions
pH Measurement Range: 0.00 … 14.00 pH
Redox Measurement Range: -1999 … 1999 mV (with optional ORP electrode)
Temperature Measurement: 0.0 … 65.0 °C / 32 … 149 °F
Resolution: 0.01 pH, 1 mV, 0.1°C
Accuracy: ±(0.02 pH + 2 digits), ±(0.5% + 2 digits) mV, ±0.5°C
Temperature Compensation: Automatic (0 – 65°C) or manual (0 – 100°C)
Data Storage: SD card memory (1 – 16 GB, 2 GB included)
Interface: RS-232 for PC connection
Power Supply: 6 x 1.5V AA batteries or optional 9V adapter
Operating Temperature: 0 … 50°C / 32 … 122°F
Dimensions: 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight: 490 g / 1.1 lb
Key Features and Benefits
Complete kit includes pH meter, electrode, calibration solution, and SD card
Stores data directly onto an SD card in Excel format for easy analysis
Automatic three-point calibration ensures high measurement accuracy
Large LCD display with easy-to-read pH, redox, and temperature values
1 x PCE-228 pH Meter
1 x PE-03 Electrode
1 x SD Memory Card (2 GB)
1 x Calibration Solution
1 x Stainless Steel Temperature Sensor
6 x AA Batteries
1 x Protective Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-228-Kit
Digital ph meter: see the listed specifications for this model.
