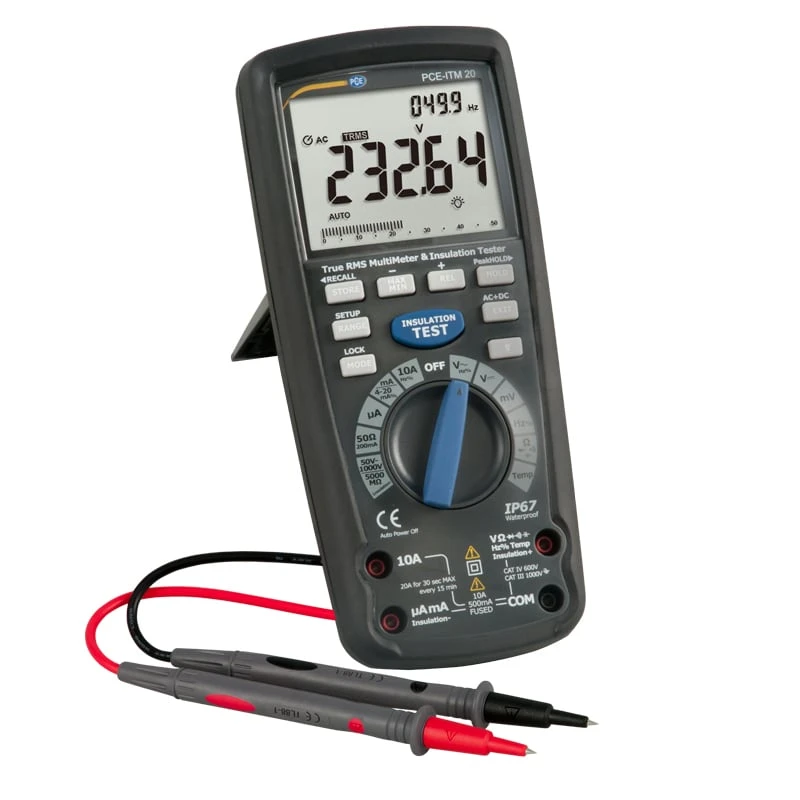

PCE Instruments Digital Multimeter with Insulation Tester (PCE-ITM 20)
PCE Instruments Digital Multimeter (PCE-ITM 20) is a multifunctional measuring device that combines a high-precision multimeter with an insulation tester. It provides accurate readings for voltage, current, resistance, and capacitance while also offering temperature and frequency measurement, making it ideal for industrial and laboratory applications.
The device features automatic range selection, a large backlit LCD, and an internal memory for storing up to 9999 readings. The built-in wireless USB interface enables seamless data transfer to a PC for further analysis.
Specifications and Dimensions
Test Voltage: 50V, 125V, 250V, 500V, 1000V
Insulation Resistance: Up to 5000 MΩ
Voltage Measurement: AC/DC up to 1000V
Current Measurement: Up to 10A
Capacitance Measurement: 50nF to 10mF
Frequency Range: 40Hz to 100MHz
Temperature Measurement: -58 … 2462°F (-50 … 13350°C)
Display: 50,000-digit LCD with bar graph
Interface: Wireless USB
Power Supply: 6 x 1.5V AA batteries
Safety Category: CAT IV 600V, CAT III 1000V
Housing: IP67 (waterproof and dustproof)
Dimensions: 220 x 95 x 50 mm (8.6 x 3.7 x 1.9 in)
Weight: Approx. 720 g (1.6 lbs)
Key Features and Benefits
Combination of digital multimeter and insulation tester for enhanced functionality
Measures voltage, current, resistance, capacitance, and frequency with high accuracy
Insulation testing with voltages up to 1000V for safety inspections
Wireless USB interface for convenient data transfer and analysis
Rugged IP67 waterproof housing for durability in industrial environments
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-ITM 20
