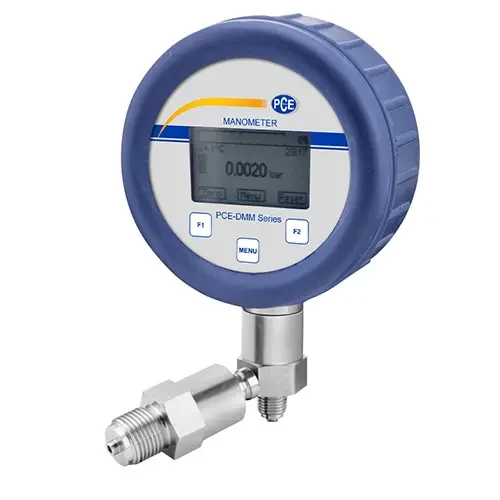

PCE Instruments Digital Manometer (PCE-DMM 10)
PCE Instruments Digital Manometer (PCE-DMM 10) is a high-precision pressure measuring device designed for fuel, oil, and gas applications. Equipped with a 4.5-digit LCD display, this compact instrument provides highly accurate readings with a measuring rate of 1 per second.
Built with a stainless steel pressure connection and a ceramic diaphragm, this digital manometer ensures long-term stability and durability. The device features an IP65-rated casing, making it resistant to dust and water. Its battery life supports approximately 1500 hours of continuous operation.
Specifications and Dimensions
Accuracy: < ± 0.5% FSO
Measuring Rate: 1 reading per second
Long-Term Stability: < ± 0.3% FSO
Temperature Sensor Accuracy: < ± 0.5% FSO
Compatible Media: Fuel, oils, gases
Operating Temperature: -25°C to 85°C (-13°F to 185°F)
Environment Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: 0°C to 70°C (32°F to 158°F)
Pressure Connection: Stainless steel 1.4301
Diaphragm: Ceramic AL2O3 96%
Display: 4.5-digit LCD
Power Supply: 3V Lithium battery (CR2450)
Battery Life: Approx. 1500 hours
Protection Rating: IP65
Process Connection Options: 1/4" DIN 3852 or 1/4" NPT
Key Features and Benefits
Highly accurate pressure measurement with 4.5-digit LCD display
Stainless steel construction for durability and corrosion resistance
Designed for fuel, oil, and gas pressure applications
IP65-rated protection against dust and water
Long battery life of approximately 1500 hours for extended use
Compact and lightweight design for easy portability
Selectable process connections for different industry standards
1 x Digital Manometer (PCE-DMM 10)
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DMM 10
