Digital magnetometer details

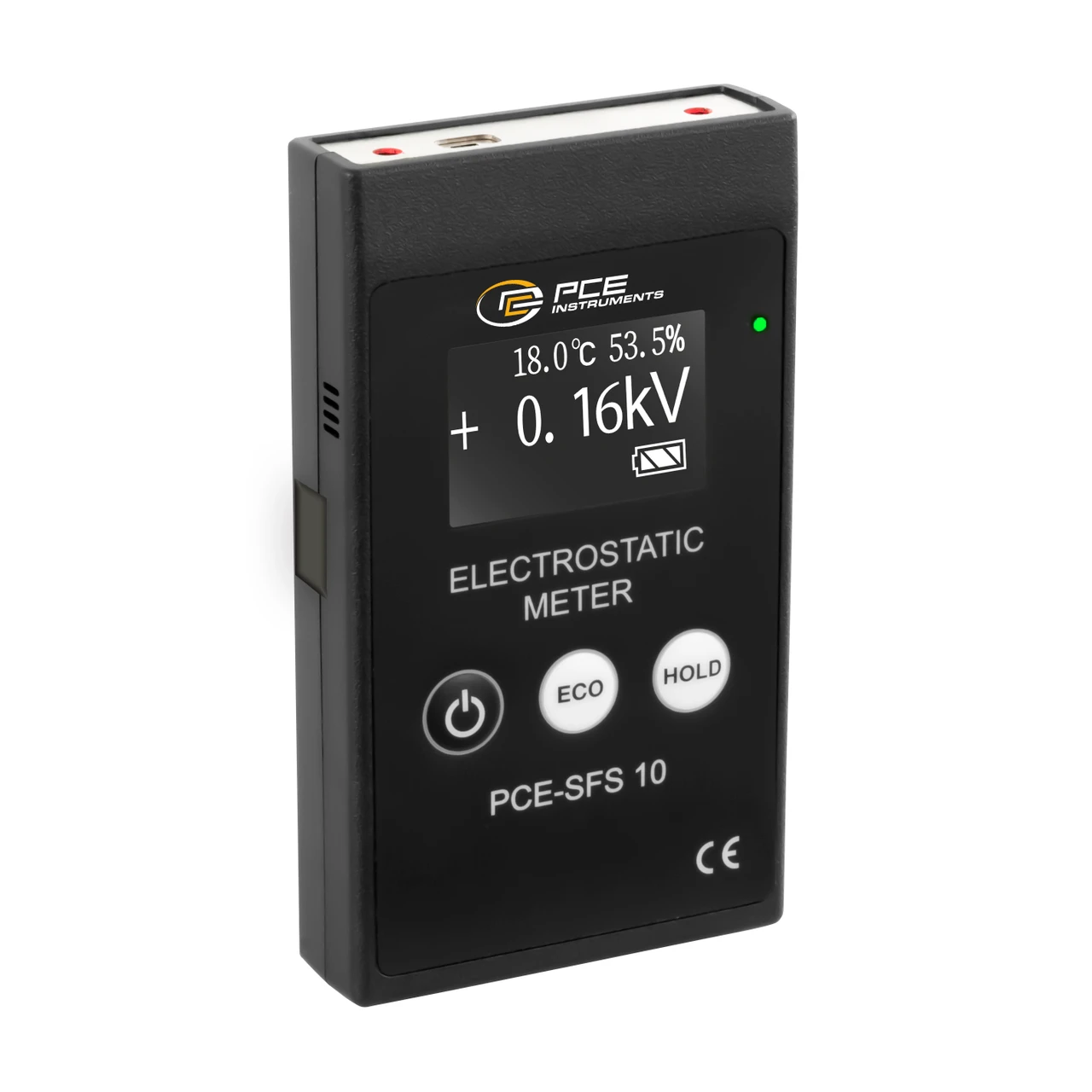

PCE Instruments Digital Magnetometer (PCE-SFS 10)
PCE Instruments Digital Magnetometer (PCE-SFS 10) is designed for measuring electrostatic charges on surfaces, components, and the human body. With a wide measurement range of ±60 kV DC, this device helps prevent potential damage to electronic components and reduces the risk of fire hazards in environments with flammable gases and liquids.
It also measures temperature and humidity, making it a versatile tool for ESD-protected workshops, laboratories, and industrial applications. With a battery life of up to 20 hours, this meter ensures reliable and continuous monitoring.
Specifications and Dimensions
Electromagnetic Field Measurement Range: ±60 kV DC
±20 kV DC: 0.01 kV DC
-60 … -20 kV DC / +20 … +60 kV DC: 0.1 kV DC
Accuracy: ±5% of measured value
Temperature Measurement Range: -40 … 123.8 °C / -40 … 254.8 °F
Temperature Resolution: 0.1 °C
Temperature Accuracy: ±1.5 °C
Humidity Measurement Range: 0 … 100% RH
Humidity Resolution: 0.1% RH
Humidity Accuracy: ±4.5% RH
Response Time: <100 ms
Five seconds before automatic shutdown
When measurement range is exceeded
Automatic Shutdown: After 5 minutes
Power Supply: 9V block battery
Battery Life: >20 hours
Operating Conditions: 0 … 40°C / 32 … 104°F, 0 … 60% RH, non-condensing
Dimensions: 123 x 70.4 x 21.5 mm / 4.8 x 2.7 x 0.84"
Weight: 147 g / 5.1 oz
Key Features and Benefits
Accurate electrostatic charge and electromagnetic field measurement
Wide measurement range of ±60 kV DC
Laser alignment system for precise sensor positioning
Measures temperature and humidity for comprehensive analysis
Acoustic alarm alerts for measurement thresholds
Long battery life up to 20 hours for extended usage
Easy-to-read digital display with quick response time
Automatic shutdown to preserve battery life
1 x Magnetometer PCE-SFS 10
1 x Earthing cable
1 x Carrying bag
1 x 9V block battery
1 x Instruction manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SFS 10
