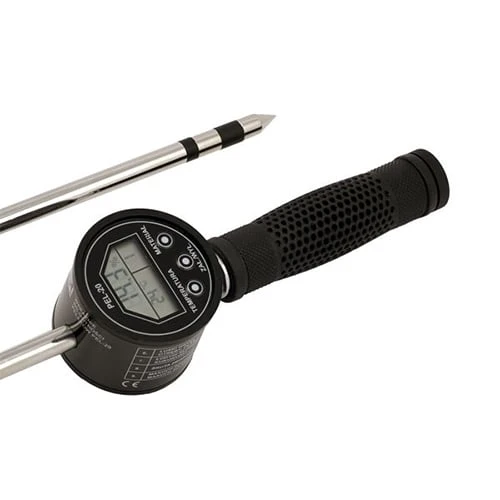

PCE Instruments Digital Humidity Detector for Biomass and Pellets (PCE-PEL 20)
PCE Instruments Digital Humidity Detector (PCE-PEL 20) is a precise and easy-to-use device designed for measuring the moisture content in biomass and pellets. Its 1000 mm stainless steel probe ensures deep penetration for accurate readings, making it ideal for use in biomass power plants, storage facilities, and agricultural applications.
The detector operates using resistance moisture detection, providing fast results on its LCD screen. With a measuring range of 10% to 20% moisture content, this device helps optimize heating efficiency by ensuring the correct moisture levels in biomass materials.
Specifications and Dimensions
Measuring Range: 10% – 20%
Resolution: 0.1%
Response Time: Approx. 3 sec.
Temperature Compensation: Manual, 0 … +50°C / 32 … 122°F
Measuring Sensor: Ø 10 mm x 1000 mm stainless steel probe
Display: LCD screen
Power Supply: 12V battery type 23A
Battery Life: Approx. 10,000 measurements
Automatic Power Off: After approx. 10 minutes
Carrying Case Dimensions: Ø 80 mm x 1250 mm / 3.1 x 49.2 in
Weight: Approx. 900 g / 31.7 oz
Key Features and Benefits
Measures pellet and biomass moisture with high accuracy
Simple operation with resistance-based moisture detection
1000 mm probe for deeper penetration and reliable readings
Quick response time for fast results
Battery-powered for portable use in different environments
Automatic shut-off feature to extend battery life
Compact carrying case included for easy transport and storage
1 x PCE-PEL 20 Humidity Detector
1 x 12V Battery (Type 23A)
1 x Instruction Manual
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PEL 20
