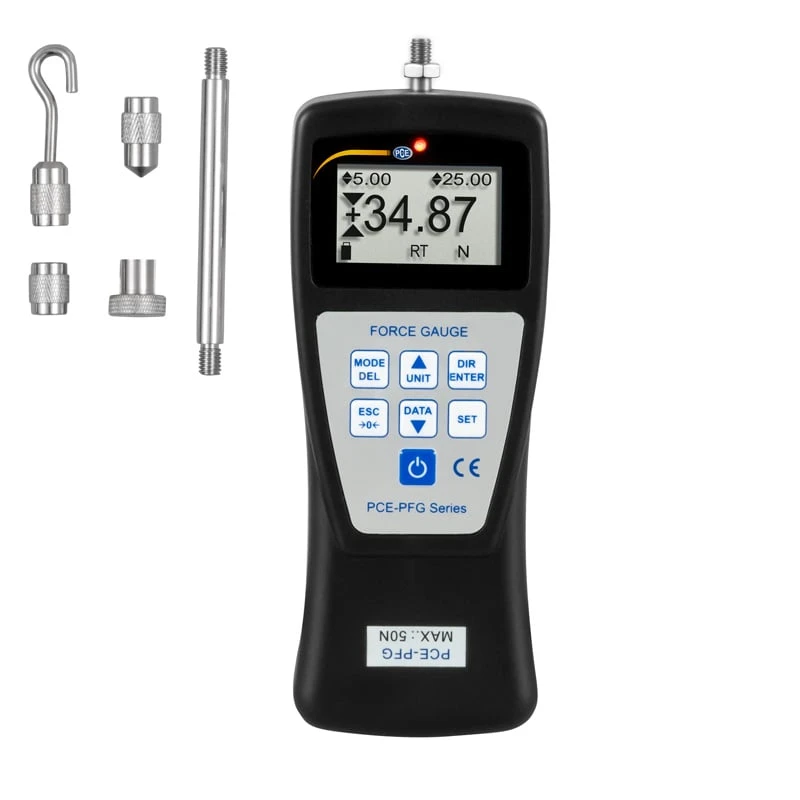

PCE Instruments Digital Force Gauge with USB Data Transfer and Load Cell (PCE-PFG 50)
PCE Instruments Digital Force Gauge with USB Data Transfer and Load Cell (PCE-PFG 50) is a high-precision digital force measurement device designed for tensile and compressive force testing. Equipped with an internal S load cell, this force gauge ensures accurate and repeatable measurements, making it ideal for quality control, research, and industrial testing applications.
With a fast sampling rate of 500 Hz, the device supports multiple measurement modes, including real-time, peak value, and automatic memory storage. This durable and portable force gauge is a reliable tool for both laboratory and on-site testing.
Specifications and Dimensions
Measuring Range: 0 … 50 N
Resolution: 0.01 N
Accuracy: ±0.3% of the measuring range
Measurement Units: N, kgF, lbF
Sampling Rate: 500 Hz
Memory: Stores up to 100 measurements
Display: 1.8" rotatable graphic display
Battery Life: Up to 36 hours per charge
Power Supply: Lithium battery 3.7 V / 1500 mAh
USB Interface: USB B for data transfer
Switching Output: MD6 with 2.85 V activation
Protection Class: IP 54
Operating Conditions: 5 … 45°C / 35 … 65% r.H. (non-condensing)
Force Application: M6 x 10 mm thread
Dimensions: 189 x 70 x 34 mm
Key Features and Benefits
High-precision force gauge for tensile and compressive force measurement
Internal S load cell ensures accuracy and reliability
Multiple measurement modes, including peak, real-time, and automatic storage
Rotatable display for convenient viewing from any angle
USB connectivity for quick and easy data transfer to a PC
Stores up to 100 measurements for efficient data management
Alarm function with multi-colored LED (yellow/green/red) for real-time feedback
Long battery life with up to 36 hours of continuous operation
Durable carrying case included for safe transport and storage
1 x PCE-PFG 50 Force Gauge
1 x Flat Head Adapter Ø13 mm
1 x Pointed Head Adapter
1 x Hook Adapter
1 x Extension Rod (75 mm)
1 x Instruction Manual
1 x Plastic Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PFG 50
