PCE Instruments Digital Force Gauge with Rotatable Display (PCE-PFG 500)
PCE Instruments Digital Force Gauge with Rotatable Display (PCE-PFG 500) is a high-precision device designed to measure tensile and compressive forces with exceptional accuracy. Equipped with an internal S load cell, it ensures reliable measurements for laboratory testing, industrial applications, and quality control processes.
This force gauge offers real-time measurement, peak value detection, and automatic storage of up to 100 measurements. The rotatable display provides flexibility for various testing environments, while the USB interface enables seamless data transfer to a PC.
Specifications and Dimensions
Measuring Range: 0 … 500 N
Resolution: 0.1 N
Accuracy: ±0.3% of the measuring range
Measurement Units: N, kgF, lbF
Sampling Rate: 500 Hz
Memory: Stores up to 100 measurements
Display: 1.8" rotatable graphic display
Battery Life: Up to 36 hours per charge
Power Supply: Lithium battery 3.7 V / 1500 mAh
USB Interface: USB B for data transfer
Switching Output: MD6 with 2.85 V activation
Protection Class: IP 54
Operating Conditions: 5 … 45°C / 35 … 65% r.H. (non-condensing)
Force Application: M6 x 10 mm thread
Dimensions: 189 x 70 x 34 mm
Key Features and Benefits
Precise measurement of tensile and compressive forces
Internal S load cell ensures high accuracy and repeatability
Multiple measurement modes including real-time, peak, and automatic storage
Rotatable display for convenient viewing in any orientation
USB interface for quick data transfer to a PC
Stores up to 100 measurements for efficient data management
Multi-colored LED alarm system for real-time feedback
Long battery life with up to 36 hours of continuous operation
Durable carrying case included for safe storage and transport

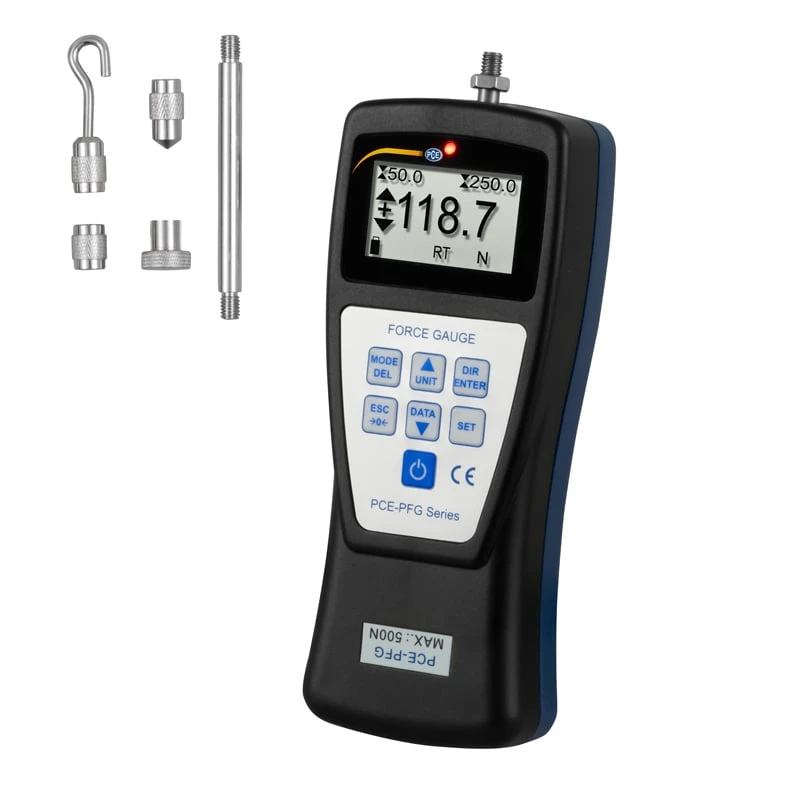

1 x PCE-PFG 500 Force Gauge
1 x Flat Head Adapter Ø13 mm
1 x Pointed Head Adapter
1 x Hook Adapter
1 x Extension Rod (75 mm)
1 x Instruction Manual
1 x Plastic Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PFG 500
Digital force gauge: see the listed specifications for this model.
